text version of content this owner's manual page from owners manual to the vehicle VW Tiguan, year of production 2011:
x Securely store the compact spare wheel or the wheel you took off the vehicle in the luggage
compartment.
x Have the wheel bolt tightening torque immediately checked with a torque wrench⇒ Wheel bolts.
x Have the damaged wheel replaced as soon as possible.
The Tire Pressure Monitoring System must be “recalibrated” after each tire change ⇒ Tire
Pressure Monitoring System (TPMS).
Removing Fender Premium Audio subwoofer

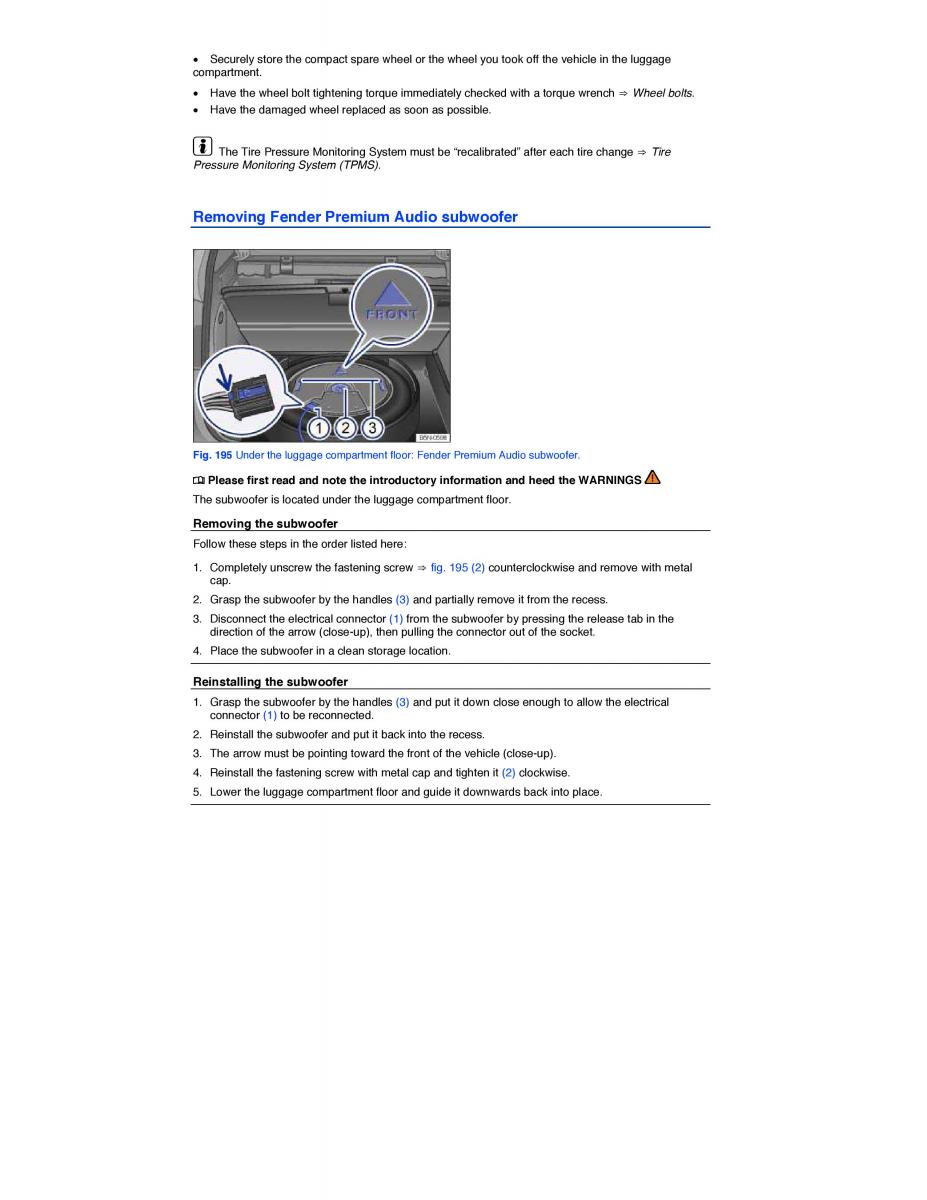

Fig. 195 Under the luggage compartment floor: Fender Premium Audio subwoofer.
¤ Please first read and note the introductory information and heed the WARNINGS
The subwoofer is located under the luggage compartment floor.
Removing the subwoofer
Follow these steps in the order listed here:
1. Completely unscrew the fastening screw ⇒ fig. 195 (2) counterclockwise and remove with metal
cap.
2. Grasp the subwoofer by the handles (3) and partially remove it from the recess.
3. Disconnect the electrical connector (1) from the subwoofer by pressing the release tab in the
direction of the arrow (close-up), then pulling the connector out of the socket.
4. Place the subwoofer in a clean storage location.
Reinstalling the subwoofer
1. Grasp the subwoofer by the handles (3) and put it down close enough to allow the electrical
connector (1) to be reconnected.
2. Reinstall the subwoofer and put it back into the recess.
3. The arrow must be pointing toward the front of the vehicle (close-up).
4. Reinstall the fastening screw with metal cap and tighten it (2) clockwise.
5. Lower the luggage compartment floor and guide it downwards back into place.
