text version of content this owner's manual page from owners manual to the vehicle Chevrolet Silverado, year of production 1998 - 2006:

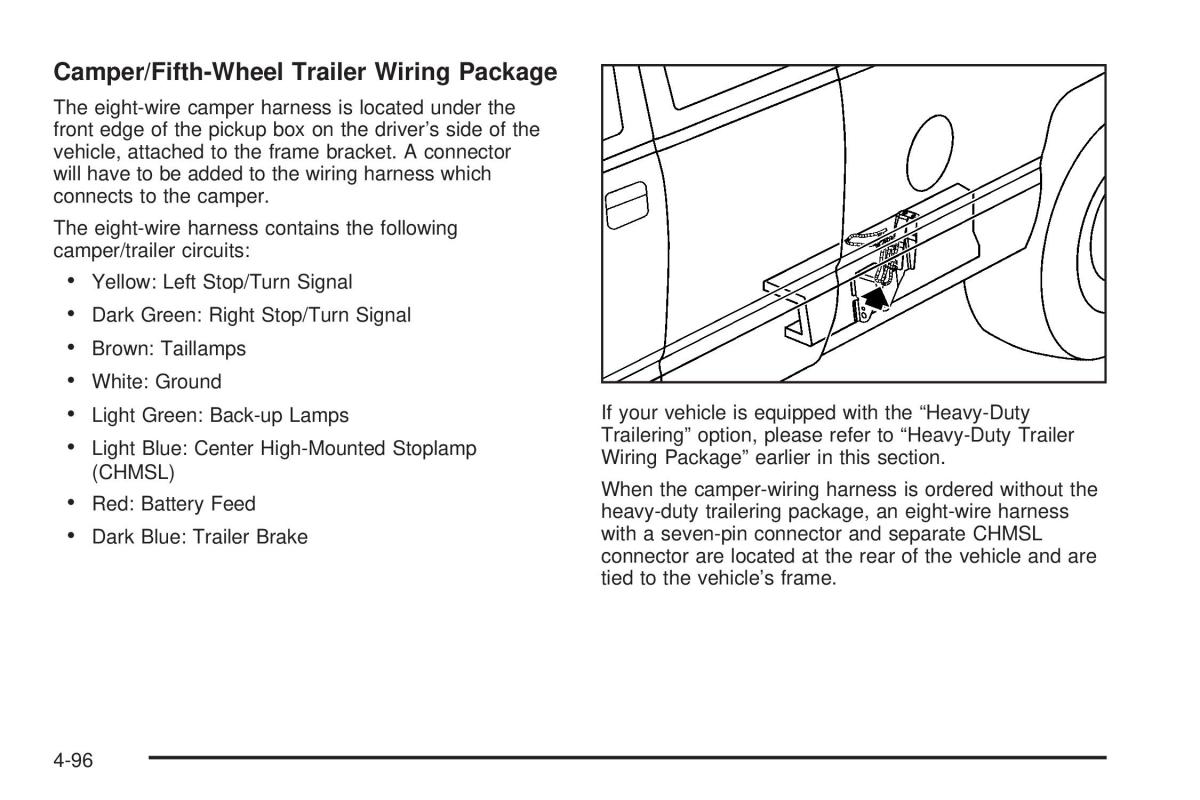

Camper/Fifth-Wheel Trailer Wiring Package The eight-wire camper harness is located under the front edge of the pickup box on the driver’s side of the vehicle, attached to the frame bracket. A connector will have to be added to the wiring harness which connects to the camper. The eight-wire harness contains the following camper/trailer circuits: • Yellow: Left Stop/Turn Signal • Dark Green: Right Stop/Turn Signal • Brown: Taillamps • White: Ground • Light Green: Back-up LampsIf your vehicle is equipped with the “Heavy-Duty • Light Blue: Center High-Mounted StoplampTrailering” option, please refer to “Heavy-Duty Trailer (CHMSL) Wiring Package” earlier in this section. • Red: Battery Feed When the camper-wiring harness is ordered without the heavy-duty trailering package, an eight-wire harness • Dark Blue: Trailer Brake with a seven-pin connector and separate CHMSL connector are located at the rear of the vehicle and are tied to the vehicle’s frame. 4-96
