text version of content this owner's manual page from owners manual to the vehicle Chevrolet Silverado, year of production 1998 - 2006:

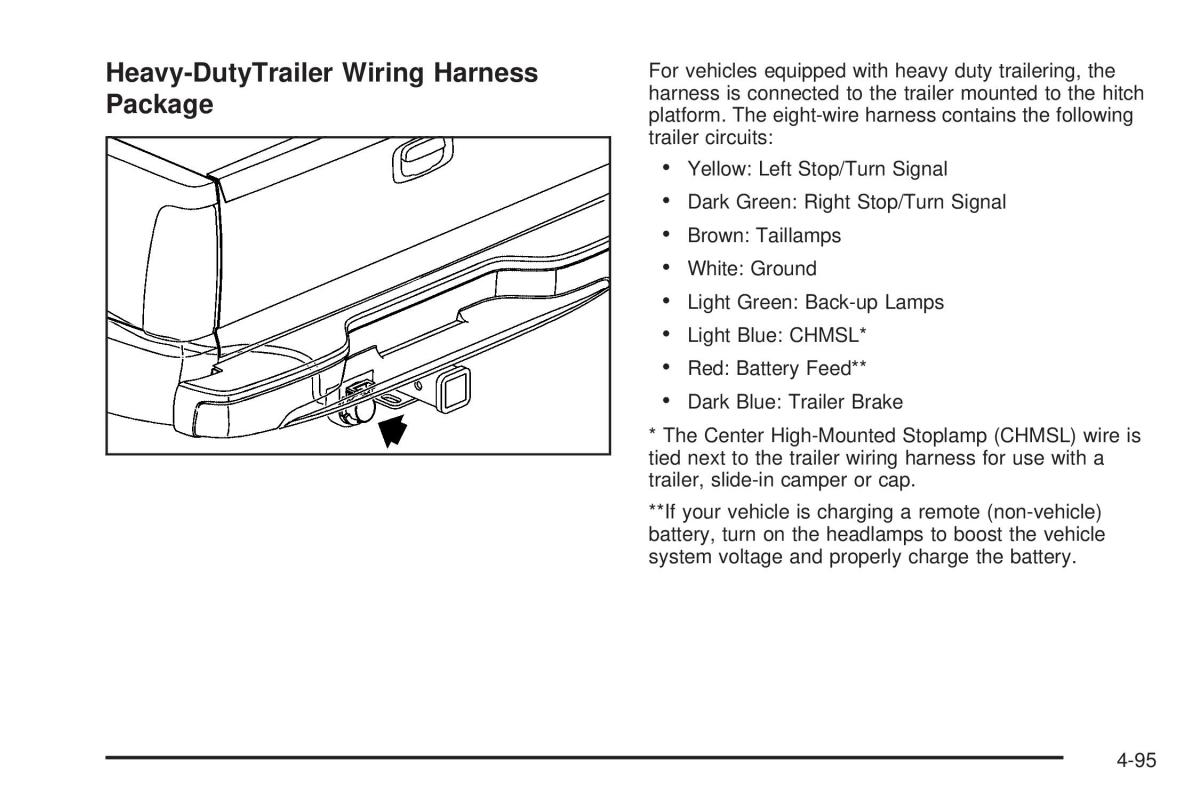

Heavy-DutyTrailer Wiring Harness For vehicles equipped with heavy duty trailering, the Package harness is connected to the trailer mounted to the hitch platform. The eight-wire harness contains the following trailer circuits: • Yellow: Left Stop/Turn Signal • Dark Green: Right Stop/Turn Signal • Brown: Taillamps • White: Ground • Light Green: Back-up Lamps • Light Blue: CHMSL* • Red: Battery Feed** • Dark Blue: Trailer Brake * The Center High-Mounted Stoplamp (CHMSL) wire is tied next to the trailer wiring harness for use with a trailer, slide-in camper or cap. **If your vehicle is charging a remote (non-vehicle) battery, turn on the headlamps to boost the vehicle system voltage and properly charge the battery. 4-95
