owners manual VW Tiguan

all ratings: 0 average rating: 5

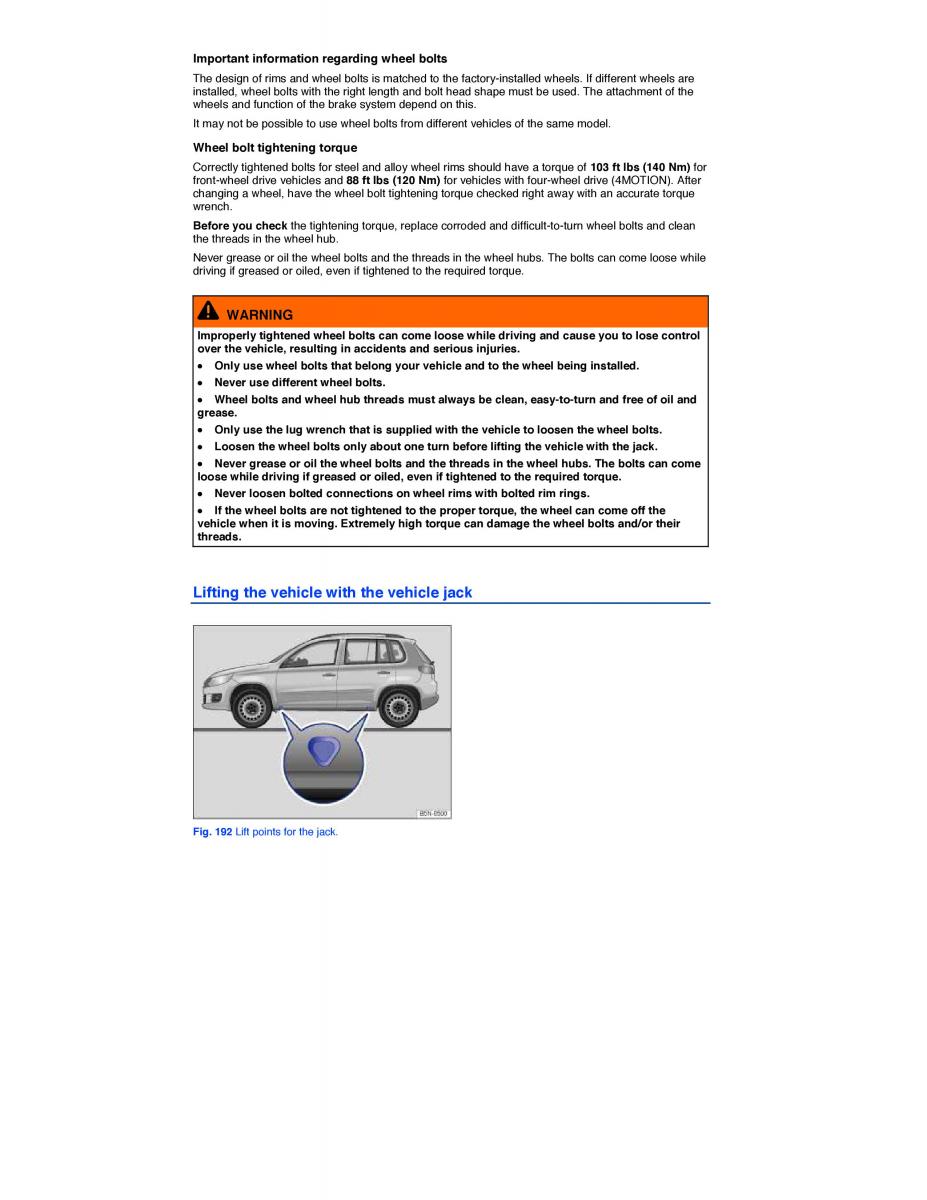

Important information regarding wheel bolts The design of rims and wheel bolts is matched to the factory-installed wheels. If different wheels are installed, wheel bolts with the right length and bolt head shape must be used. The attachment of the wheels and function of the brake system depend on this. It may not be possible to use wheel bolts from different vehicles of the same model. Wheel bolt tightening torque Correctly tightened bolts for steel and alloy wheel rims should have a torque of 103 ft lbs (140 Nm) for front-wheel drive vehicles and 88 ft lbs (120 Nm) for vehicles with four-wheel drive (4MOTION). After changing a wheel, have the wheel bolt tightening torque checked right away with an accurate torque wrench. Before you check the tightening torque, replace corroded and difficult-to-turn wheel bolts and clean the threads in the wheel hub. Never grease or oil the wheel bolts and the threads in the wheel hubs. The bolts can come loose while driving if greased or oiled, even if tightened to the required torque. WARNING Improperly tightened wheel bolts can come loose while driving and cause you to lose control over the vehicle, resulting in accidents and serious injuries. x Only use wheel bolts that belong your vehicle and to the wheel being installed. x Never use different wheel bolts. x Wheel bolts and wheel hub threads must always be clean, easy-to-turn and free o ofil and grease. x Only use the lug wrench that is supplied with the vehicle to loosen the wheel bolt. s x Loosen the wheel bolts only about one turn before lifting the vehicle with the jack. x Never grease or oil the wheel bolts and the threads in the wheel hubs. The bolts can come loose while driving if greased or oiled, even if tightened to the required torque. x Never loosen bolted connections on wheel rims with bolted rim rings. x If the wheel bolts are not tightened to the proper torque, the wheel can come off the vehicle when it is moving. Extremely high torque can damage the wheel bolts and/or their threads. Lifting the vehicle with the vehicle jack Fig. 192 Lift points for the jack.
