text version of content this owner's manual page from owners manual to the vehicle Chevrolet Suburban, year of production 2000 - 2006:

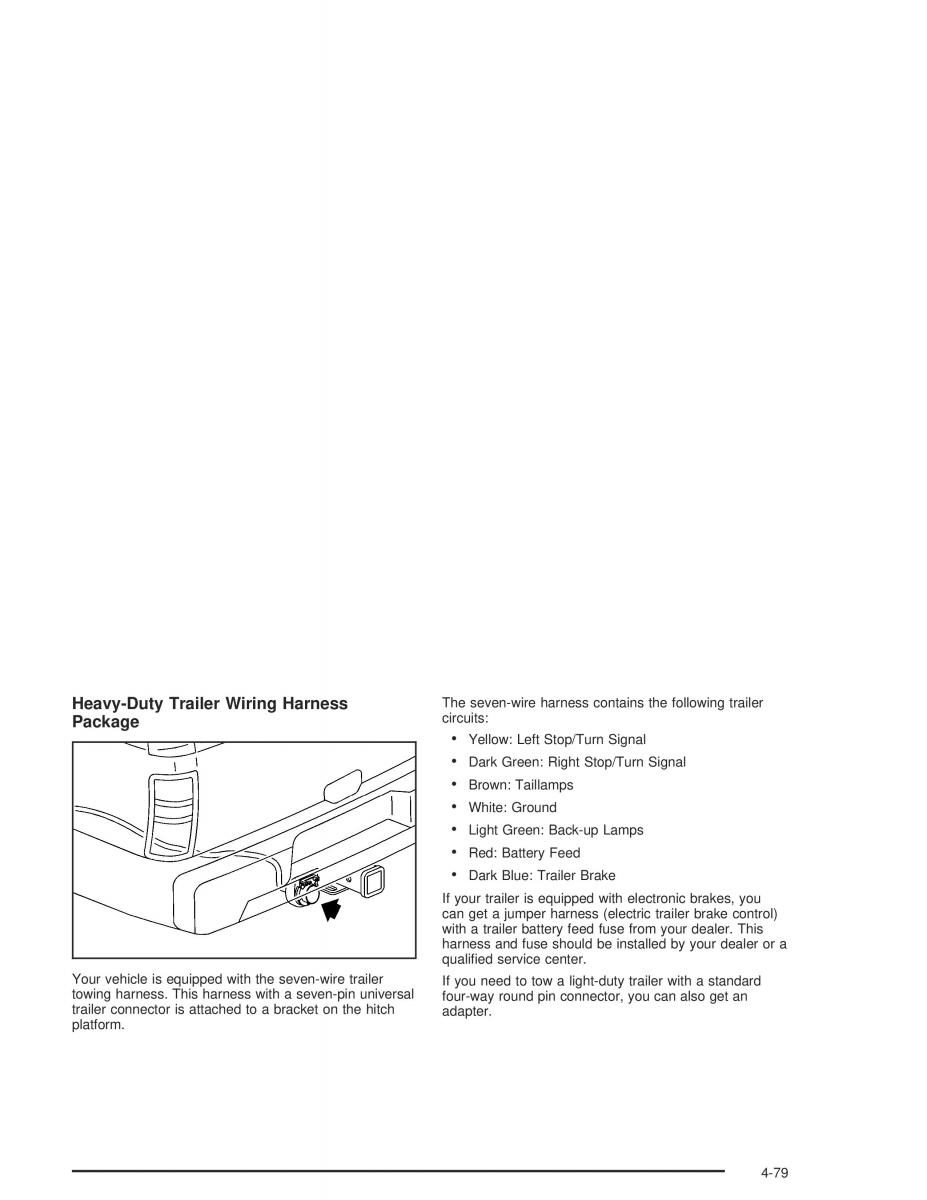

Heavy-Duty Trailer Wiring HarnessThe seven-wire harness contains the following trailer Package circuits: • Yellow: Left Stop/Turn Signal • Dark Green: Right Stop/Turn Signal • Brown: Taillamps • White: Ground • Light Green: Back-up Lamps • Red: Battery Feed • Dark Blue: Trailer Brake If your trailer is equipped with electronic brakes, you can get a jumper harness (electric trailer brake control) with a trailer battery feed fuse from your dealer. This harness and fuse should be installed by your dealer or a qualiﬁed service center. Your vehicle is equipped with the seven-wire trailerIf you need to tow a light-duty trailer with a standard towing harness. This harness with a seven-pin universalfour-way round pin connector, you can also get an trailer connector is attached to a bracket on the hitchadapter. platform. 4-79
