text version of content this owner's manual page from owners manual to the vehicle Chevrolet Suburban, year of production 2000 - 2006:

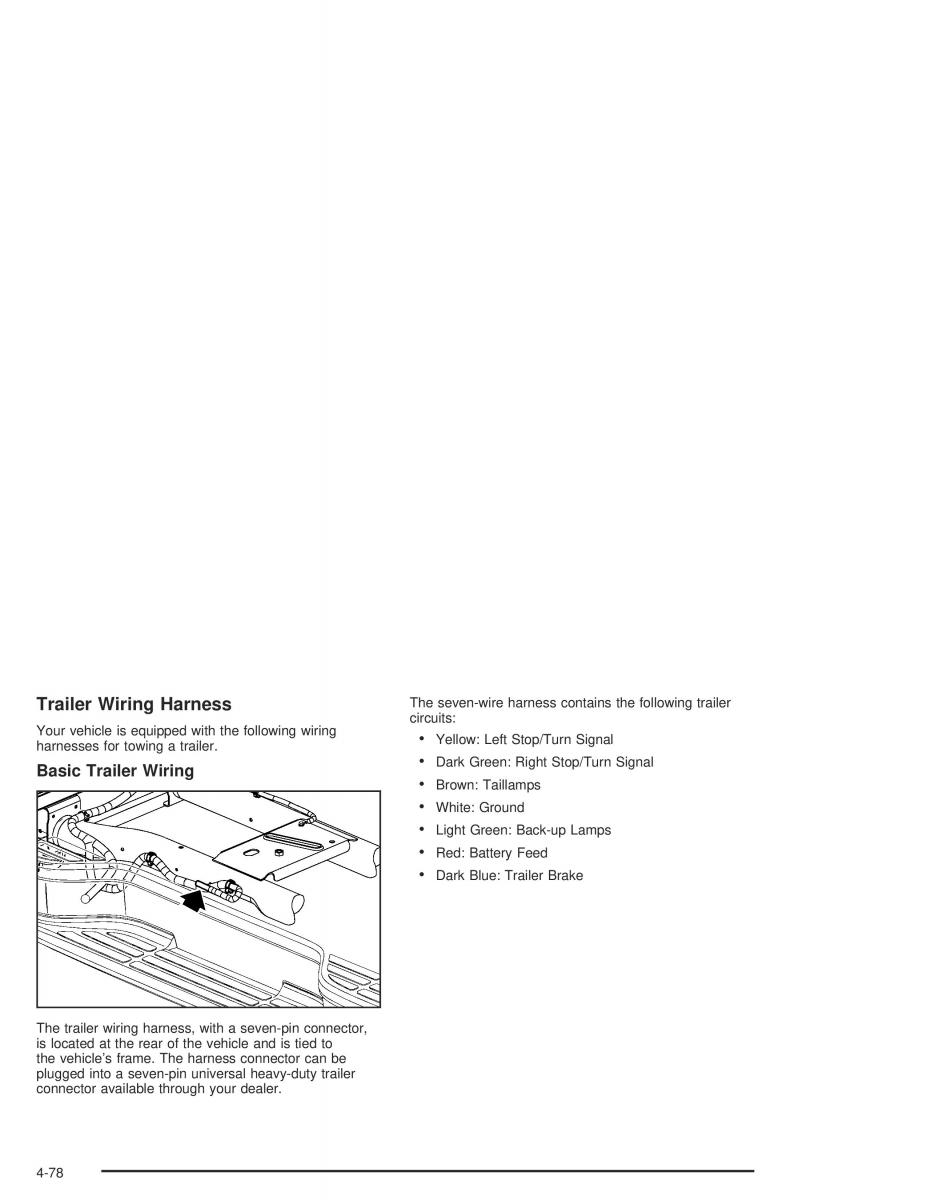

Trailer Wiring Harness The seven-wire harness contains the following trailer Your vehicle is equipped with the following wiringcircuits: harnesses for towing a trailer.• Yellow: Left Stop/Turn Signal Basic Trailer Wiring • Dark Green: Right Stop/Turn Signal • Brown: Taillamps • White: Ground • Light Green: Back-up Lamps • Red: Battery Feed • Dark Blue: Trailer Brake The trailer wiring harness, with a seven-pin connector, is located at the rear of the vehicle and is tied to the vehicle’s frame. The harness connector can be plugged into a seven-pin universal heavy-duty trailer connector available through your dealer. 4-78
