owners manual Mercedes SLR

owners manual Mercedes SLR - year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009 - Mercedes Benz SLR McLaren R199 owners manual EN

Document: pdf (11.59 MB) 425 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Mercedes SLR, year of production 2003 - 2009:

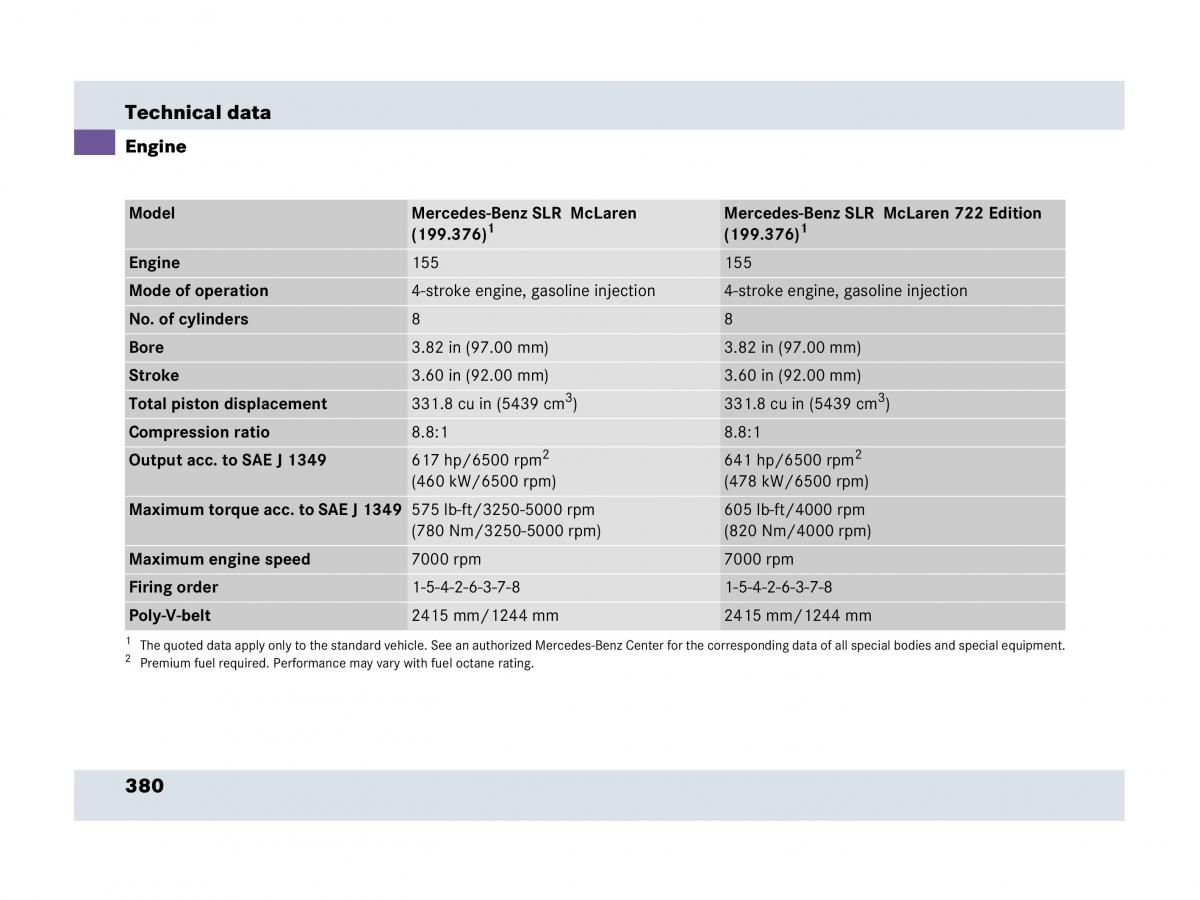

Technical data Engine Model Mercedes-Benz SLR McLaren Mercedes-Benz SLR McLaren 722 Edition 1 1 (199.376) (199.376) Engine 155 155 Mode of operation 4-stroke engine, gasoline injection 4-stroke engine, gasoline injection No. of cylinders 8 8 Bore 3.82 in (97.00 mm) 3.82 in (97.00 mm) Stroke 3.60 in (92.00 mm) 3.60 in (92.00 mm) 3 3 Total piston displacement 331.8cu in (5439 cm ) 331.8 cu in (5439 cm ) Compression ratio 8.8:1 8.8:1 2 2 Output acc. to SAE J 1349 617hp/6500rpm 641hp/6500rpm (460 kW/6500rpm) (478 kW/6500rpm) Maximum torque acc. to SAE J 1349 575 lb-ft/3250-5000 rpm 605lb-ft/4000 rpm (780 Nm/3250-5000rpm) (820 Nm/4000rpm) Maximum engine speed 7000rpm 7000rpm Firing order 1-5-4-2-6-3-7-8 1-5-4-2-6-3-7-8 Poly-V-belt 2415mm/1244mm 2415mm/1244mm 1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all sp ecial bodies and special equipment. 2 Premium fuel required. Performance may vary with fuel octane rating. 380
