text version of content this owner's manual page from owners manual to the vehicle Mercedes SLR, year of production 2003 - 2009:

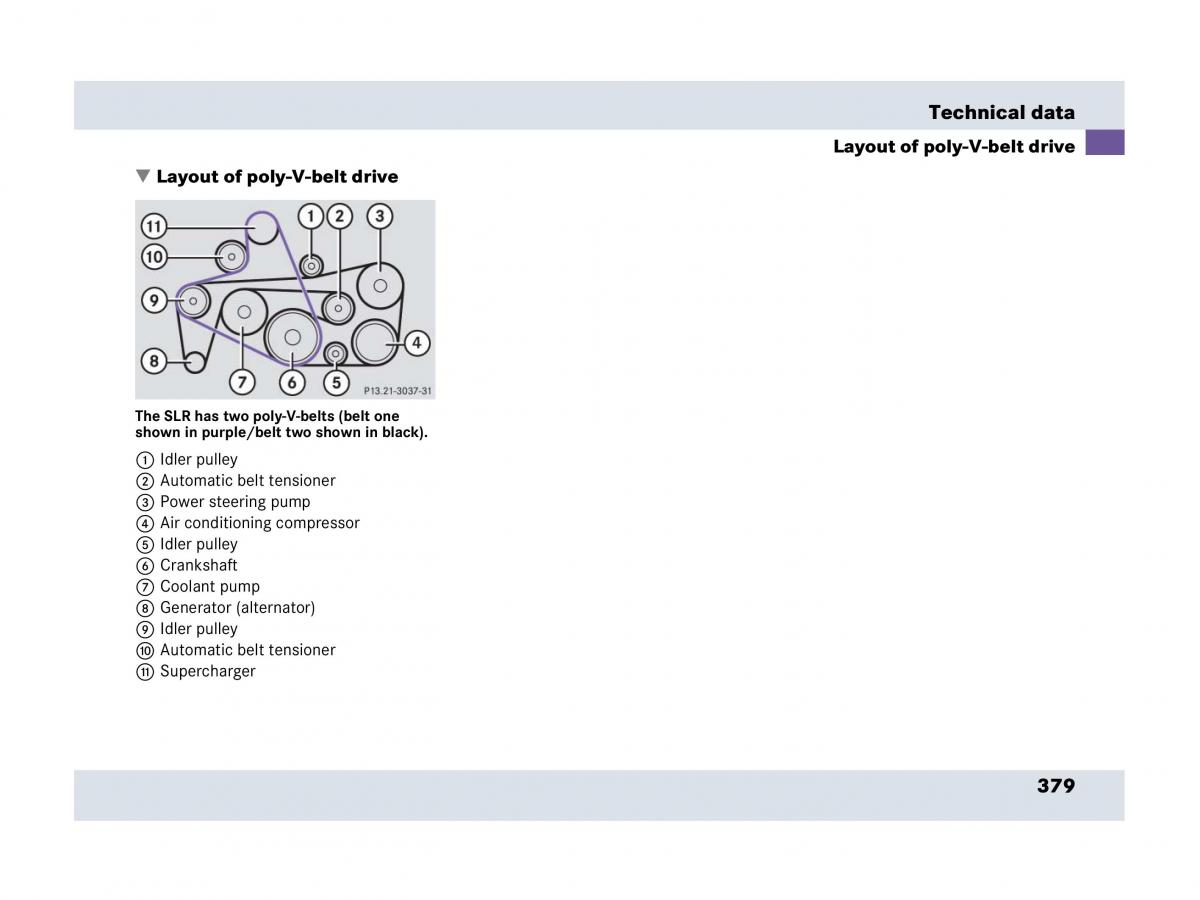

Technical data Layout of poly-V-belt drive Layout of poly-V-belt drive The SLR has two poly-V-belts (belt one shown in purple/belt two shown in black). 1Idler pulley 2Automatic belt tensioner 3Power steering pump 4Air conditioning compressor 5Idler pulley 6Crankshaft 7Coolant pump 8Generator (alternator) 9Idler pulley aAutomatic belt tensioner bSupercharger 379
