text version of content this owner's manual page from owners manual to the vehicle Chevrolet Suburban, year of production 2007 - 2014:

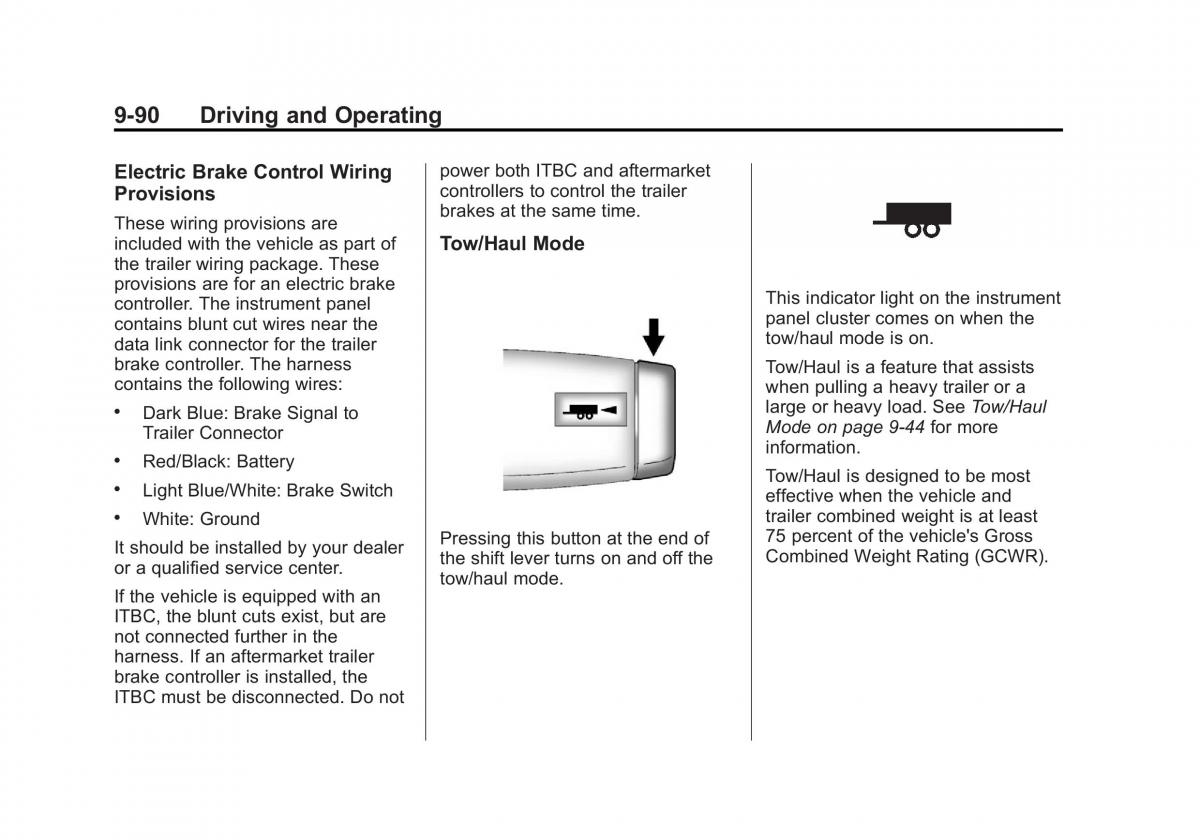

Chevrolet Tahoe/Suburban Owner Manual - 2011 Black plate (90,1) 9-90 Driving and Operating Electric Brake Control Wiring power both ITBC and aftermarket Provisions controllers to control the trailer These wiring provisions are brakes at the same time. included with the vehicle as part of Tow/Haul Mode the trailer wiring package. These provisions are for an electric brake This indicator light on the instrument controller. The instrument panel panel cluster comes on when the contains blunt cut wires near the tow/haul mode is on. data link connector for the trailer brake controller. The harness Tow/Haul is a feature that assists contains the following wires: whenpulling a heavy trailer or a . Dark Blue: Brake Signal to large or heavy load. SeeTow/Haul Trailer Connector Modeonpage9‑44formore information. . Red/Black: Battery Tow/Haul is designed to be most . Light Blue/White: Brake Switch effective when the vehicle and . White: Ground trailer combined weight is at least It should be installed by your dealerPressing this button at the end of 75 percent of the vehicle's Gross or a qualified service center. the shift lever turns on and off the CombinedWeightRating (GCWR). tow/haul mode. If the vehicle is equipped with an ITBC, the blunt cuts exist, but are not connected further in the harness. If an aftermarket trailer brake controller is installed, the ITBC must be disconnected. Do not
