text version of content this owner's manual page from owners manual to the vehicle Chevrolet Suburban, year of production 2007 - 2014:

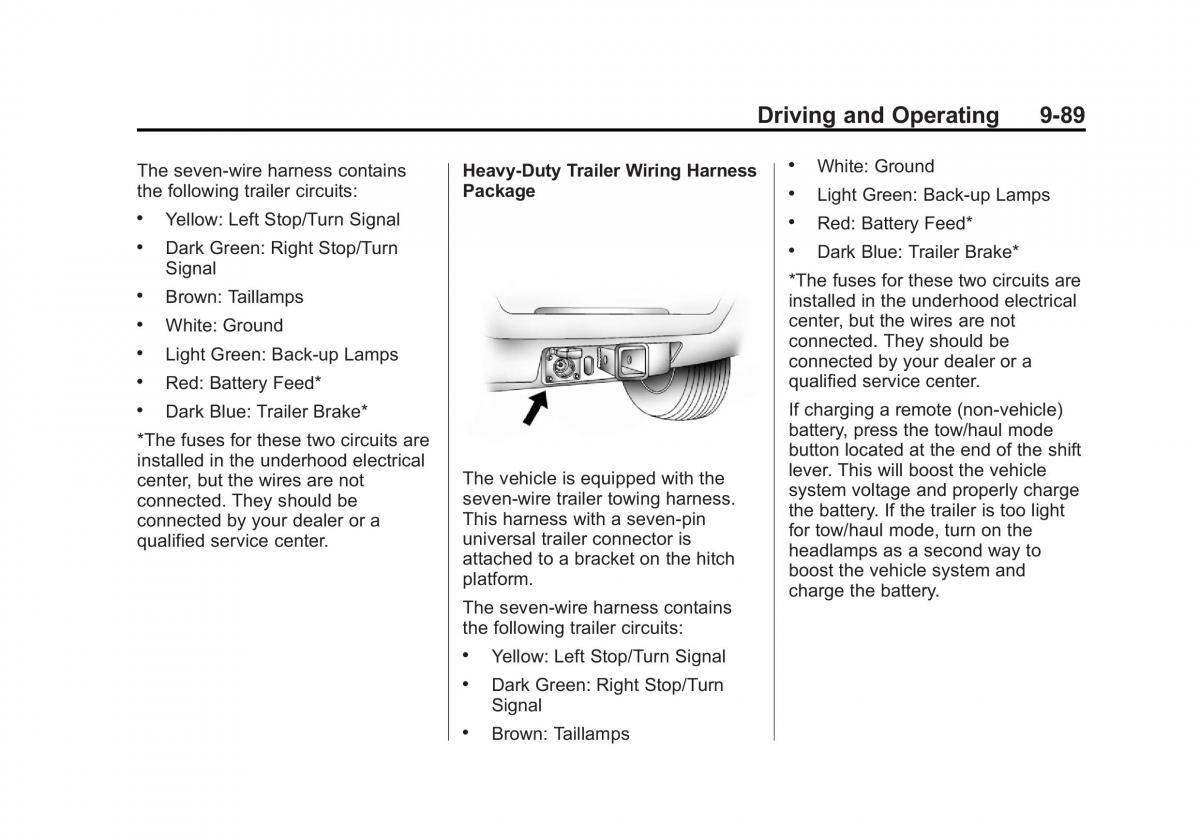

Chevrolet Tahoe/Suburban Owner Manual - 2011 Black plate (89,1) Driving and Operating 9-89 The seven-wire harness contains Heavy-Duty Trailer Wiring Harness . White: Ground the following trailer circuits: Package . Light Green: Back-up Lamps . Yellow: Left Stop/Turn Signal . Red: Battery Feed* . Dark Green: Right Stop/Turn . Dark Blue: Trailer Brake* Signal *The fuses for these two circuits are . Brown: Taillamps installed in the underhood electrical . White: Ground center, but the wires are not connected. They should be . Light Green: Back-up Lamps connected by your dealer or a . Red: Battery Feed* qualified service center. . Dark Blue: Trailer Brake* If charging a remote (non-vehicle) *The fuses for these two circuits are battery, press the tow/haul mode installed in the underhood electrical button located at the end of the shift center, but the wires are not The vehicle is equipped with the lever. This will boost the vehicle connected. They should be seven-wire trailer towing harness. system voltage and properly charge connected by your dealer or a This harness with a seven-pin the battery. If the trailer is too light qualified service center. universal trailer connector is for tow/haul mode, turn on the attached to a bracket on the hitch headlamps as a second way to platform. boost the vehicle system and charge the battery. The seven-wire harness contains the following trailer circuits: . Yellow: Left Stop/Turn Signal . Dark Green: Right Stop/Turn Signal . Brown: Taillamps
