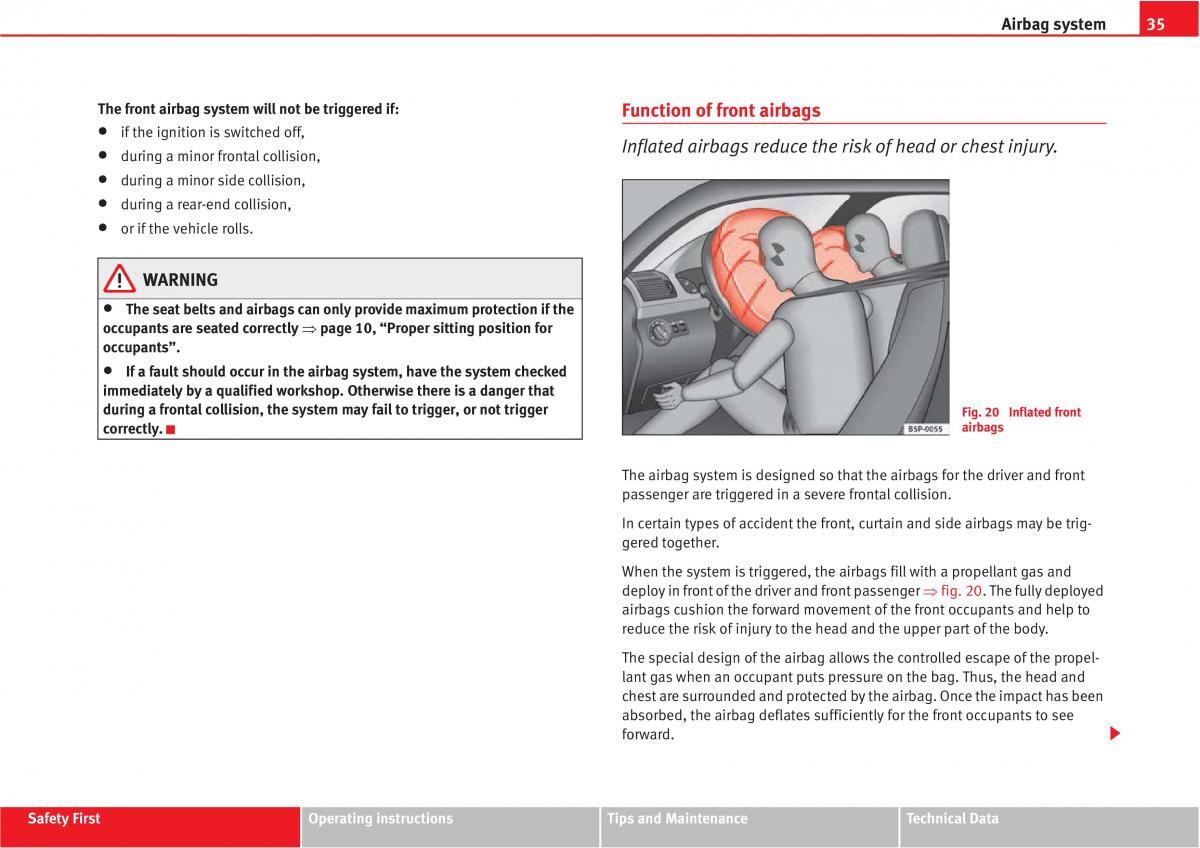

Airbag system35
The front airbag system will not be triggered if:Function of front airbags
• if the ignition is switched off, Inflated airbags reduce the risk of head or chest injury.
• during a minor frontal collision,
• during a minor side collision,
• during a rear-end collision,
• or if the vehicle rolls.
WARNING
• The seat belts and airbags can only provide maximum protection if the
occupants are seated correctly page10, “Proper sitting position for
occupants”.
• If a fault should occur in the airbag system, have the system checked
immediately by a qualified workshop. Otherwise there is a danger that
during a frontal collision, the system may fail to trigger, or not trigger Fig. 20 Inflated front
correctly. airbags
The airbag system is designed so that the airbags for the driver and front
passenger are triggered in a severe frontal collision.
In certain types of accident the front, curtain and side airbags may be trig-
gered together.
When the system is triggered, the airbags fill with a propellant gas and
deploy in front of the driver and front passenger fig. 20. The fully deployed
airbags cushion the forward movement of the front occupants and help to
reduce the risk of injury to the head and the upper part of the body.
The special design of the airbag allows the controlled escape of the propel-
lant gas when an occupant puts pressure on the bag. Thus, the head and
chest are surrounded and protected by the airbag. Once the impact has been
absorbed, the airbag deflates sufficiently for the front occupants to see
forward.
