text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Eclipse, year of production 1995 - 1999:

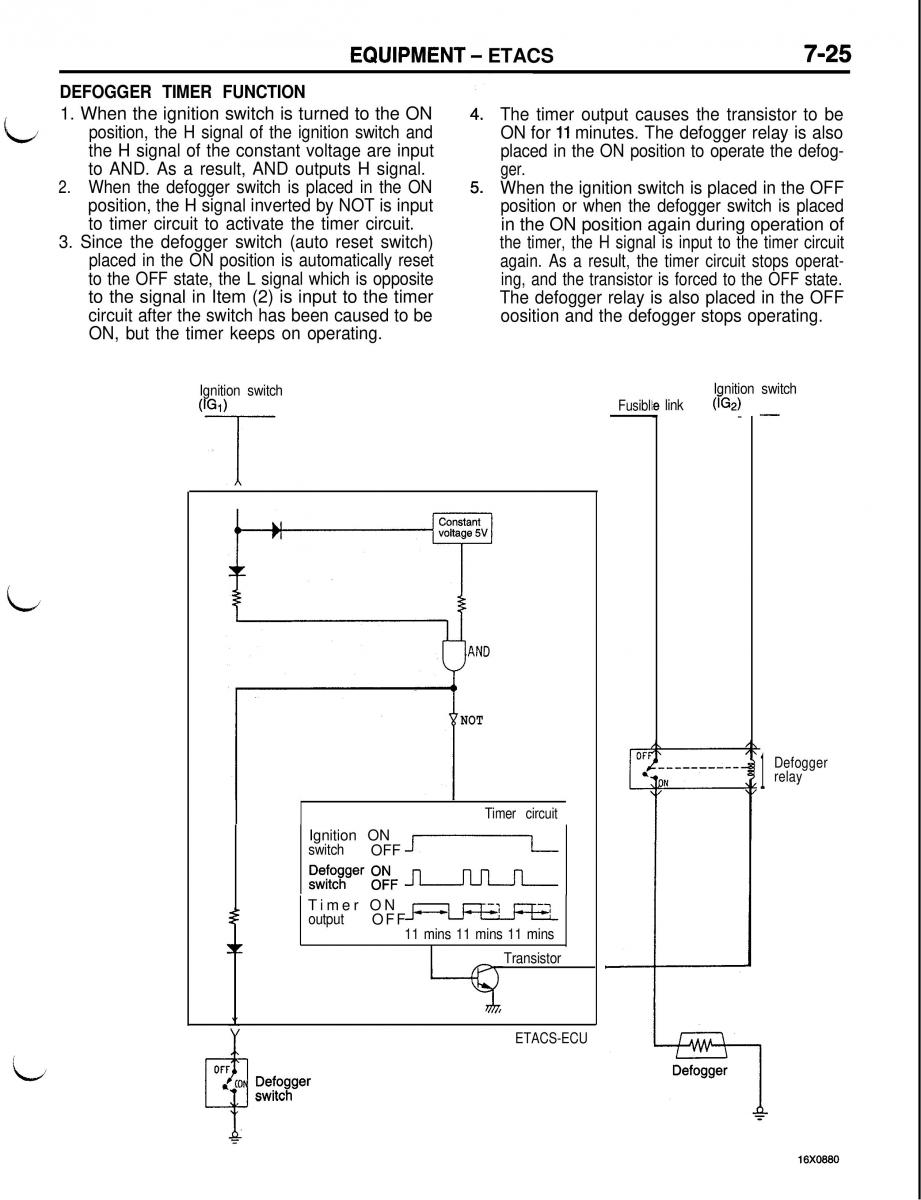

EQUIPMENT - ETACS 7-25 DEFOGGER TIMER FUNCTION 1. When the ignition switch is turned to the ON The timer output causes the transistor to be position, the H signal of the ignition switch and ON for II minutes. The defogger relay is also id the H signal of the constant voltage are input placed in the ON position to operate the defog- to AND. As a result, AND outputs H signal. ger. 2. When the defogger switch is placed in the ON position, the H signal inverted by NOT is input When the ignition switch is placed in the OFF position or when the defogger switch is placed to timer circuit to activate the timer circuit. in the ON position again during operation of 3. Since the defogger switch (auto reset switch) the timer, the H signal is input to the timer circuit placed in the ON position is automatically reset again. As a result, the timer circuit stops operat- to the OFF state, the L signal which is opposite ing, and the transistor is forced to the OFF state. to the signal in Item (2) is input to the timer circuit after the switch has been caused to be The defogger relay is also placed in the OFF oosition and the defogger stops operating. ON, but the timer keeps on operating. Ignition switch Ignition switch WI) Fusibl le link(iG2)- -I- -- i; NOT Defogger 1 relay Timer circuit Ignition ON switch OFF m s”w”&fger g:F a Timer ON m output OFF - -1 7 11 mins 11 mins 11 mins Transistor ETACS-ECU L OFF . ON ~;f#c.w 3
