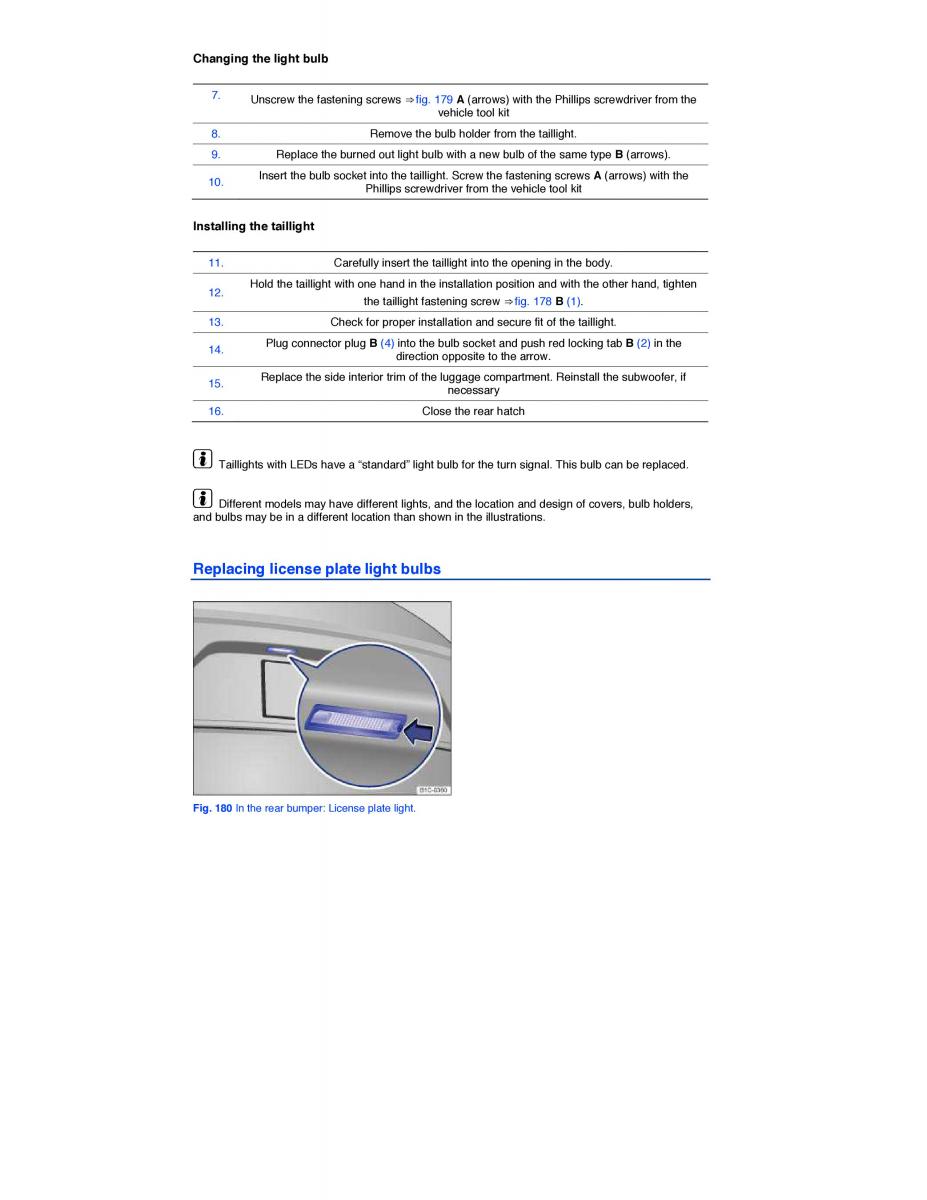

text version of content this owner's manual page from owners manual to the vehicle VW Beetle, year of production 2011:

Changing the light bulb 7. Unscrew the fastening screws ⇒ fig. 179 A (arrows) with the Phillips screwdriver from the vehicle tool kit 8. Remove the bulb holder from the taillight. 9. Replace the burned out light bulb with a new bulb of the same type B (arrows). 10. Insert the bulb socket into the taillight. Screw the fastening screws A (arrows) with the Phillips screwdriver from the vehicle tool kit Installing the taillight 11. Carefully insert the taillight into the opening in the body. 12. Hold the taillight with one hand in the installation position and with the other hand, tighten the taillight fastening screw ⇒ fig. 178 B (1). 13. Check for proper installation and secure fit of the taillight. 14. Plug connector plug B (4) into the bulb socket and push red locking tab B (2) in the direction opposite to the arrow. 15. Replace the side interior trim of the luggage compartment. Reinstall the subwoofer, if necessary 16. Close the rear hatch Taillights with LEDs have a “standard” light bulb for the turn signal. This bulb can be replaced. Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations. Replacing license plate light bulbs Fig. 180 In the rear bumper: License plate light.
