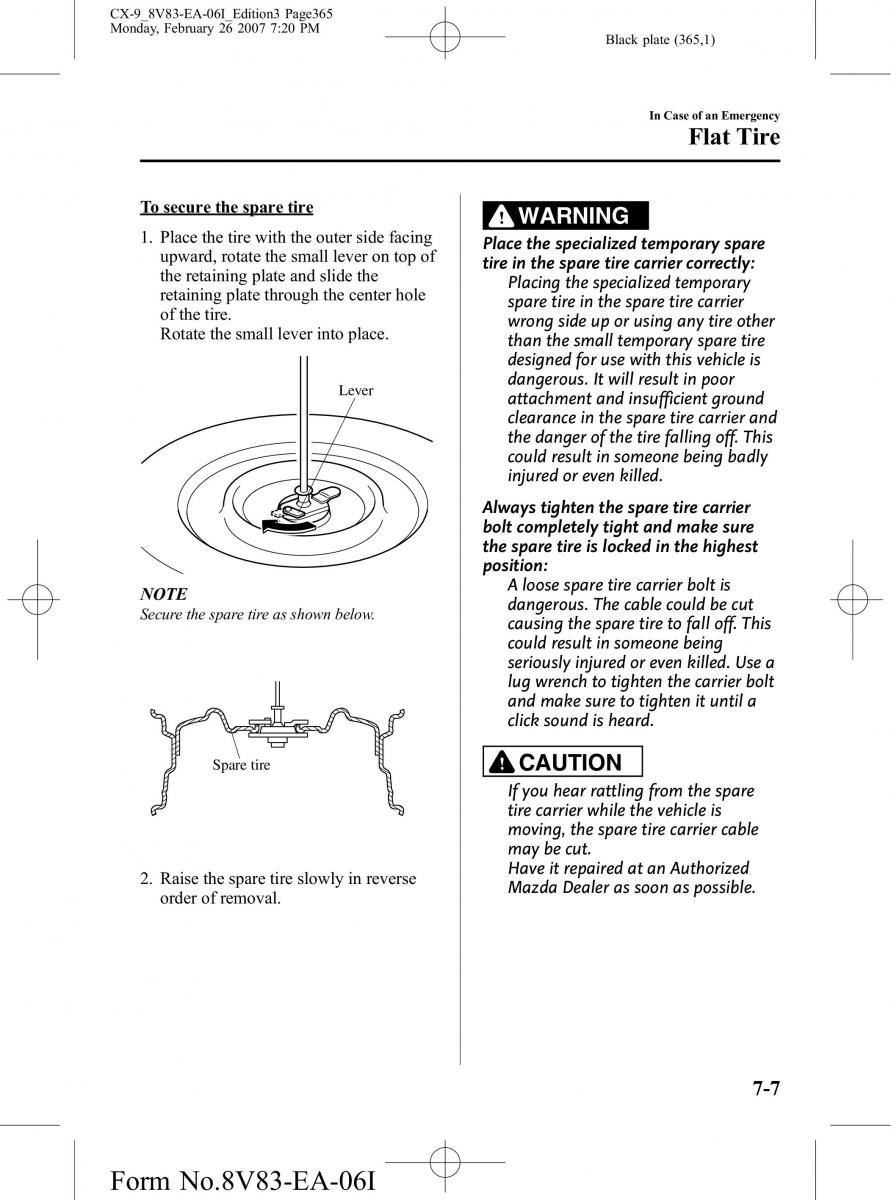

CX-9_8V83-EA-06I_Edition3 Page365
Monday, February 26 2007 7:20 PM
Black plate (365,1)
In Case of an Emergency
Flat Tire
Tosecurethe spare tire WARNING
1. Place the tire with the outer side facingPlace the specialized temporary spare
upward, rotate the small lever on top oftire in the spare tire carrier correctly:
the retaining plate and slide the Placing the specialized temporary
retaining plate through the center holespare tire in the spare tire carrier
of the tire. wrongside up or using any tire other
Rotate the small lever into place. than the small temporary spare tire
designed for use with this vehicle is
Lever dangerous. It will result in poor
attachment and insufficient ground
clearance in the spare tire carrier and
the danger of the tire falling off. This
could result in someone being badly
injured or even killed.
Always tighten the spare tire carrier
bolt completely tight and make sure
the spare tire is locked in the highest
position:
NOTE Aloose spare tire carrier bolt is
Secure the spare tire as shown below. dangerous. The cable could be cut
causing the spare tire to fall off. This
could result in someone being
seriously injured or even killed. Use a
lug wrench to tighten the carrier bolt
andmakesuretotighten it until a
click sound is heard.
Spare tire CAUTION
If you hear rattling from the spare
tire carrier while the vehicle is
moving, the spare tire carrier cable
maybecut.
2. Raise the spare tire slowly in reverseHaveit repaired at an Authorized
order of removal. MazdaDealerassoonaspossible.
7-7
Form No.8V83-EA-06I
