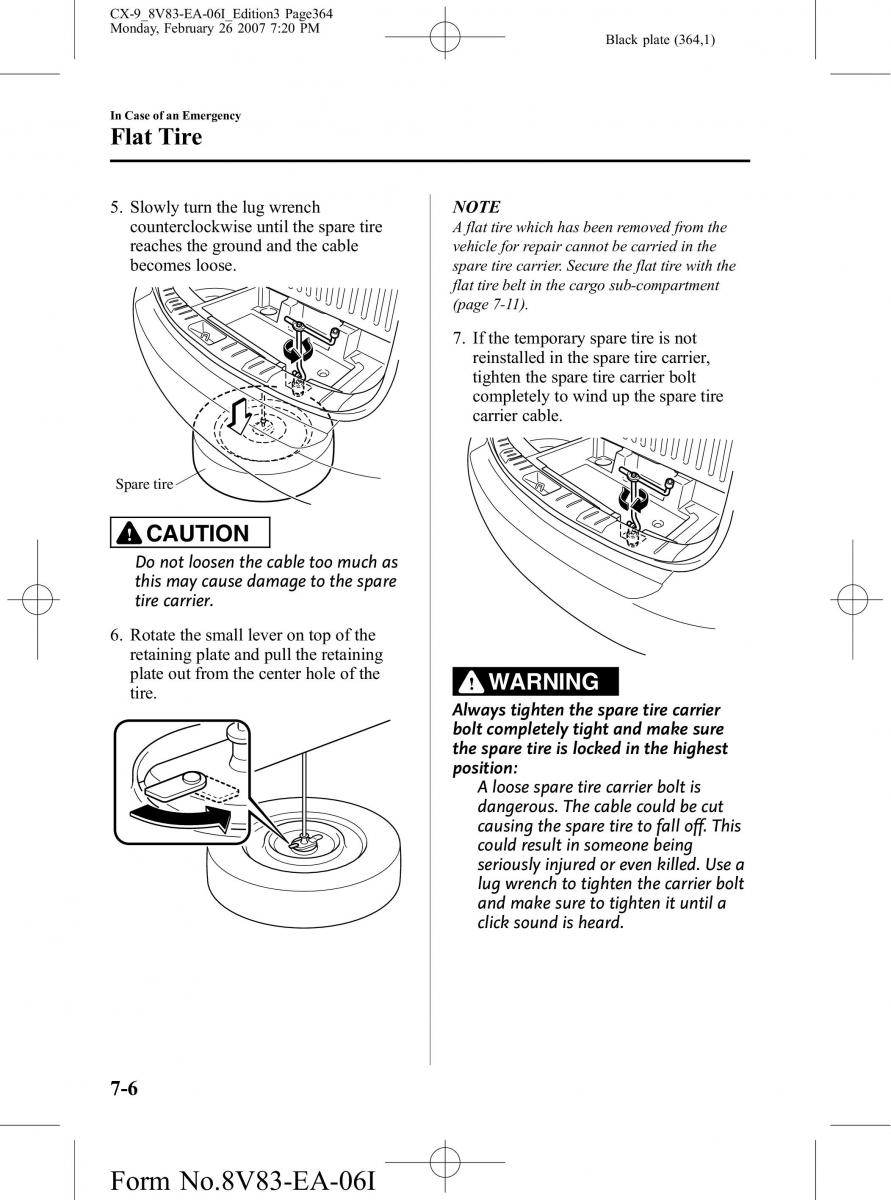

CX-9_8V83-EA-06I_Edition3 Page364
Monday, February 26 2007 7:20 PM
Black plate (364,1)
In Case of an Emergency
Flat Tire
5. Slowly turn the lug wrench NOTE
counterclockwise until the spare tireAflat tire which has been removed from the
reaches the ground and the cable vehicle for repair cannot be carried in the
becomes loose. spare tire carrier. Secure the flat tire with the
flat tire belt in the cargo sub-compartment
(page 7-11).
7. If the temporary spare tire is not
reinstalled in the spare tire carrier,
tighten the spare tire carrier bolt
completely to wind up the spare tire
carrier cable.
Spare tire
CAUTION
Donotloosenthecabletoomuchas
this may cause damage to the spare
tire carrier.
6. Rotate the small lever on top of the
retaining plate and pull the retaining
plate out from the center hole of the WARNING
tire.
Always tighten the spare tire carrier
bolt completely tight and make sure
the spare tire is locked in the highest
position:
Aloose spare tire carrier bolt is
dangerous. The cable could be cut
causing the spare tire to fall off. This
could result in someone being
seriously injured or even killed. Use a
lug wrench to tighten the carrier bolt
andmakesuretotighten it until a
click sound is heard.
7-6
Form No.8V83-EA-06I
