text version of content this owner's manual page from owners manual to the vehicle Subaru Tribeca, year of production 2005 - 2014:

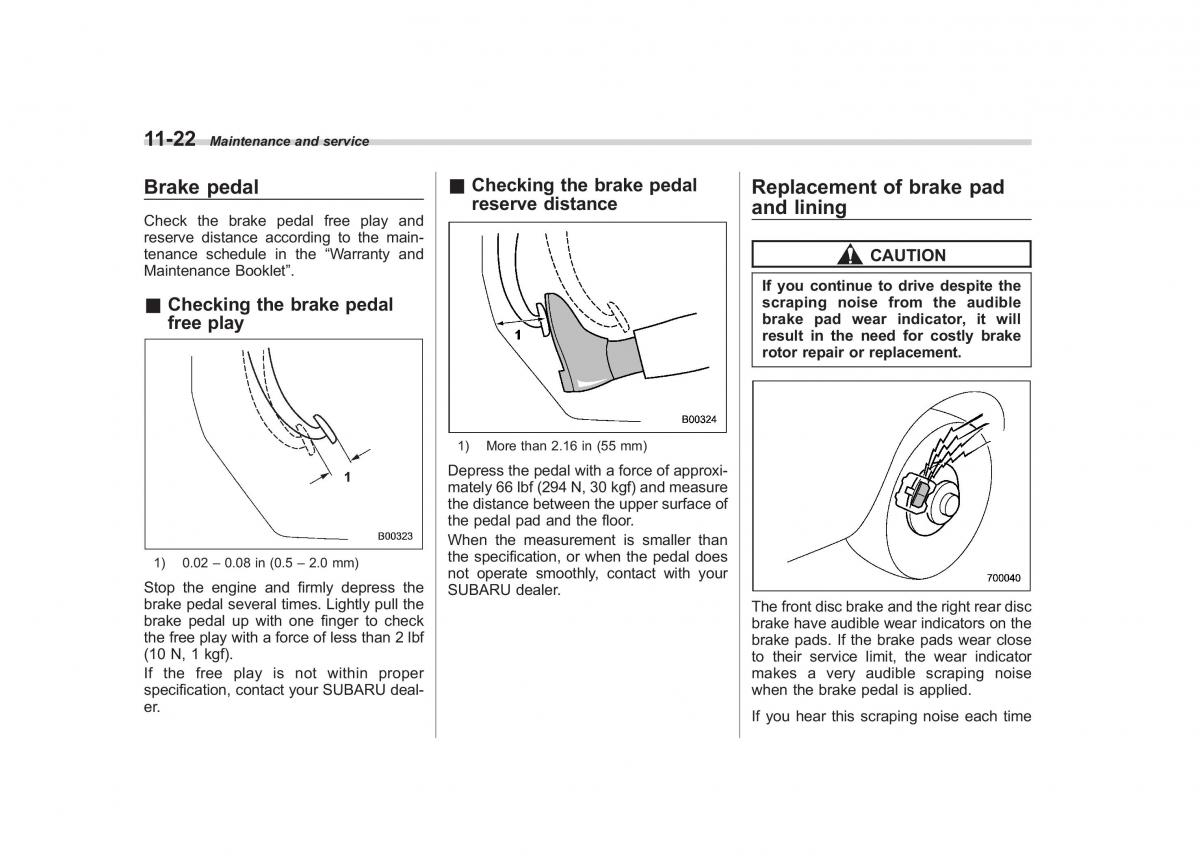

11-22 Maintenance and service Brake pedal &Checking the brake pedal Replacement of brake pad reserve distance and lining Check the brake pedal free play and reserve distance according to the main- tenance schedule in the “Warranty and CAUTION Maintenance Booklet”. If you continue to drive despite the &Checking the brake pedal scraping noise from the audible free play brake pad wear indicator, it will result in the need for costly brake rotor repair or replacement. 1) More than 2.16 in (55 mm) Depress the pedal with a force of approxi- mately 66 lbf (294 N, 30 kgf) and measure the distance between the upper surface of the pedal pad and the floor. When the measurement is smaller than 1) 0.02 – 0.08 in (0.5 – 2.0 mm)the specification, or when the pedal does not operate smoothly, contact with your Stop the engine and firmly depress theSUBARUdealer. brake pedal several times. Lightly pull the Thefront disc brake and the right rear disc brake pedal up with one finger to check brake have audible wear indicators on the the free play with a force of less than 2 lbf brake pads. If the brake pads wear close (10 N, 1 kgf). to their service limit, the wear indicator Ifthe free play is not within proper makes a very audible scraping noise specification, contact your SUBARU deal- when the brake pedal is applied. er. If you hear this scraping noise each time
