owners manual VW Touareg

owners manual VW Touareg - year of production: 2010 - VW Touareg II 2 owners manual EN

Document: pdf (9.85 MB) 620 pages

all ratings: 1 average rating: 3

text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

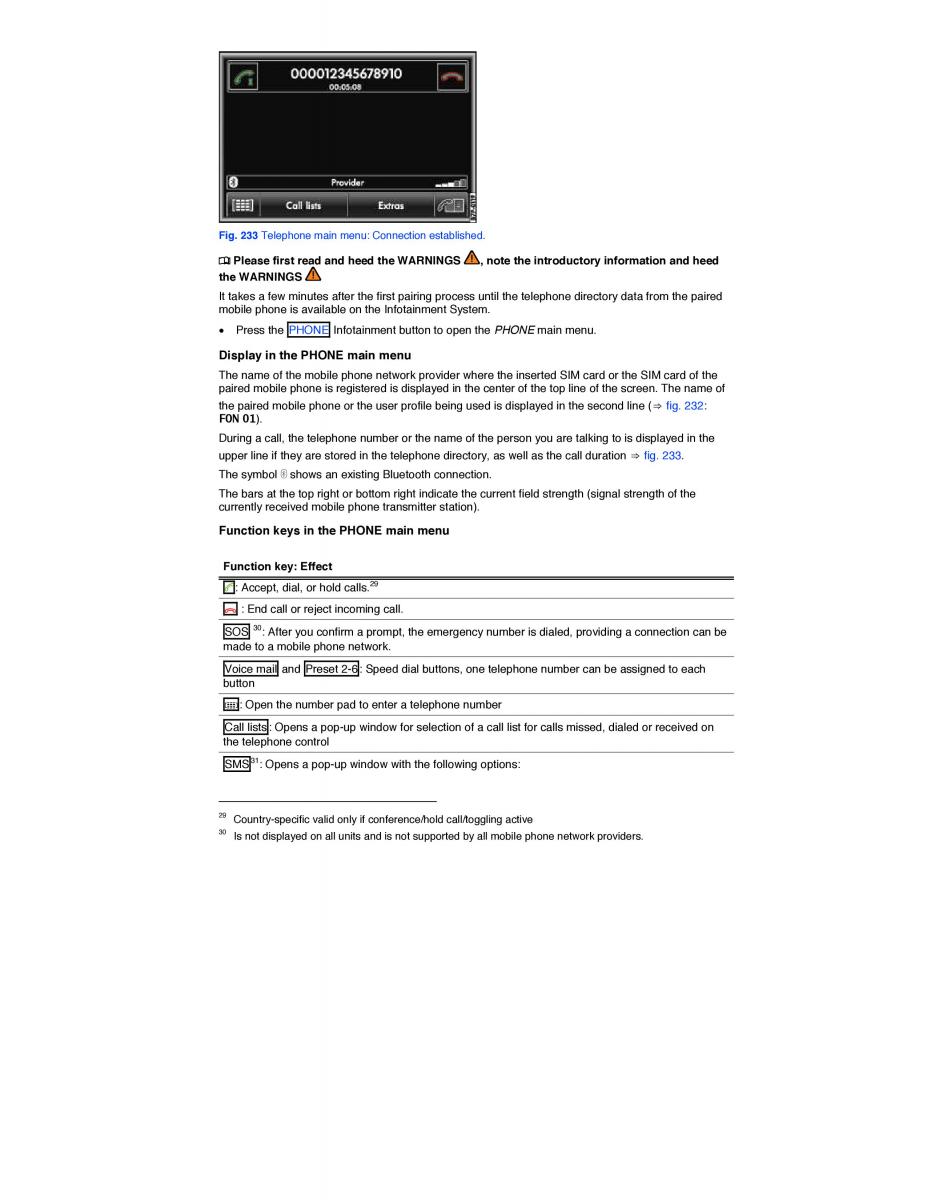

Fig. 233 Telephone main menu: Connection established. ¤ Please first read and heed the WARNINGS , note the introductory information and heed the WARNINGS It takes a few minutes after the first pairing process until the telephone directory data from the paired mobile phone is available on the Infotainment System. x Press thePHONE Infotainment button to open the PHONE main menu. Display in the PHONE main menu The name of the mobile phone network provider where the inserted SIM card or the SIM card of the paired mobile phone is registered is displayed in the center of the top line of the screen. The name of the paired mobile phone or the user profile being used is displayed in the second line (⇒ fig. 232: FON 01). During a call, the telephone number or the name of the person you are talking to is displayed in the upper line if they are stored in the telephone directory, as well as the call duration ⇒ fig. 233. The symbol shows an existing Bluetooth connection. The bars at the top right or bottom right indicate the current field strength (signal strength of the currently received mobile phone transmitter station). Function keys in the PHONE main menu Function key: Effect 29 : Accept, dial, or hold calls. ^ : End call or reject incoming call. SOS 30: After you confirm a prompt, the emergency number is dialed, providing a connection can be made to a mobile phone network. Voice mail and Preset 2-6: Speed dial buttons, one telephone number can be assigned to each button o: Open the number pad to enter a telephone number Call lists: Opens a pop-up window for selection of a call list for calls missed, dialed or received on the telephone control SMS31: Opens a pop-up window with the following options: 29 Country-specific valid only if coneref nce/hold call/toggling active 30 Is not displayed on all units and is not supported by all mobile phone network providers.
