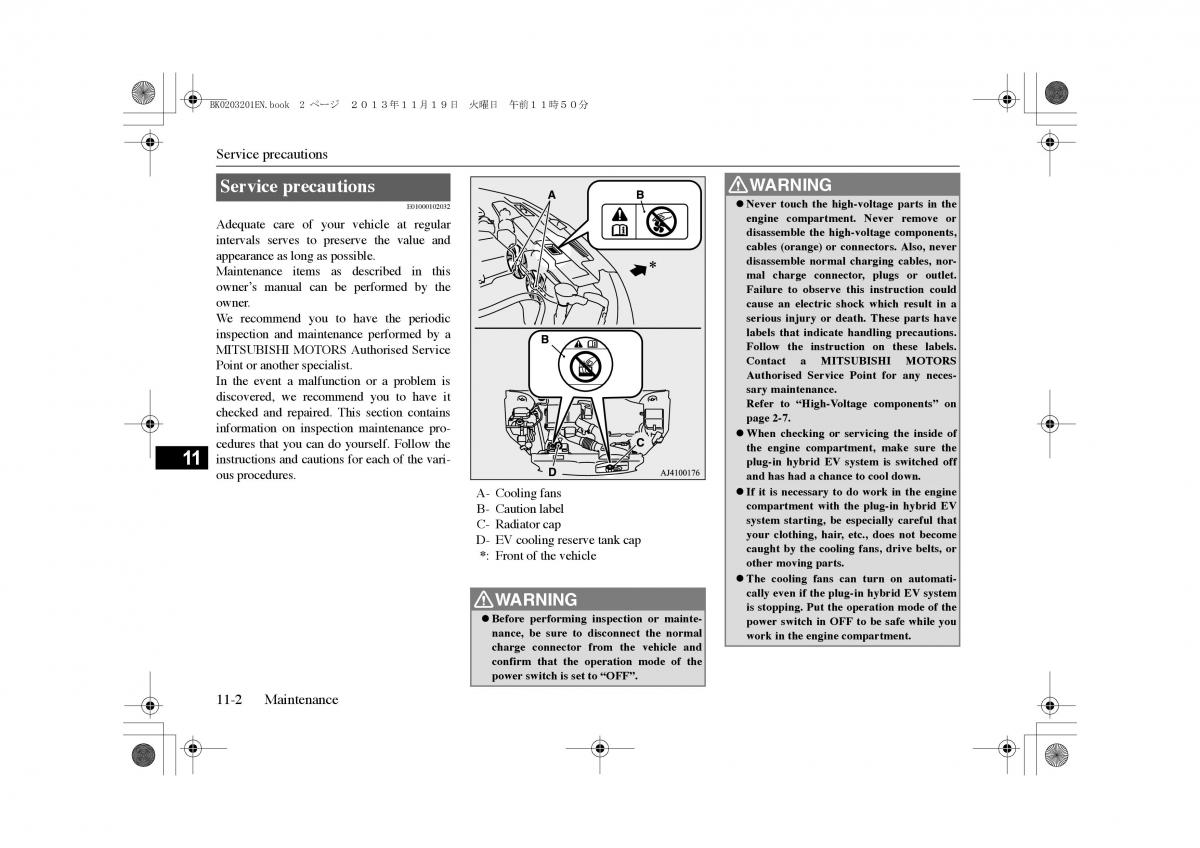

B０0203201E３.book 2 ページ㸰㸮㸯㸱年㸯㸯月㸯９日　火曜日　午前㸯㸯時５㸮分 Service precautions Service precautions WARNING E01000102032 zNever touch the high-voltage parts in the Adequate care of your vehicle at regular engine compartment. Never remove or intervals serves to preserve the value and disassemble the high-voltage components, appearance as long as possible. cables (orange) or connectors. Also, never Maintenance items as described in this disassemble normal charging cables, nor- owner’s manual can be performed by the mal charge connector, plugs or outlet. owner. Failure to observe this instruction could cause an electric shock which result in a We recommend you to have the periodic serious injury or death. These parts have inspection and maintenance performed by a labels that indicate handling precautions. MITSUBISHI MOTORS Authorised Service Follow the instruction on these labels. Point or another specialist. Contact a MITSUBISHI MOTORS In the event a malfunction or a problem is Authorised Service Point for any neces- discovered, we recommend you to have it sary maintenance. checked and repaired. This section contains Refer to “High-Voltage components” on information on inspection maintenance pro- page 2-7. cedures that you can do yourself. Follow the zWhen checking or servicing the inside of 11 instructions and cautions for each of the vari- the engine compartment, make sure the ous procedures. plug-in hybrid EV system is switched off and has had a chance to cool down. A- Cooling fans zIf it is necessary to do work in the engine B- Caution label compartment with the plug-in hybrid EV C- Radiator cap system starting, be especially careful that D- EV cooling reserve tank cap your clothing, hair, etc., does not become *:Front of the vehicle caught by the cooling fans, drive belts, or other moving parts. zThe cooling fans can turn on automati- WARNING cally even if the plug-in hybrid EV system zBefore performing inspection or mainte- is stopping. Put the operation mode of the nance, be sure to disconnect the normal power switch in OFF to be safe while you charge connector from the vehicle and work in the engine compartment. confirm that the operation mode of the power switch is set to “OFF”. 11-2 Maintenance
