text version of content this owner's manual page from owners manual to the vehicle VW Touareg, year of production 2010:

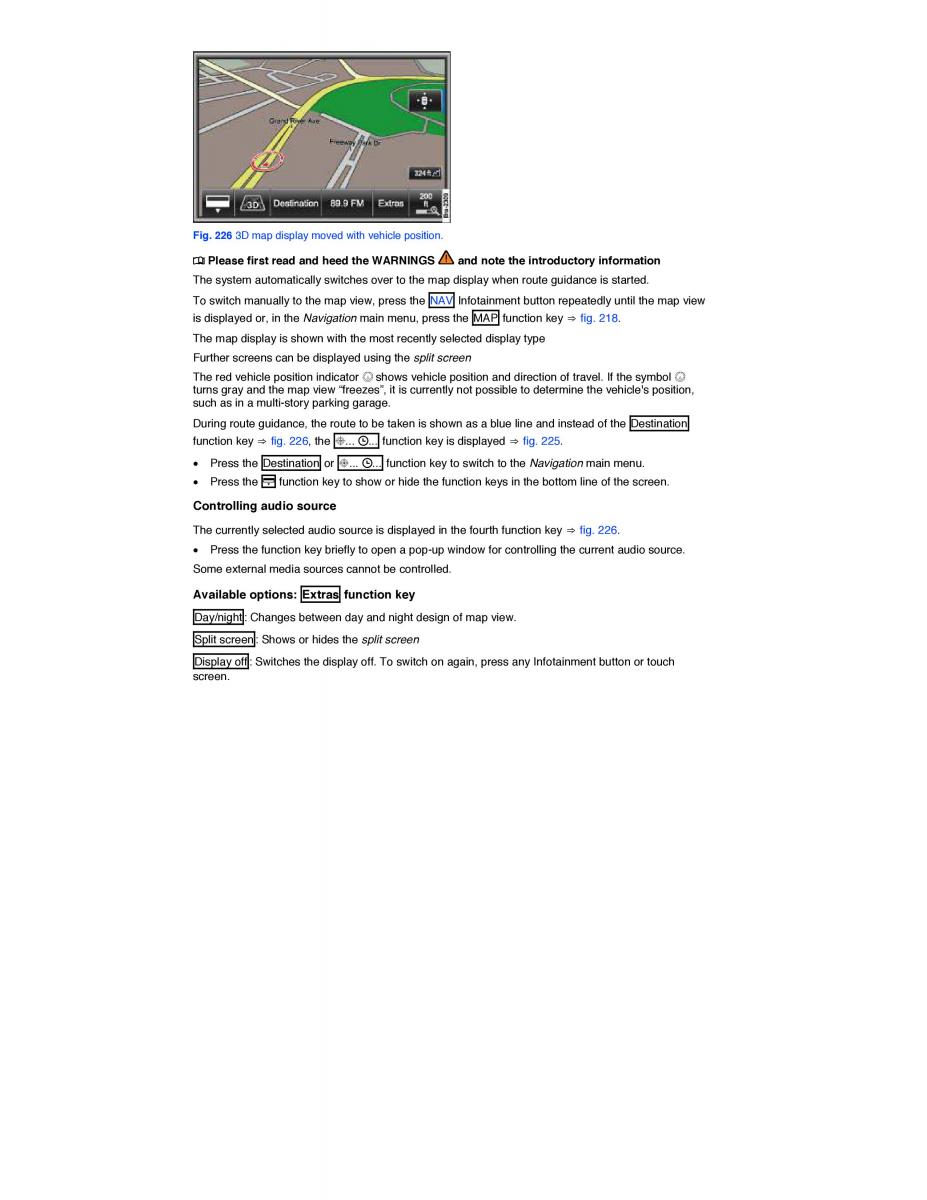

Fig. 226 3D map display moved with vehicle position. ¤ Please first read and heed the WARNINGS and note the introductory information The system automatically switches over to the map display when route guidance is started. To switch manually to the map view, press the NAV Infotainment button repeatedly until the map view is displayed or, in the Navigation main menu, press the MAP function key ⇒ fig. 218. The map display is shown with the most recently selected display type Further screens can be displayed using the split screen The red vehicle position indicator 9 shows vehicle position and direction of travel. If the symbol 9 turns gray and the map view “freezes”, it is currently not possible to determine the vehicle's position, such as in a multi-story parking garage. During route guidance, the route to be taken is shown as a blue line and instead of the Destination function key ⇒ fig. 226, the . . function key is displayed ⇒ fig. 225. x Press the Destination or . . function key to switch to the Navigation main menu. x Press the8 function key to show or hide the function keys in the bottom line of the screen. Controlling audio source The currently selected audio source is displayed in the fourth function key ⇒ fig. 226. x Press the function key briefly to open a pop-up window for controlling the current audio source. Some external media sources cannot be controlled. Available options: Extras function key Day/night: Changes between day and night design of map view. Split screen: Shows or hides the split screen Display off: Switches the display off. To switch on again, press any Infotainment button or touch screen.
