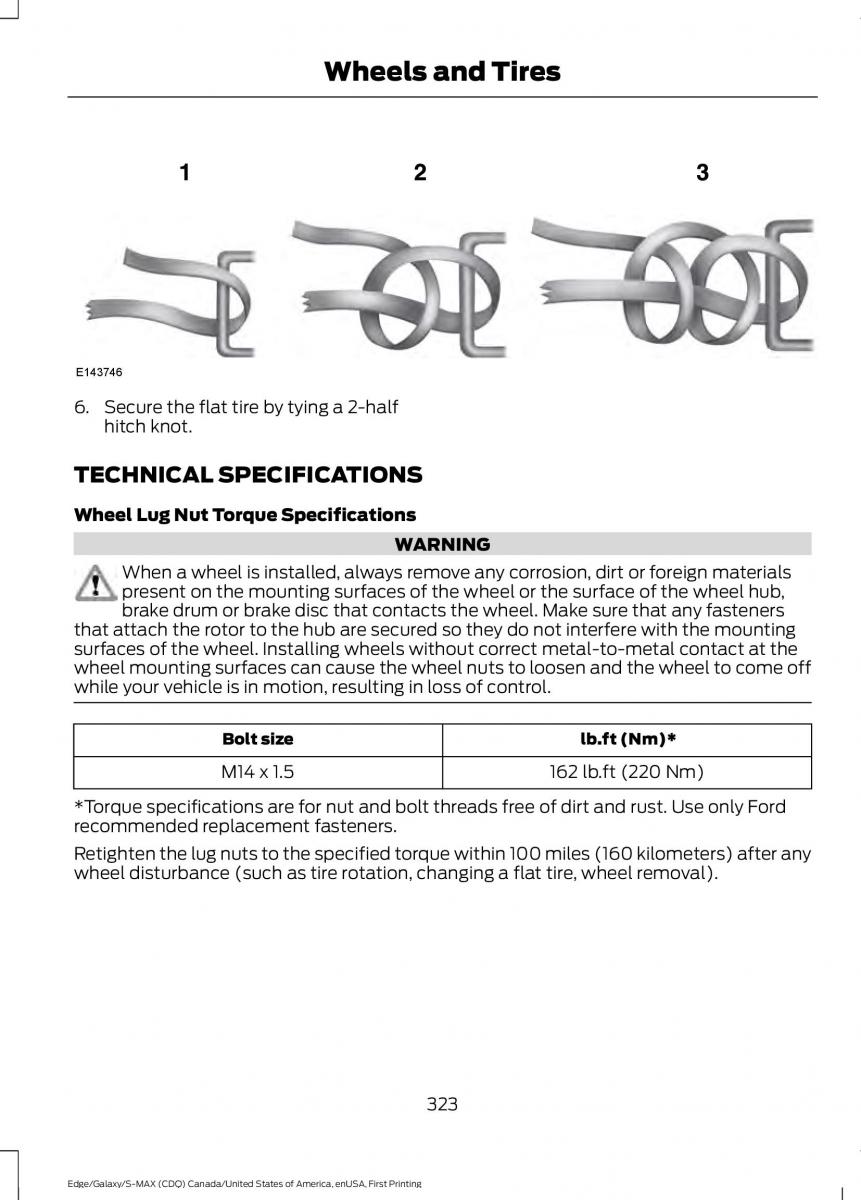

Wheels and Tires E143746 6. Secure the flat tire by tying a 2-half hitch knot. TECHNICAL SPECIFICATIONS Wheel Lug Nut Torque Specifications WARNING When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure that any fasteners that attach the rotor to the hub are secured so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal contact at the wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting in loss of control. Bolt size lb.ft (Nm)* M14 x 1.5 162 lb.ft (220 Nm) *Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any wheel disturbance (such as tire rotation, changing a flat tire, wheel removal). 323 Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
