owners manual Ford Edge

all ratings: 0 average rating: 5

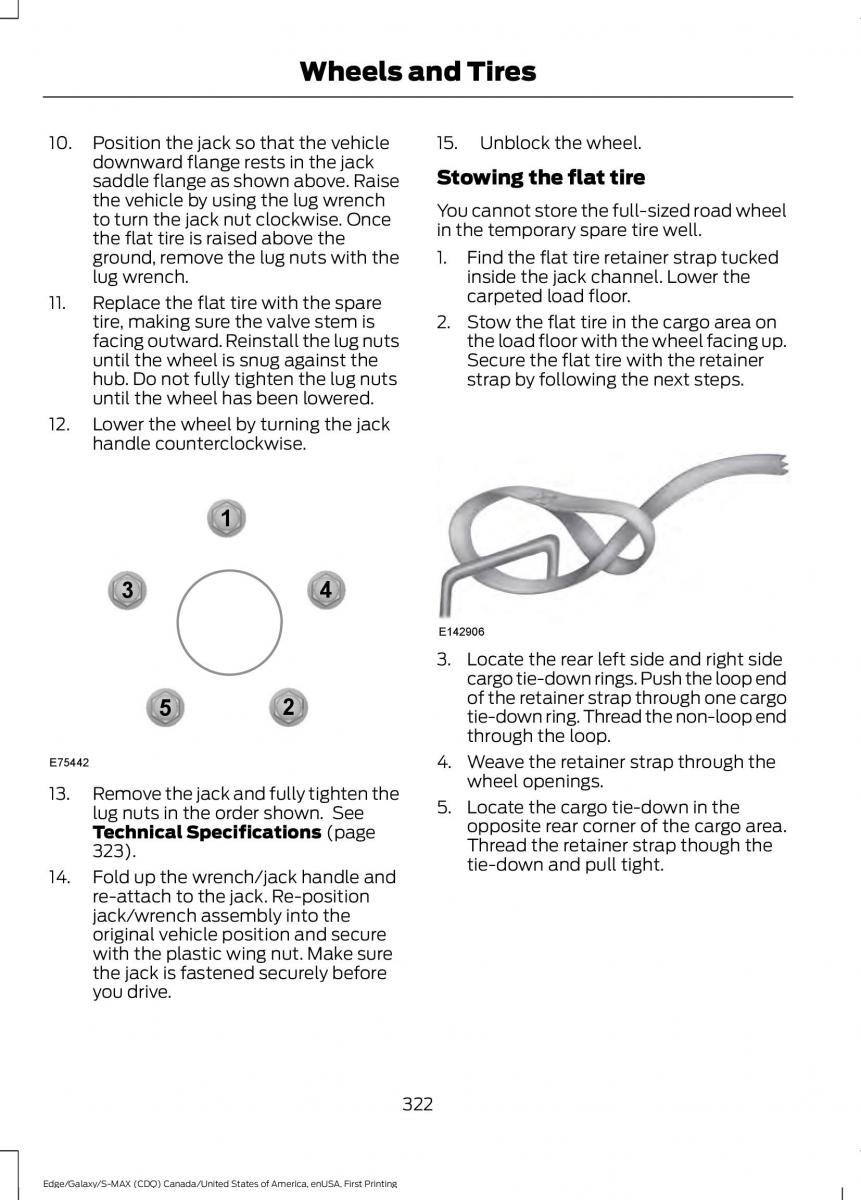

Wheels and Tires 10. Position the jack so that the vehicle 15. Unblock the wheel. downward flange rests in the jack Stowing the flat tire saddle flange as shown above. Raise the vehicle by using the lug wrench You cannot store the full-sized road wheel to turn the jack nut clockwise. Once in the temporary spare tire well. the flat tire is raised above the ground, remove the lug nuts with the 1. Find the flat tire retainer strap tucked lug wrench. inside the jack channel. Lower the 11. Replace the flat tire with the spare carpeted load floor. tire, making sure the valve stem is 2. Stow the flat tire in the cargo area on facing outward. Reinstall the lug nuts the load floor with the wheel facing up. until the wheel is snug against the Secure the flat tire with the retainer hub. Do not fully tighten the lug nuts strap by following the next steps. until the wheel has been lowered. 12. Lower the wheel by turning the jack handle counterclockwise. 1 3 4 E142906 3. Locate the rear left side and right side cargo tie-down rings. Push the loop end of the retainer strap through one cargo 5 2 tie-down ring. Thread the non-loop end through the loop. E75442 4. Weave the retainer strap through the 13. Remove the jack and fully tighten the wheel openings. lug nuts in the order shown. See 5. Locate the cargo tie-down in the Technical Specifications (page opposite rear corner of the cargo area. 323). Thread the retainer strap though the 14. Fold up the wrench/jack handle and tie-down and pull tight. re-attach to the jack. Re-position jack/wrench assembly into the original vehicle position and secure with the plastic wing nut. Make sure the jack is fastened securely before you drive. 322 Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
