text version of content this owner's manual page from owners manual to the vehicle Opel Astra, year of production 2009 - 2015:

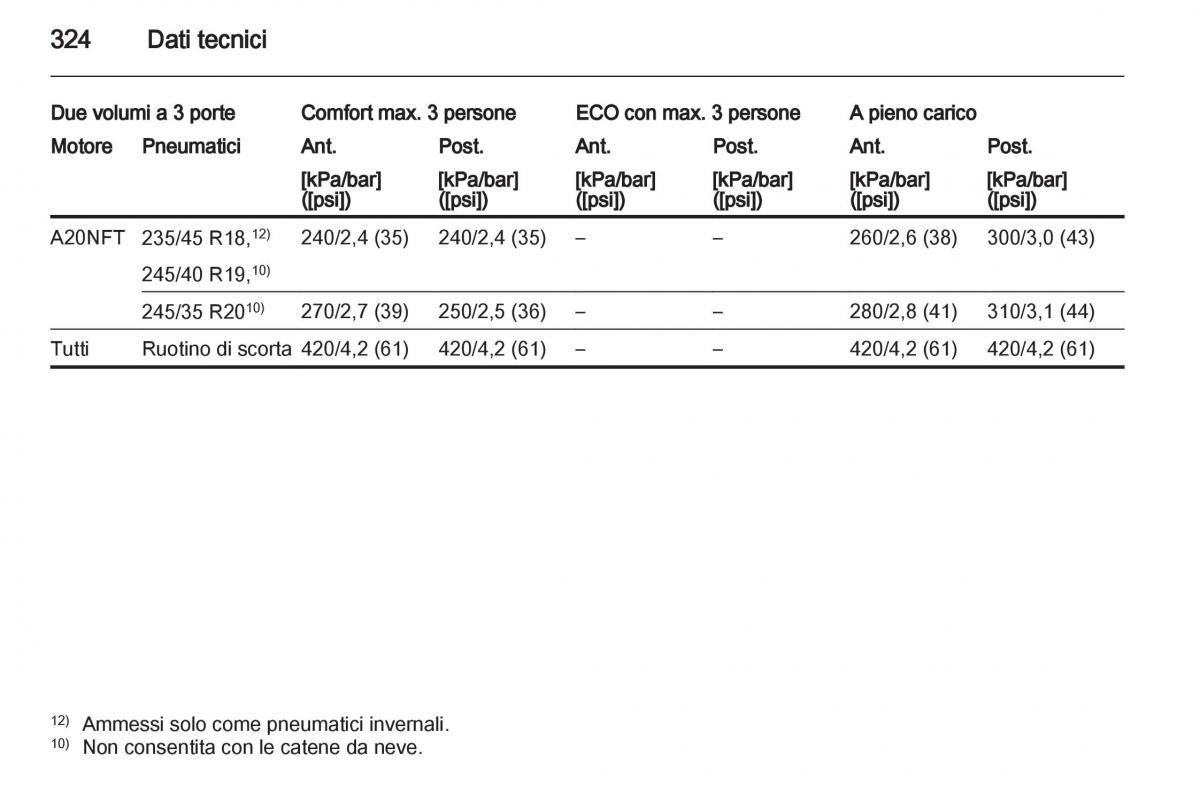

324 Dati tecnici
Due volumi a 3 porte Comfort max. 3 persone ECO con max. 3 persone A pieno carico
Motore Pneumatici Ant. Post. Ant. Post. Ant. Post.
[kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar]
([psi]) ([psi]) ([psi]) ([psi]) ([psi]) ([psi])
12)
A20NFT 235/45 R18, 240/2,4 (35) 240/2,4 (35) – – 260/2,6 (38) 300/3,0 (43)
10)
245/40 R19,
10)
245/35 R20 270/2,7 (39) 250/2,5 (36) – – 280/2,8 (41) 310/3,1 (44)
Tutti Ruotino di scorta 420/4,2 (61)420/4,2 (61) – – 420/4,2 (61) 420/4,2 (61)
12)
Ammessi solo come pneumatici invernali.
10)
Non consentita con le catene da neve.
