text version of content this owner's manual page from owners manual to the vehicle Opel Astra, year of production 2009 - 2015:

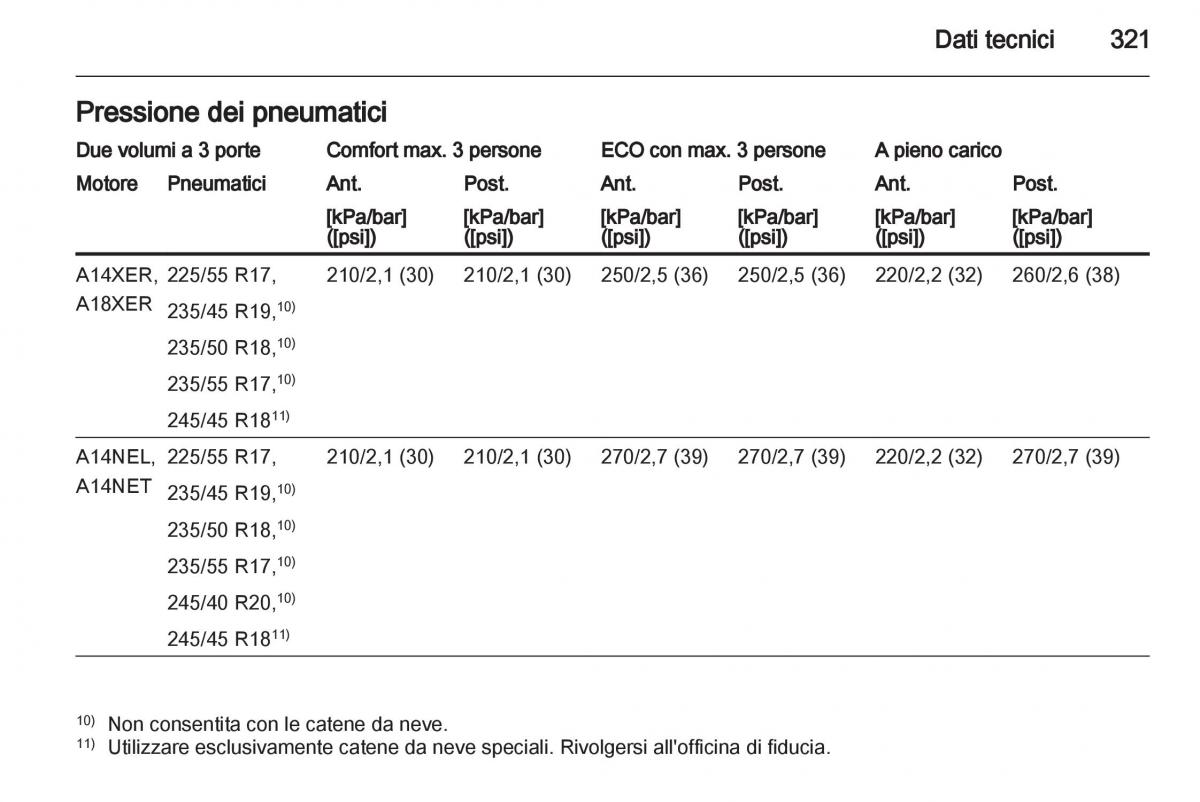

Dati tecnici 321
Pressione dei pneumatici
Due volumi a 3 porte Comfort max. 3 persone ECO con max. 3 persone A pieno carico
Motore Pneumatici Ant. Post. Ant. Post. Ant. Post.
[kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar] [kPa/bar]
([psi]) ([psi]) ([psi]) ([psi]) ([psi]) ([psi])
A14XER, 225/55 R17, 210/2,1 (30) 210/2,1 (30) 250/2,5 (36) 250/2,5 (36) 220/2,2 (32) 260/2,6 (38)
A18XER 10)
235/45 R19,
10)
235/50 R18,
10)
235/55 R17,
11)
245/45 R18
A14NEL, 225/55 R17, 210/2,1 (30) 210/2,1 (30) 270/2,7 (39) 270/2,7 (39) 220/2,2 (32) 270/2,7 (39)
A14NET 10)
235/45 R19,
10)
235/50 R18,
10)
235/55 R17,
10)
245/40 R20,
11)
245/45 R18
10)
Non consentita con le catene da neve.
11)
Utilizzare esclusivamente catene da neve speciali. Rivolgersi all'officina di fiducia.
