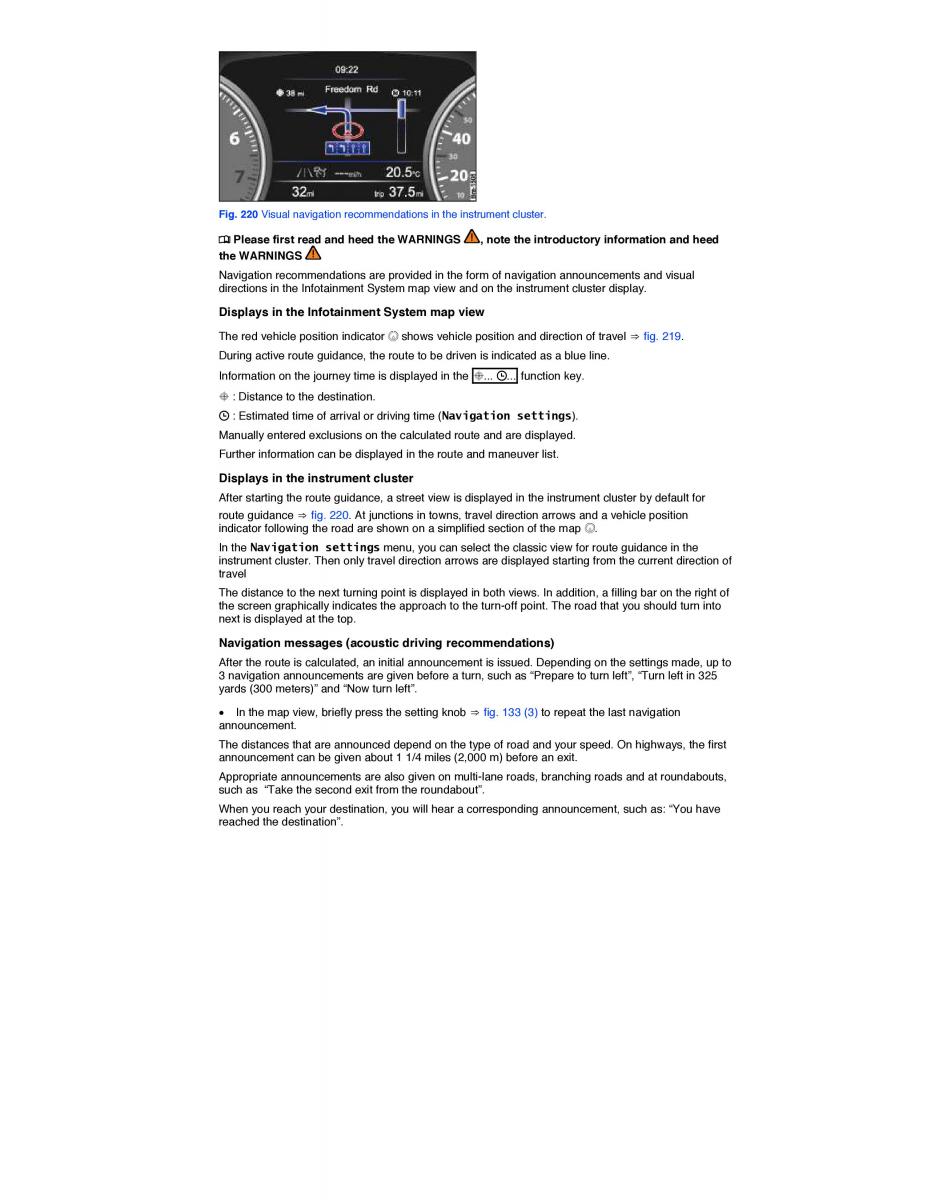

Fig. 220 Visual navigation recommendations in the instrument cluster. ¤ Please first read and heed the WARNINGS , note the introductory information and heed the WARNINGS Navigation recommendations are provided in the form of navigation announcements and visual directions in the Infotainment System map view and on the instrument cluster display. Displays in the Infotainment System map view The red vehicle position indicator 9 shows vehicle position and direction of travel ⇒ fig. 219. During active route guidance, the route to be driven is indicated as a blue line. Information on the journey time is displayed in the . . function key.  : Distance to the destination.  : Estimated time of arrival or driving time (Navigation settings). Manually entered exclusions on the calculated route and are displayed. Further information can be displayed in the route and maneuver list. Displays in the instrument cluster After starting the route guidance, a street view is displayed in the instrument cluster by default for route guidance ⇒ fig. 220. At junctions in towns, travel direction arrows and a vehicle position indicator following the road are shown on a simplified section of the map 9. In the Navigation settings menu, you can select the classic view for route guidance in the instrument cluster. Then only travel direction arrows are displayed starting from the current direction of travel The distance to the next turning point is displayed in both views. In addition, a filling bar on the right of the screen graphically indicates the approach to the turn-off point. The road that you should turn into next is displayed at the top. Navigation messages (acoustic driving recommendations) After the route is calculated, an initial announcement is issued. Depending on the settings made, up to 3 navigation announcements are given before a turn, such as “Prepare to turn left”, “Turn left in 325 yards (300 meters)” and “Now turn left”. x In the map view, briefly press the setting knob⇒ fig. 133 (3) to repeat the last navigation announcement. The distances that are announced depend on the type of road and your speed. On highways, the first announcement can be given about 1 1/4 miles (2,000 m) before an exit. Appropriate announcements are also given on multi-lane roads, branching roads and at roundabouts, such as “Take the second exit from the roundabout”. When you reach your destination, you will hear a corresponding announcement, such as: “You have reached the destination”.
