text version of content this owner's manual page from owners manual to the vehicle Hyundai i10, year of production 2013:

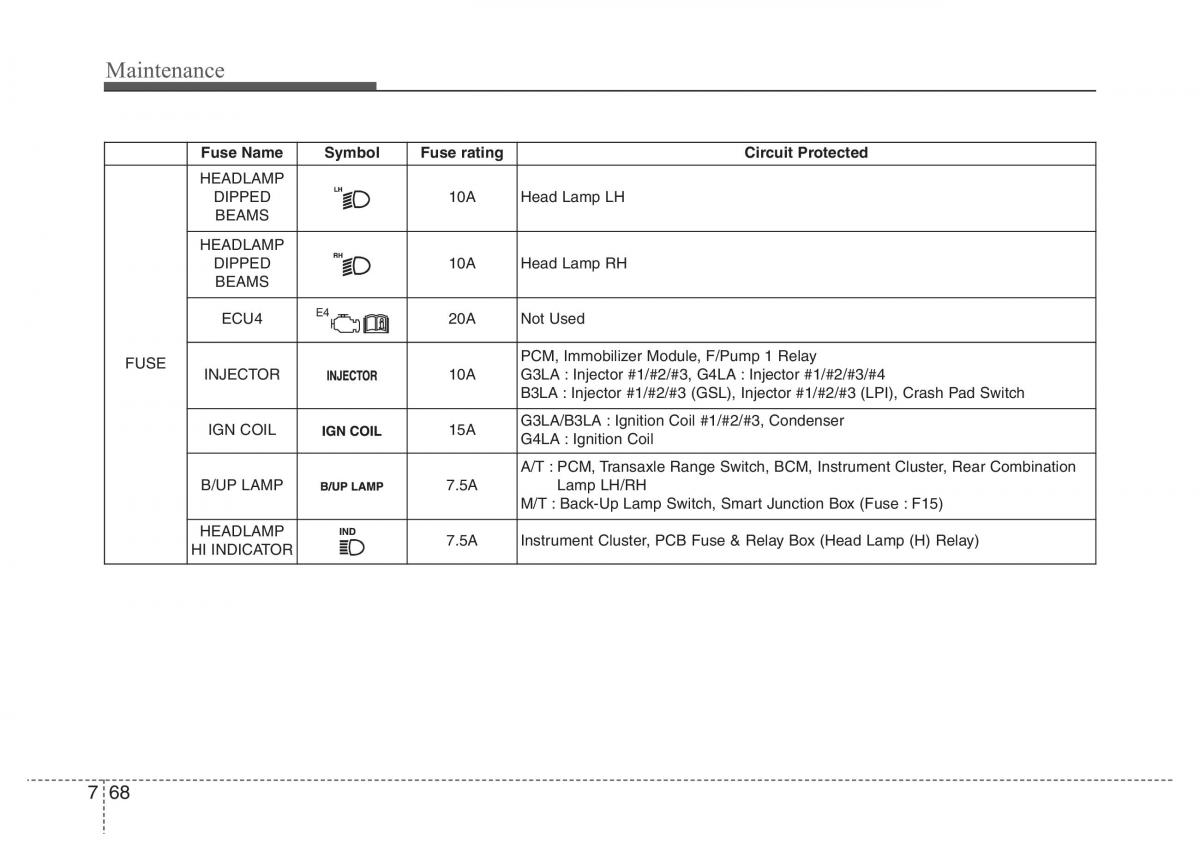

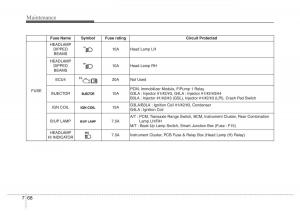

Maintenance Fuse Name Symbol Fuse rating Circuit Protected HEADLAMP DIPPED 10A Head Lamp LH BEAMS HEADLAMP DIPPED 10A Head Lamp RH BEAMS ECU4 E4 20A Not Used FUSE PCM, Immobilizer Module, F/Pump 1 Relay INJECTOR 10A G3LA :Injector #1/#2/#3, G4LA : Injector #1/#2/#3/#4 B3LA : Injector #1/#2/#3 (GSL), Injector #1/#2/#3 (LPI), Crash Pad Switch IGN COIL 15A G3LA/B3LA :Ignition Coil #1/#2/#3, Condenser G4LA :Ignition Coil A/T : PCM, Transaxle Range Switch, BCM, Instrument Cluster, Rear Combination B/UP LAMP 7.5A Lamp LH/RH M/T : Back-Up Lamp Switch, Smart Junction Box (Fuse : F15) HEADLAMP 7.5A Instrument Cluster, PCB Fuse & Relay Box (Head Lamp (H) Relay) HI INDICATOR 7 68

Download PDF

Click here to download a pdf file with an instruction manual for Hyundai i10
year of production from: 2013

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Hyundai i10 II 2 owners manual
pages 317 - 323

Hyundai i10 II 2 owners manual
page 320 / 343

this site is maintained by advertising - for view instructions, turn off ad blocking in your browser

Hyundai i10 II 2 owners manual / page 320
