text version of content this owner's manual page from owners manual to the vehicle Hyundai i10, year of production 2013:

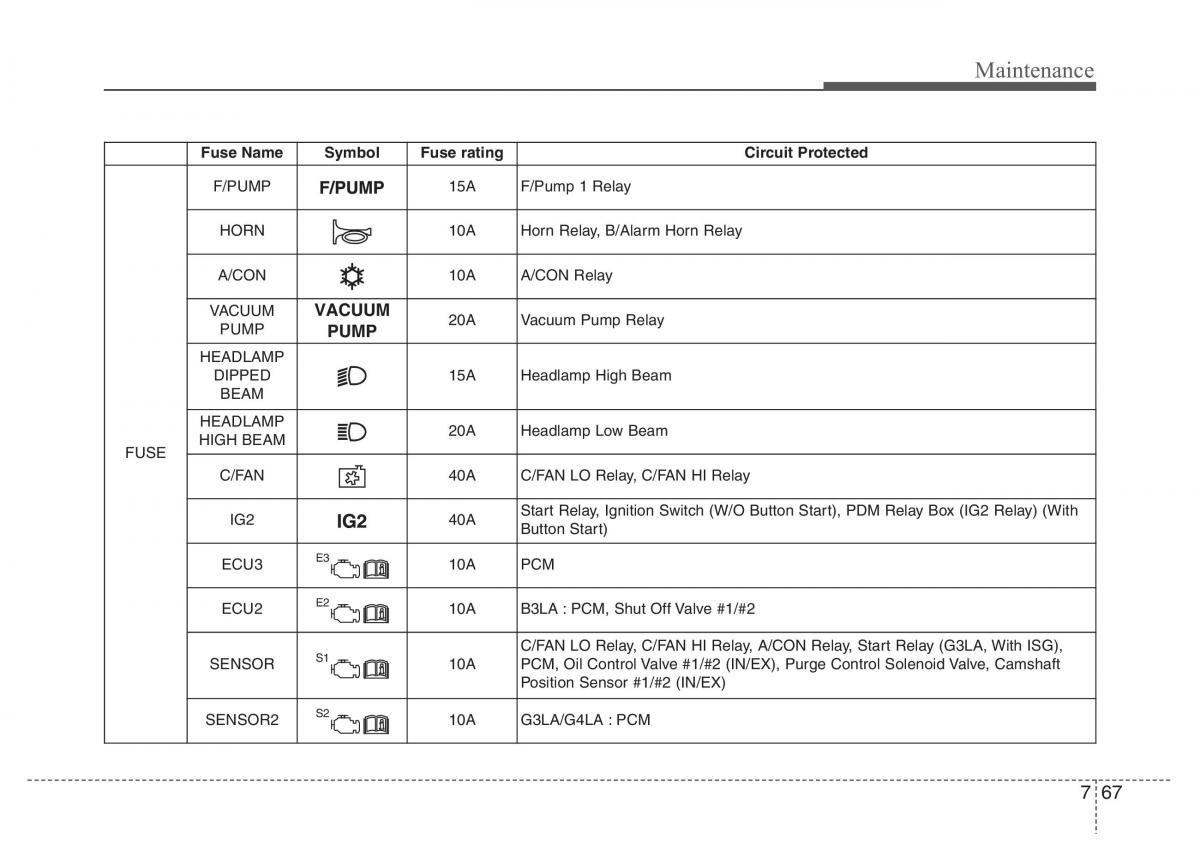

Maintenance Fuse Name Symbol Fuse rating Circuit Protected F/PUMP 15A F/Pump 1 Relay HORN 10A Horn Relay, B/Alarm Horn Relay A/CON 10A A/CON Relay VACUUM VACUUM 20A Vacuum Pump Relay PUMP PUMP HEADLAMP DIPPED 15A Headlamp High Beam BEAM HEADLAMP 20A Headlamp Low Beam FUSE HIGH BEAM C/FAN 40A C/FAN LO Relay, C/FAN HI Relay IG2 40A Start Relay, Ignition Switch (W/O Button Start), PDM Relay Box (IG2 Relay) (With Button Start) ECU3 E3 10A PCM ECU2 E2 10A B3LA : PCM, Shut Off Valve #1/#2 C/FAN LO Relay, C/FAN HI Relay, A/CON Relay, Start Relay (G3LA, With ISG), SENSOR S1 10A PCM, Oil Control Valve #1/#2 (IN/EX), Purge Control Solenoid Valve, Camshaft Position Sensor #1/#2 (IN/EX) SENSOR2 S2 10A G3LA/G4LA :PCM 767
