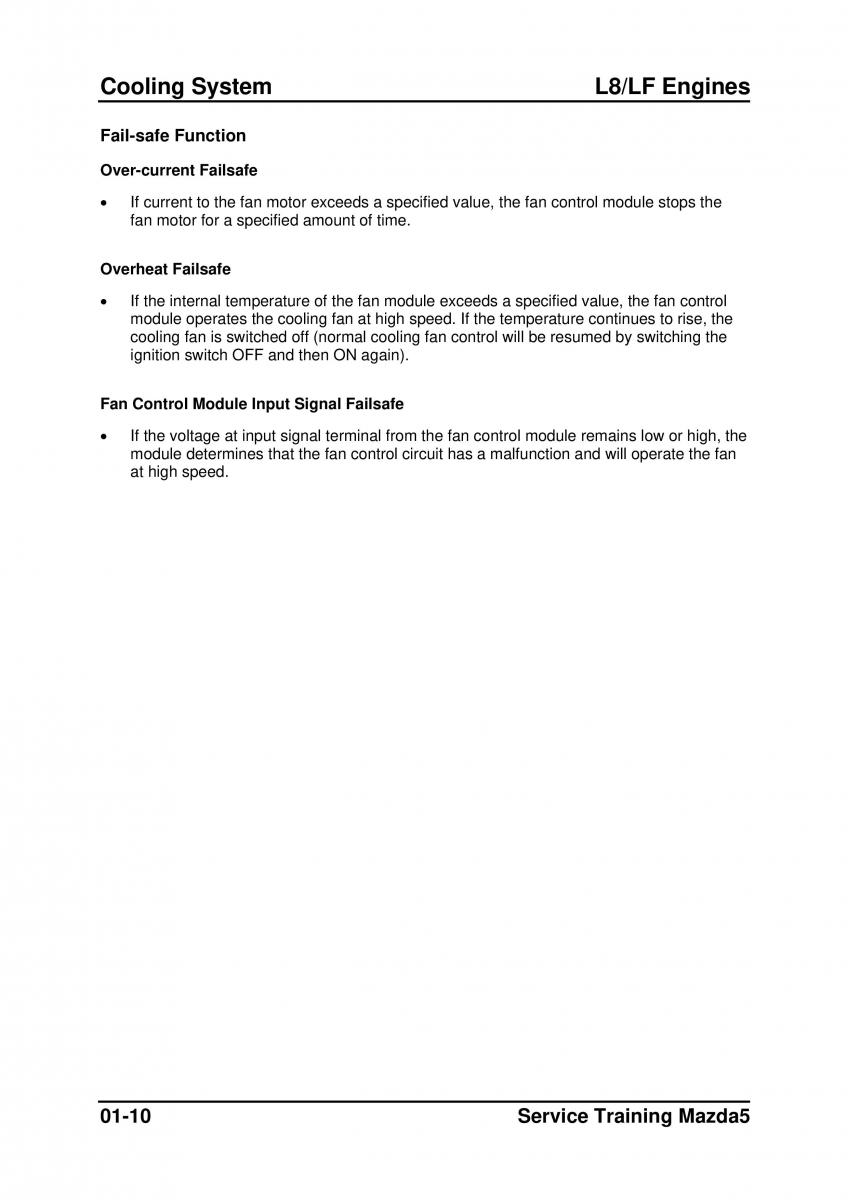

Cooling System L8/LF Engines
Fail-safe Function
Over-current Failsafe
• If current to the fan motor exceeds a specified value, the fan control module stops the
fan motor for a specified amount of time.
Overheat Failsafe
• If the internal temperature of the fan module exceeds a specified value, the fan control
module operates the cooling fan at high speed. If the temperature continues to rise, the
cooling fan is switched off (normal cooling fan control will be resumed by switching the
ignition switch OFF and then ON again).
Fan Control Module Input Signal Failsafe
• If the voltage at input signal terminal from the fan control module remains low or high, the
module determines that the fan control circuit has a malfunction and will operate the fan
at high speed.
01-10 Service Training Mazda5
