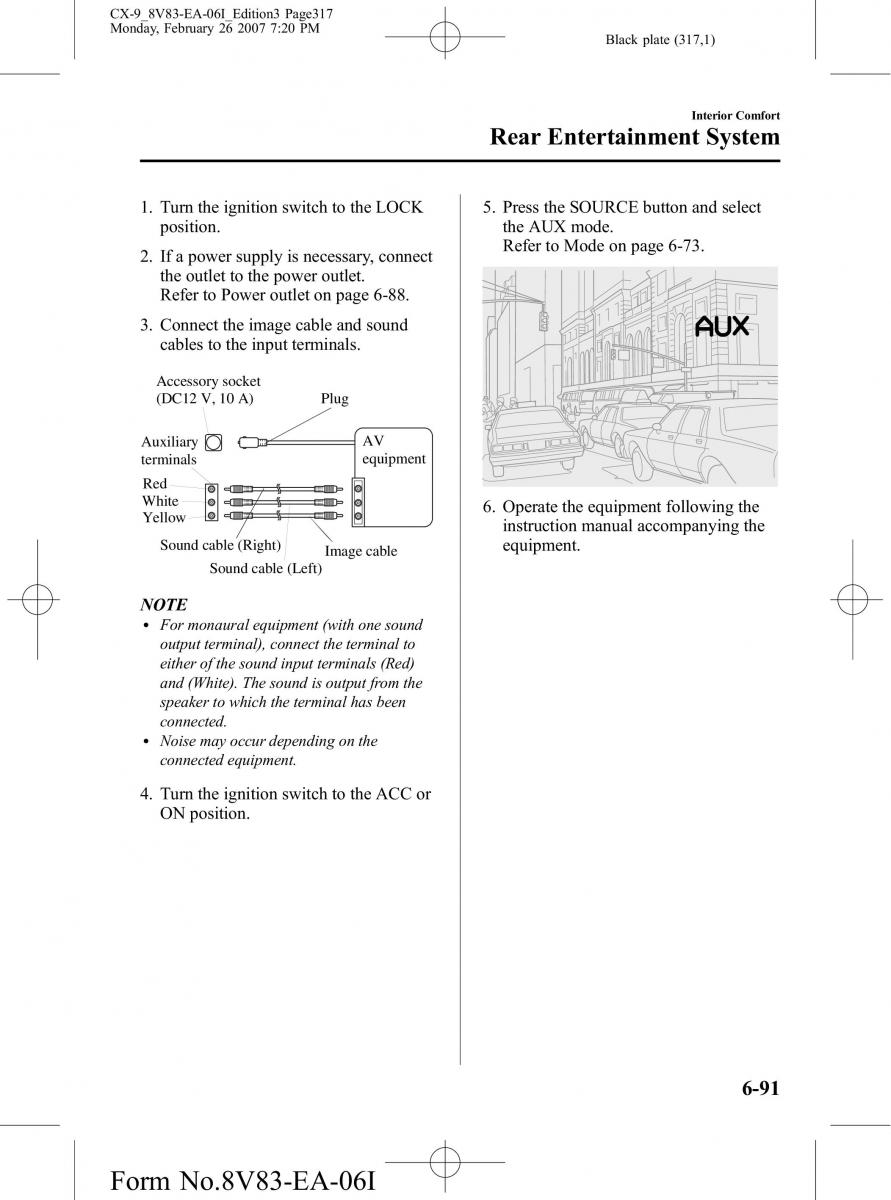

CX-9_8V83-EA-06I_Edition3 Page317
Monday, February 26 2007 7:20 PM
Black plate (317,1)
Interior Comfort
RearEntertainment System
1. Turn the ignition switch to the LOCK 5. Press the SOURCE button and select
position. the AUXmode.
2. If a power supply is necessary, connect Refer to Mode on page 6-73.
the outlet to the power outlet.
Refer to Power outlet on page 6-88.
3. Connect the image cable and sound
cables to the input terminals.
Accessory socket
(DC12 V, 10 A) Plug
Auxiliary AV
terminals equipment
Red
White 6. Operate the equipment following the
Yellow instruction manual accompanying the
Sound cable (Right) Image cable equipment.
Sound cable (Left)
NOTE
l Formonauralequipment (with one sound
output terminal), connect the terminal to
either of the sound input terminals (Red)
and (White). The sound is output from the
speaker to which the terminal has been
connected.
l Noise may occurdepending on the
connected equipment.
4. Turn the ignition switch to the ACC or
ONposition.
6-91
Form No.8V83-EA-06I
