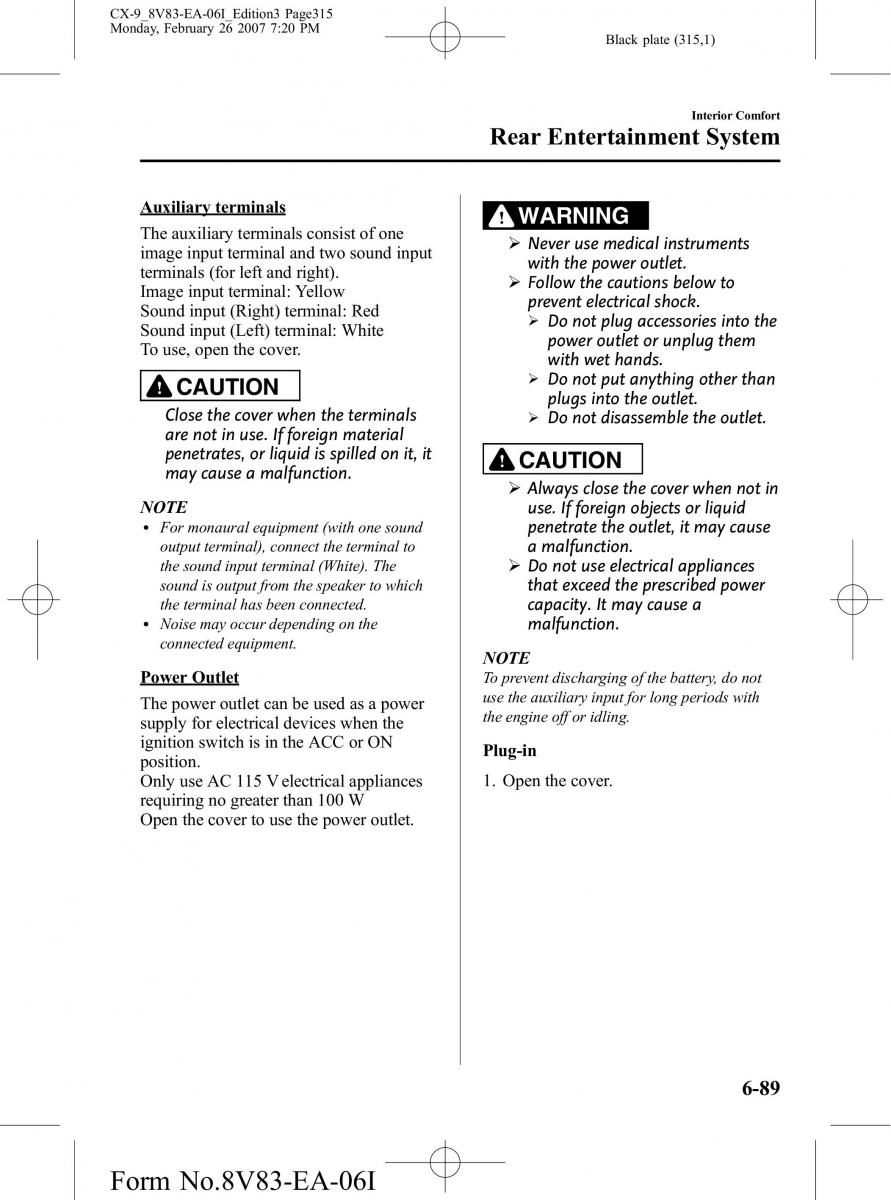

CX-9_8V83-EA-06I_Edition3 Page315
Monday, February 26 2007 7:20 PM
Black plate (315,1)
Interior Comfort
RearEntertainment System
Auxiliary terminals WARNING
Theauxiliary terminals consist of one ØNeverusemedicalinstruments
image input terminal and two sound input with the power outlet.
terminals (for left and right). ØFollowthecautionsbelowto
Image input terminal: Yellow prevent electrical shock.
Soundinput (Right) terminal: Red Ø Donotplugaccessories into the
Soundinput (Left) terminal: White power outlet or unplug them
Touse, open the cover. with wet hands.
CAUTION Ø Donotputanythingotherthan
plugs into the outlet.
Close the cover when the terminals Ø Donotdisassembletheoutlet.
are not in use. If foreign material
penetrates, or liquid is spilled on it, it CAUTION
maycauseamalfunction. ØAlwaysclosethecoverwhennotin
NOTE use. If foreign objects or liquid
l Formonauralequipment (with one sound penetrate the outlet, it may cause
output terminal), connect the terminal to amalfunction.
the sound input terminal (White). The ØDonotuseelectrical appliances
sound is output from the speaker to which that exceed the prescribed power
the terminal has been connected. capacity. It may cause a
l Noise may occurdepending on the malfunction.
connected equipment.
NOTE
PowerOutlet To prevent discharging of the battery, do not
Thepoweroutlet can be used as a power use the auxiliary input for long periods with
supply for electrical devices when the the engine off or idling.
ignition switch is in the ACC or ON Plug-in
position.
Only use AC 115 Velectrical appliances 1. Open the cover.
requiring no greater than 100 W
Openthecover to use the power outlet.
6-89
Form No.8V83-EA-06I
