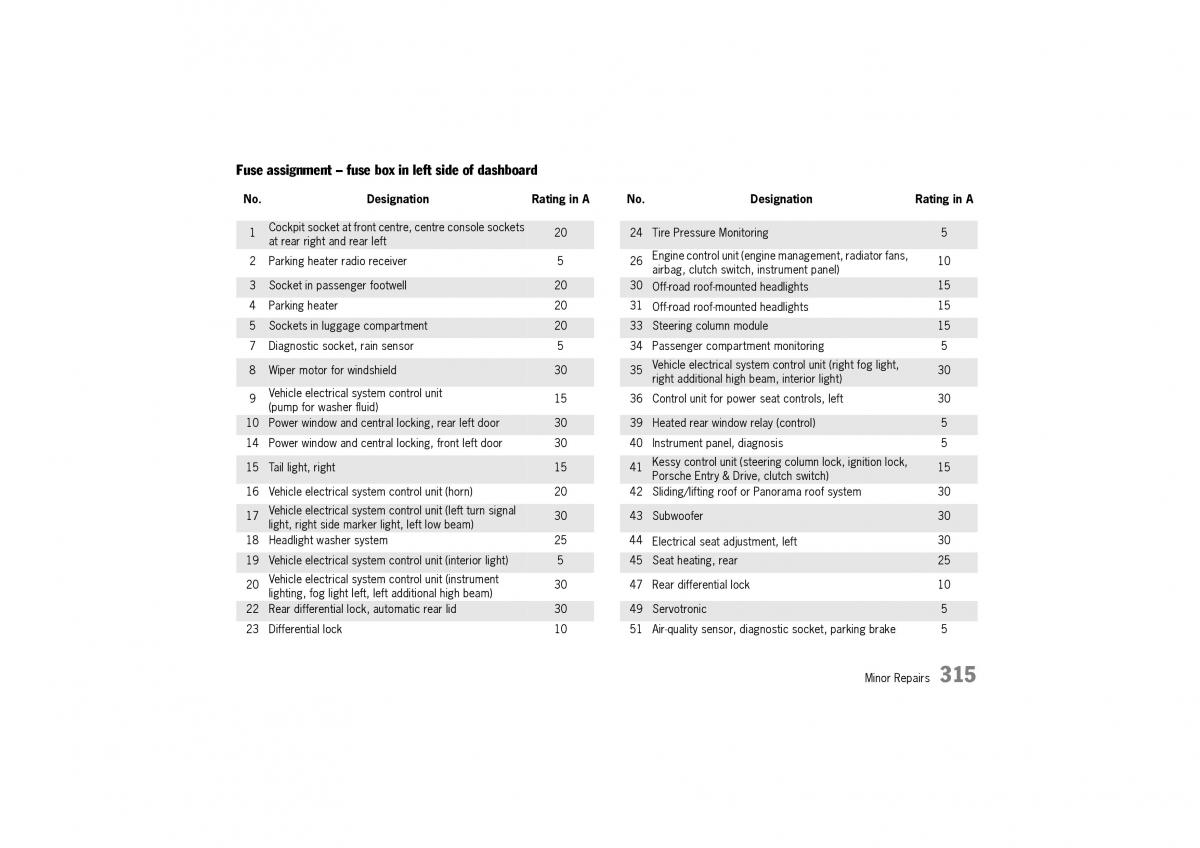

Fuse assignment – fuse box in left side of dashboard
No. Designation Rating in ANo. Designation Rating in A
1 Cockpit socket at front centre, centre console sockets 2024 Tire Pressure Monitoring5
at rear right and rear left
2 Parking heater radio receiver5 26 Engine control unit (engine management, radiator fans, 10
airbag, clutch switch, instrument panel)
3 Socket in passenger footwell20 30 Off-road roof-mounted headlights15
4 Parking heater 20 31 Off-road roof-mounted headlights15
5 Sockets in luggage compartment20 33 Steering column module 15
7 Diagnostic socket, rain sensor5 34 Passenger compartment monitoring5
8 Wiper motor for windshield 30 35 Vehicle electrical system control unit (right fog light, 30
right additional high beam, interior light)
9 Vehicle electrical system control unit 1536 Control unit for power seat controls, left30
(pump for washer fluid)
10 Power window and central locking, rear left door3039 Heated rear window relay (control)5
14 Power window and central locking, front left door3040 Instrument panel, diagnosis5
15 Tail light, right 15 41 Kessy control unit (steering co lumn lock, ignition lock, 15
Porsche Entry & Drive, clutch switch)
16 Vehicle electrical system control unit (horn)2042 Sliding/lifting roof or Panorama roof system30
17 Vehicle electrical system control unit (left turn signal 3043 Subwoofer30
light, right side marker light, left low beam)
18 Headlight washer system 25 44 Electrical seat adjustment, left30
19 Vehicle electrical system control unit (interior light)545 Seat heating, rear25
20 Vehicle electrical system control unit (instrument 3047 Rear differential lock10
lighting, fog light left, left additional high beam)
22 Rear differential lock, automatic rear lid3049 Servotronic 5
23 Differential lock 10 51 Air-quality sensor, diagnostic socket, parking brake5
Minor Repairs 315
