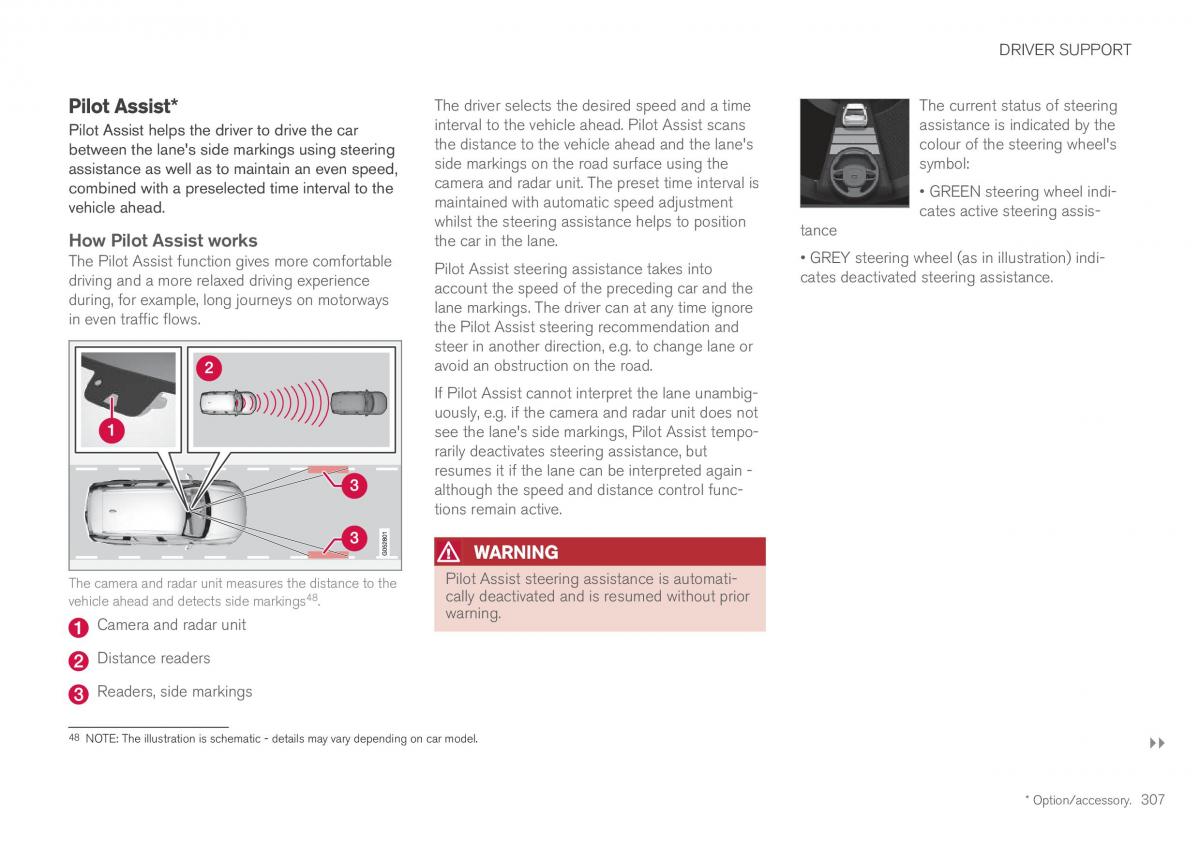

DRIVER SUPPORT
Pilot Assist* The driver selects the desired speed and a time The current status of steering
Pilot Assist helps the driver to drive the car interval to the vehicle ahead. Pilot Assist scans assistance is indicated by the
between the lanes side markings using steering the distance to the vehicle ahead and the lanes colour of the steering wheels
assistance as well as to maintain an even speed, side markings on the road surface using the symbol:
combined with a preselected time interval to the camera and radar unit. The preset time interval is GREEN steering wheel indi-
vehicle ahead. maintained with automatic speed adjustment cates active steering assis-
whilst the steering assistance helps to position tance
How Pilot Assist works the car in the lane.
The Pilot Assist function gives more comfortable Pilot Assist steering assistance takes into GREY steering wheel (as in illustration) indi-
driving and a more relaxed driving experience account the speed of the preceding car and the cates deactivated steering assistance.
during, for example, long journeys on motorways lane markings. The driver can at any time ignore
in even traffic flows. the Pilot Assist steering recommendation and
steer in another direction, e.g. to change lane or
avoid an obstruction on the road.
If Pilot Assist cannot interpret the lane unambig-
uously, e.g. if the camera and radar unit does not
see the lanes side markings, Pilot Assist tempo-
rarily deactivates steering assistance, but
resumes it if the lane can be interpreted again -
although the speed and distance control func-
tions remain active.
WARNING
The camera and radar unit measures the distance to thePilot Assist steering assistance is automati-
48 cally deactivated and is resumed without prior
vehicle ahead and detects side markings . warning.
Camera and radar unit
Distance readers
Readers, side markings
48 NOTE: The illustration is schematic - details may vary depending on car model.
}}
* Option/accessory. 307
