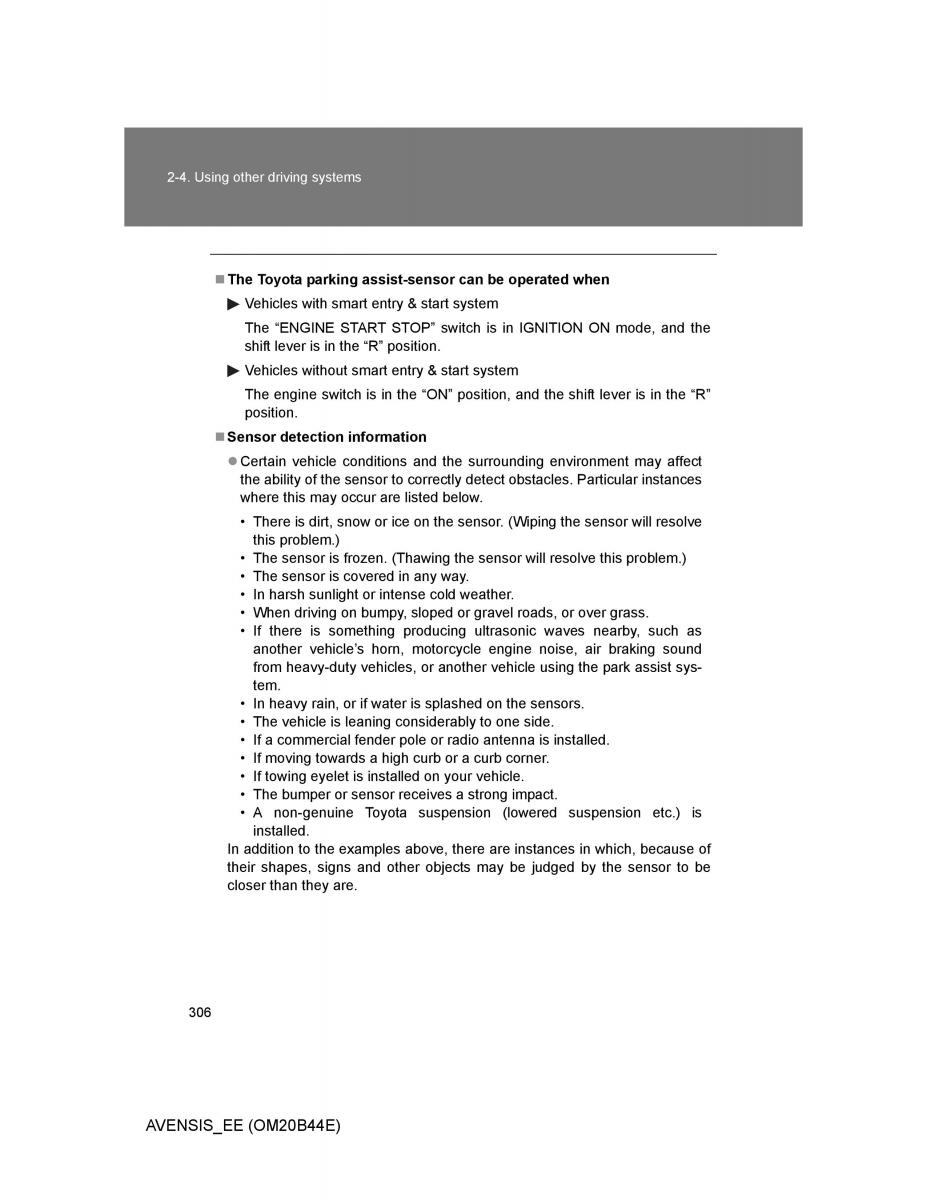

2-4. Using other driving systems
The Toyota parking assist-sensor can be operated when
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode, and the
shift lever is in the “R” position.
Vehicles without smart entry & start system
The engine switch is in the “ON” position, and the shift lever is in the “R”
position.
Sensor detection information
Certain vehicle conditions and the surrounding environment may affect
the ability of the sensor to correctly detect obstacles. Particular instances
where this may occur are listed below.
There is dirt, snow or ice on the sensor. (Wiping the sensor will resolve
this problem.)
The sensor is frozen. (Thawing the sensor will resolve this problem.)
The sensor is covered in any way.
In harsh sunlight or intense cold weather.
When driving on bumpy, sloped or gravel roads, or over grass.
If there is something producing ultrasonic waves nearby, such as
another vehicle’s horn, motorcycle engine noise, air braking sound
from heavy-duty vehicles, or another vehicle using the park assist sys-
tem.
In heavy rain, or if water is splashed on the sensors.
The vehicle is leaning considerably to one side.
If a commercial fender pole or radio antenna is installed.
If moving towards a high curb or a curb corner.
If towing eyelet is installed on your vehicle.
The bumper or sensor receives a strong impact.
A non-genuine Toyota suspension (lowered suspension etc.) is
installed.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by the sensor to be
closer than they are.
306
AVENSIS_EE (OM20B44E)
