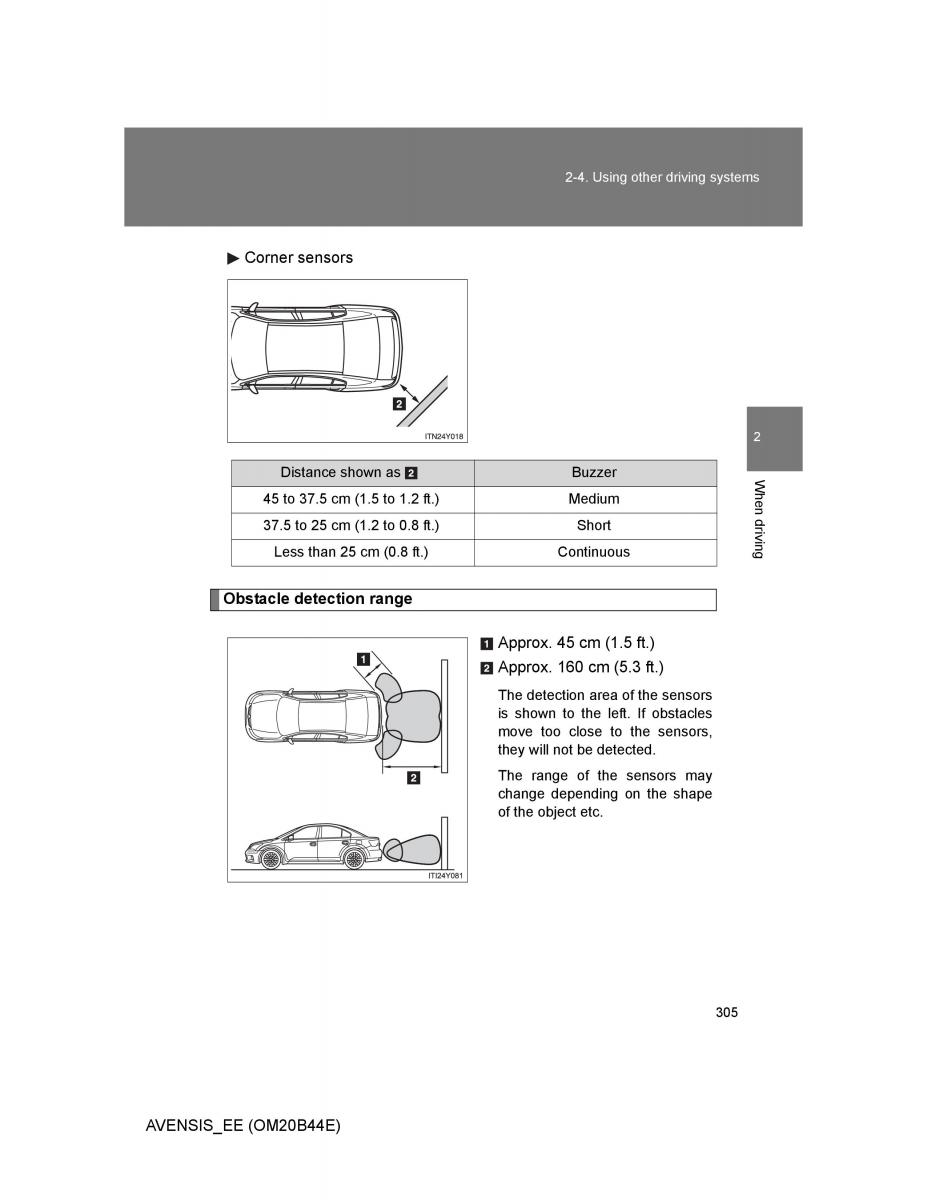

2-4. Using other driving systems
Corner sensors
2
Distance shown as Buzzer W
45 to 37.5 cm (1.5 to 1.2 ft.) Medium hen drivi
37.5 to 25 cm (1.2 to 0.8 ft.) Short
n
Less than 25 cm (0.8 ft.) Continuous g
Obstacle detection range
Approx. 45 cm (1.5 ft.)
Approx. 160 cm (5.3 ft.)
The detection area of the sensors
is shown to the left. If obstacles
move too close to the sensors,
they will not be detected.
The range of the sensors may
change depending on the shape
of the object etc.
305
AVENSIS_EE (OM20B44E)
