text version of content this owner's manual page from owners manual to the vehicle Peugeot Traveller, year of production 2016:

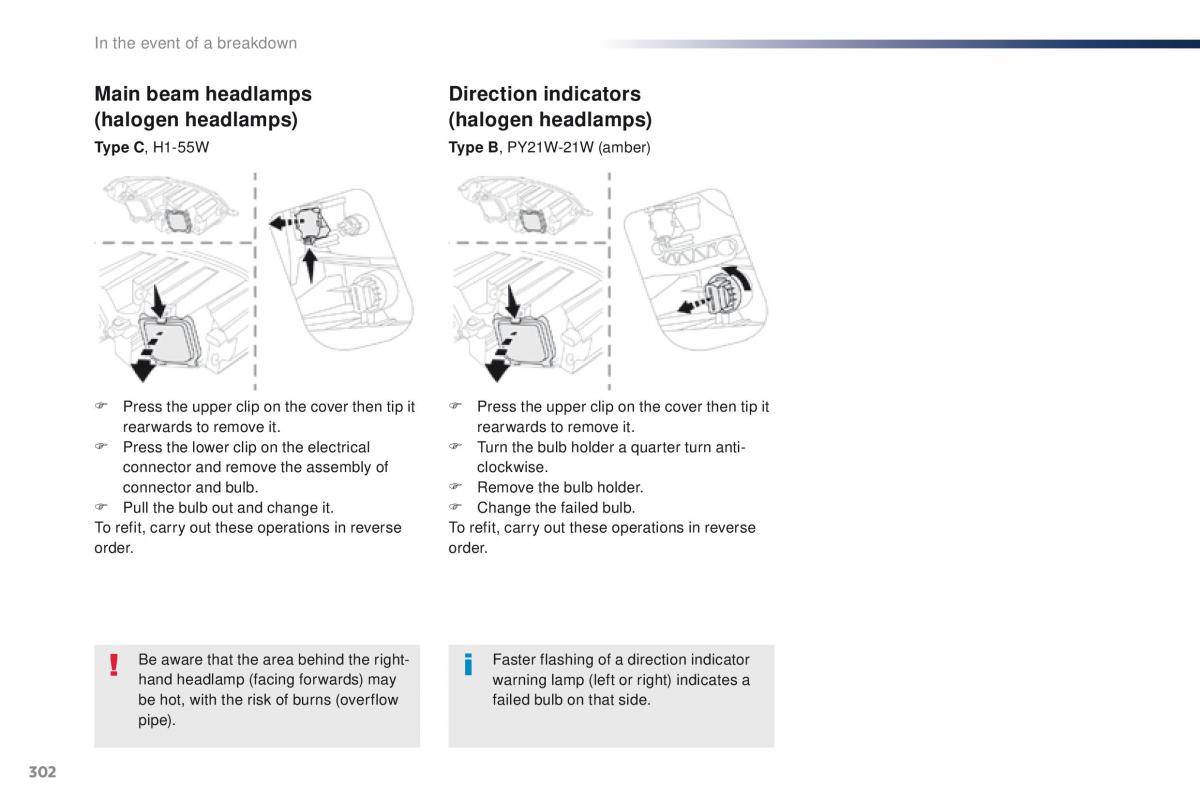

In the event of a breakdown
Main beam headlamps Direction indicators
(halogen headlamps) (halogen headlamps)
Type C, H1-55W Type B, PY21W-21W (amber)
F Press the upper clip on the cover then tip it F Press the upper clip on the cover then tip it
rearwards to remove it. rearwards to remove it.
F Press the lower clip on the electrical F Turn the bulb holder a quarter turn anti-
connector and remove the assembly of clockwise.
connector and bulb. F Remove the bulb holder.
F Pull the bulb out and change it.F Change the failed bulb.
To refit, carry out these operations in reverse To refit, carry out these operations in reverse
order. order.
Be aware that the area behind the right-Faster flashing of a direction indicator
hand headlamp (facing forwards) may warning lamp (left or right) indicates a
be hot, with the risk of burns (overflow failed bulb on that side.
pipe).
302
Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016
