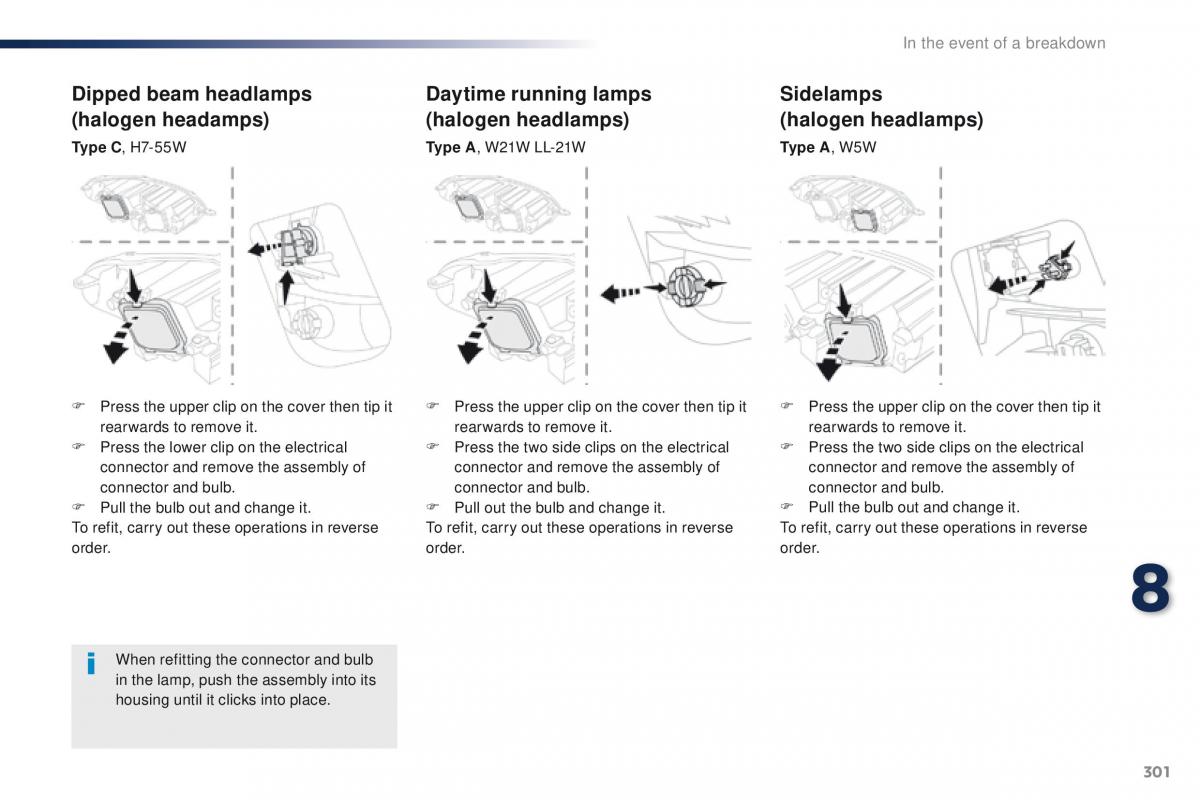

In the event of a breakdown
Dipped beam headlamps Daytime running lamps Sidelamps
(halogen headamps) (halogen headlamps) (halogen headlamps)
Type C, H7-55W Type A, W21W LL-21W Type A, W5W
F Press the upper clip on the cover then tip it F Press the upper clip on the cover then tip it F Press the upper clip on the cover then tip it
rearwards to remove it. rearwards to remove it. rearwards to remove it.
F Press the lower clip on the electrical F Press the two side clips on the electrical F Press the two side clips on the electrical
connector and remove the assembly of connector and remove the assembly of connector and remove the assembly of
connector and bulb. connector and bulb. connector and bulb.
F Pull the bulb out and change it.F Pull out the bulb and change it.F Pull the bulb out and change it.
To refit, carry out these operations in reverse To refit, carry out these operations in reverse To refit, carry out these operations in reverse
order. order. order. 8
When refitting the connector and bulb
in the lamp, push the assembly into its
housing until it clicks into place.
301
Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016
