text version of content this owner's manual page from owners manual to the vehicle Chevrolet Suburban, year of production 2015:

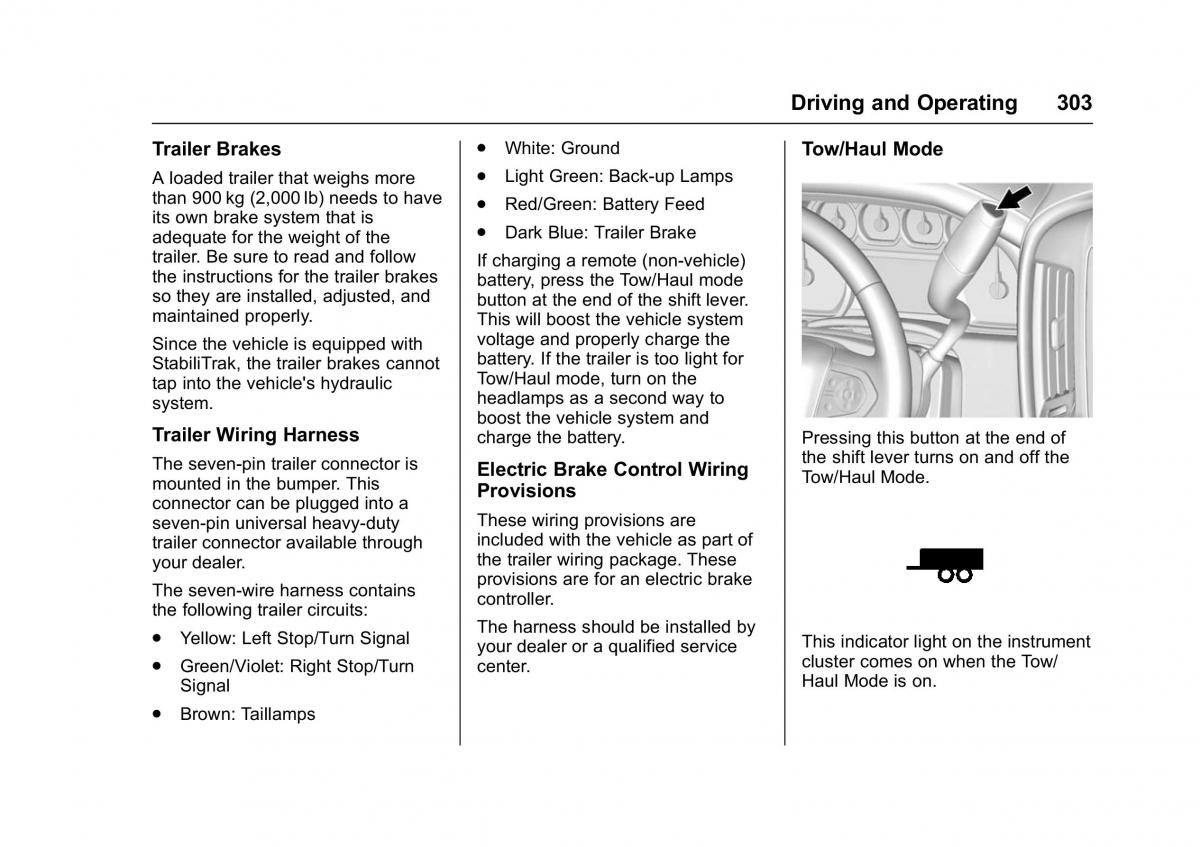

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/ Mexico-9159366) - 2016 - crc - 5/20/15 Driving and Operating 303 Trailer Brakes . White: Ground Tow/Haul Mode Aloaded trailer that weighs more.Light Green: Back-up Lamps than 900kg (2,000lb) needs to have.Red/Green: Battery Feed its own brake system that is. adequate for the weight of theDark Blue: Trailer Brake trailer. Be sure to read and followIf charging a remote (non-vehicle) the instructions for the trailer brakesbattery, press the Tow/Haul mode so they are installed, adjusted, andbutton at the end of the shift lever. maintained properly. This will boost the vehicle system Since the vehicle is equipped withvoltage and properly charge the StabiliTrak, the trailer brakes cannotbattery. If the trailer is too light for tap into the vehicle's hydraulicTow/Haul mode, turn on the system. headlamps as a second way to boost the vehicle system and Trailer Wiring Harness charge the battery. Pressing this button at the end of The seven-pin trailer connector isElectric Brake Control Wiringthe shift lever turns on and off the mounted in the bumper. This Provisions Tow/Haul Mode. connector can be plugged into a seven-pin universal heavy-dutyThese wiring provisions are trailer connector available throughincluded with the vehicle as part of your dealer. the trailer wiring package. These The seven-wire harness containsprovisions are for an electric brake the following trailer circuits:controller. . Yellow: Left Stop/Turn SignalThe harness should be installed by your dealer or a qualified serviceThis indicator light on the instrument . Green/Violet: Right Stop/Turncenter. cluster comes on when the Tow/ Signal Haul Mode is on. . Brown: Taillamps
