text version of content this owner's manual page from owners manual to the vehicle Chevrolet S-10, year of production 2001 - 2004:

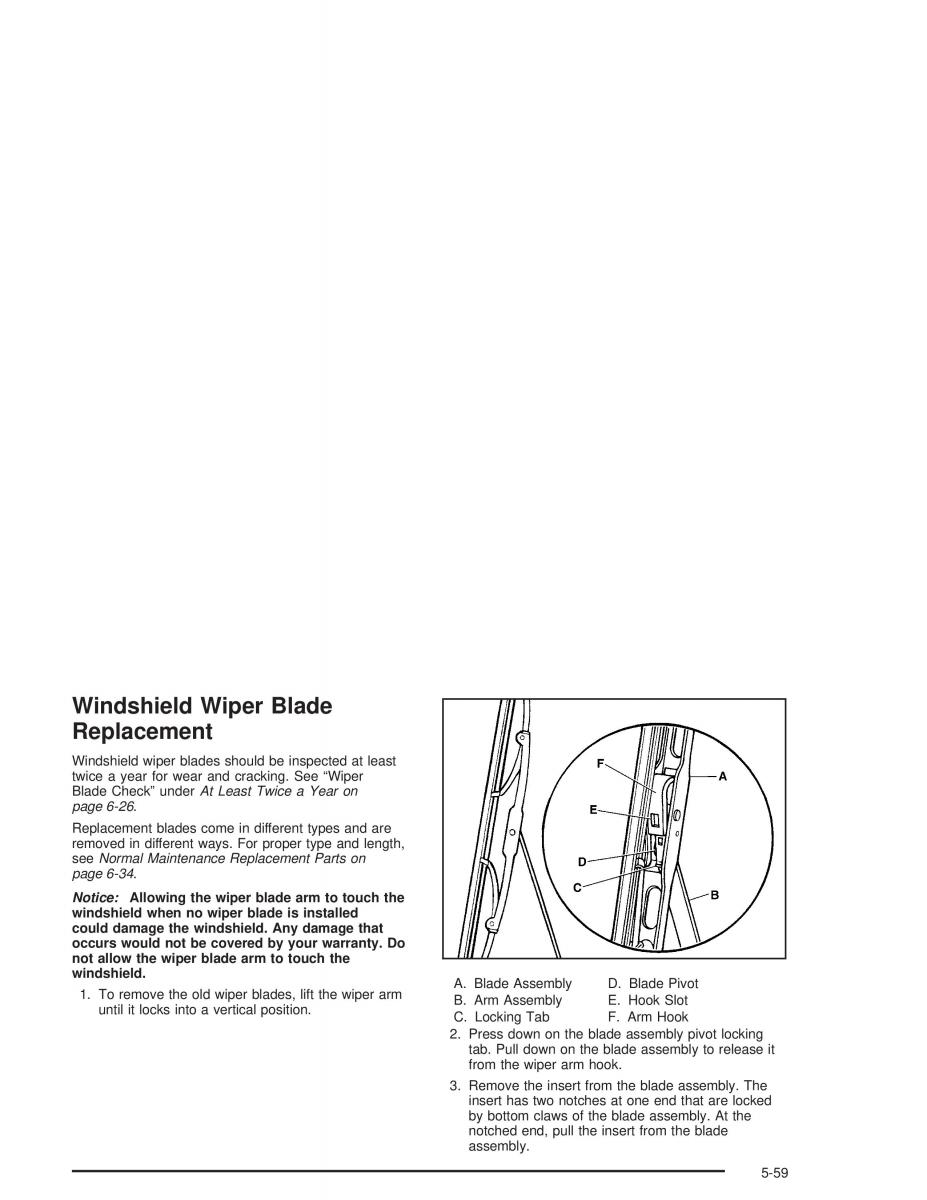

Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear and cracking. See “Wiper Blade Check” under At Least Twice a Year on page6-26. Replacement blades come in different types and are removed in different ways. For proper type and length, see Normal Maintenance Replacement Parts on page6-34. Notice: Allowing the wiper blade arm to touch the windshield when no wiper blade is installed could damage the windshield. Any damage that occurs would not be covered by your warranty. Do not allow the wiper blade arm to touch the windshield. A. Blade AssemblyD. Blade Pivot 1. To remove the old wiper blades, lift the wiper armB. Arm AssemblyE. Hook Slot until it locks into a vertical position.C. Locking TabF. Arm Hook 2. Press down on the blade assembly pivot locking tab. Pull down on the blade assembly to release it from the wiper arm hook. 3. Remove the insert from the blade assembly. The insert has two notches at one end that are locked by bottom claws of the blade assembly. At the notched end, pull the insert from the blade assembly. 5-59
