text version of content this owner's manual page from owners manual to the vehicle Chevrolet S-10, year of production 2001 - 2004:

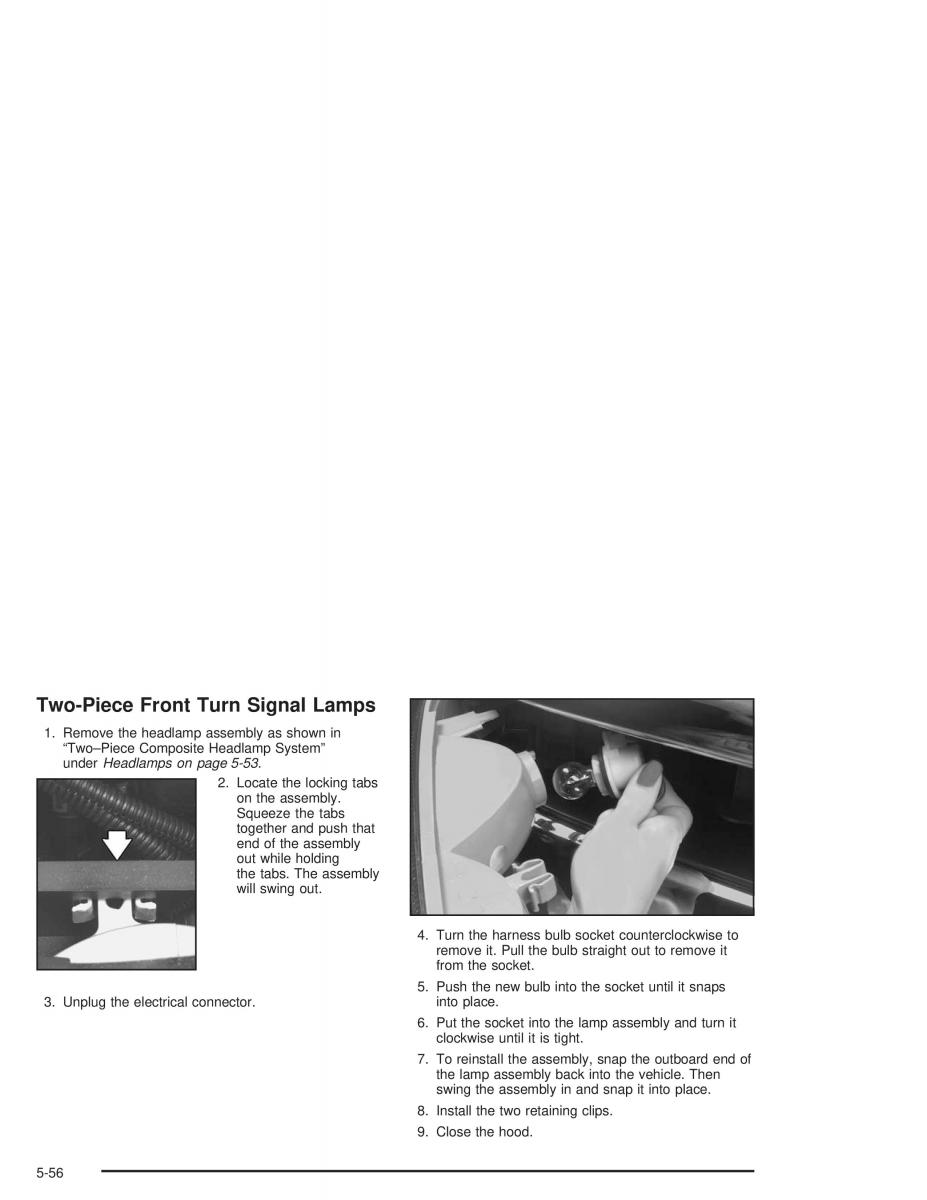

Two-Piece Front Turn Signal Lamps 1. Remove the headlamp assembly as shown in “Two–Piece Composite Headlamp System” under Headlamps on page 5-53. 2. Locate the locking tabs on the assembly. Squeeze the tabs together and push that end of the assembly out while holding the tabs. The assembly will swing out. 4. Turn the harness bulb socket counterclockwise to remove it. Pull the bulb straight out to remove it from the socket. 5. Push the new bulb into the socket until it snaps 3. Unplug the electrical connector. into place. 6. Put the socket into the lamp assembly and turn it clockwise until it is tight. 7. To reinstall the assembly, snap the outboard end of the lamp assembly back into the vehicle. Then swing the assembly in and snap it into place. 8. Install the two retaining clips. 9. Close the hood. 5-56
