text version of content this owner's manual page from owners manual to the vehicle Mazda 2, year of production 2014:

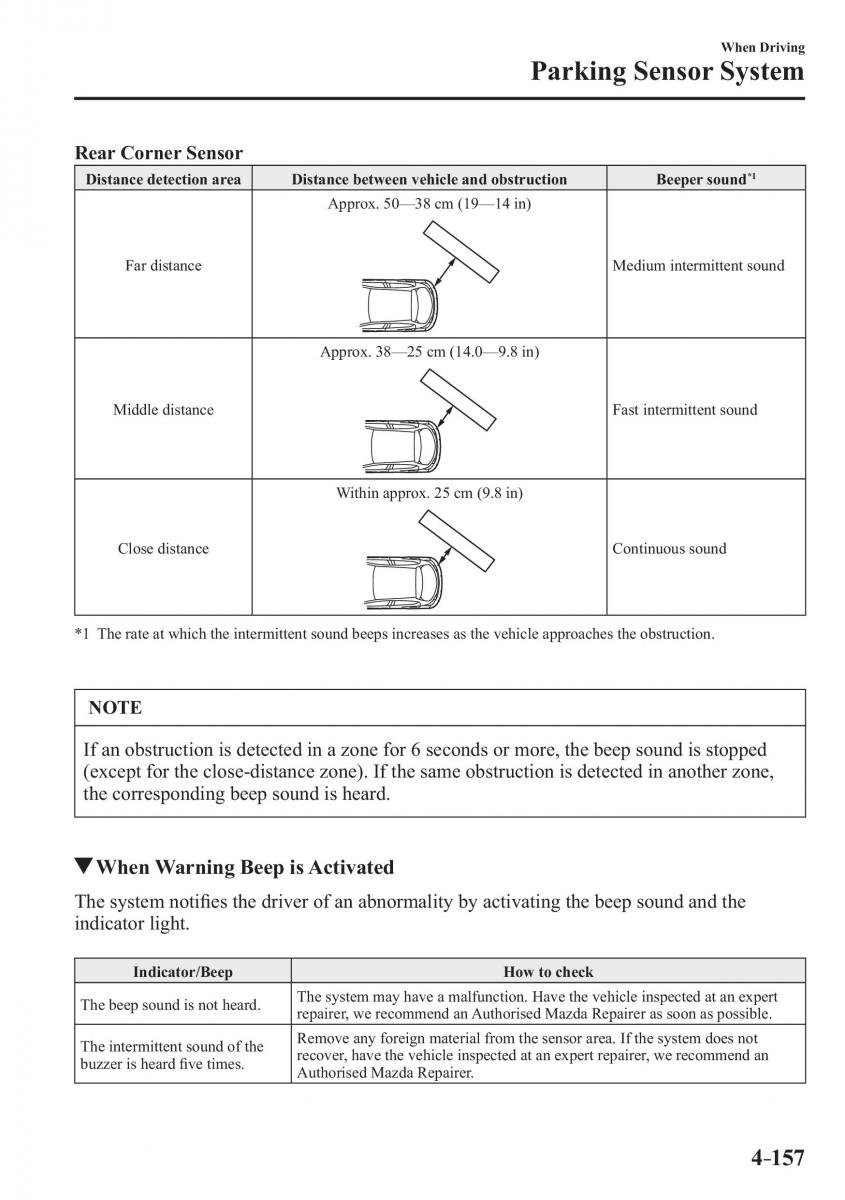

When Driving
Parking Sensor System
Rear Corner Sensor
*1
Distance detection area Distance between vehicle and obstruction Beeper sound
Approx. 50—38 cm (19—14 in)
Far distance Medium intermittent sound
Approx. 38—25 cm (14.0—9.8 in)
Middle distance Fast intermittent sound
Within approx. 25 cm (9.8 in)
Close distance Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
NOTE
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone,
the corresponding beep sound is heard.
When Warning Beep is Activated
system notifi The es the driver of an abnormality by activating the beep sound and the
indicator light.
Indicator/Beep How to check
The beep sound is not heard. The system may have a malfunction. Have the vehicle inspected at an expert
repairer, we recommend an Authorised Mazda Repairer as soon as possible.
The intermittent sound of the Remove any foreign material from the sensor area. If the system does not
buzzer is heard fi ve times. recover, have the vehicle inspected at an expert repairer, we recommend an
Authorised Mazda Repairer.
4–157
