owners manual Mazda 2

owners manual Mazda 2 - year of production: 2014 - Mazda 2 Demio owners manual EN

Document: pdf (6.98 MB) 638 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Mazda 2, year of production 2014:

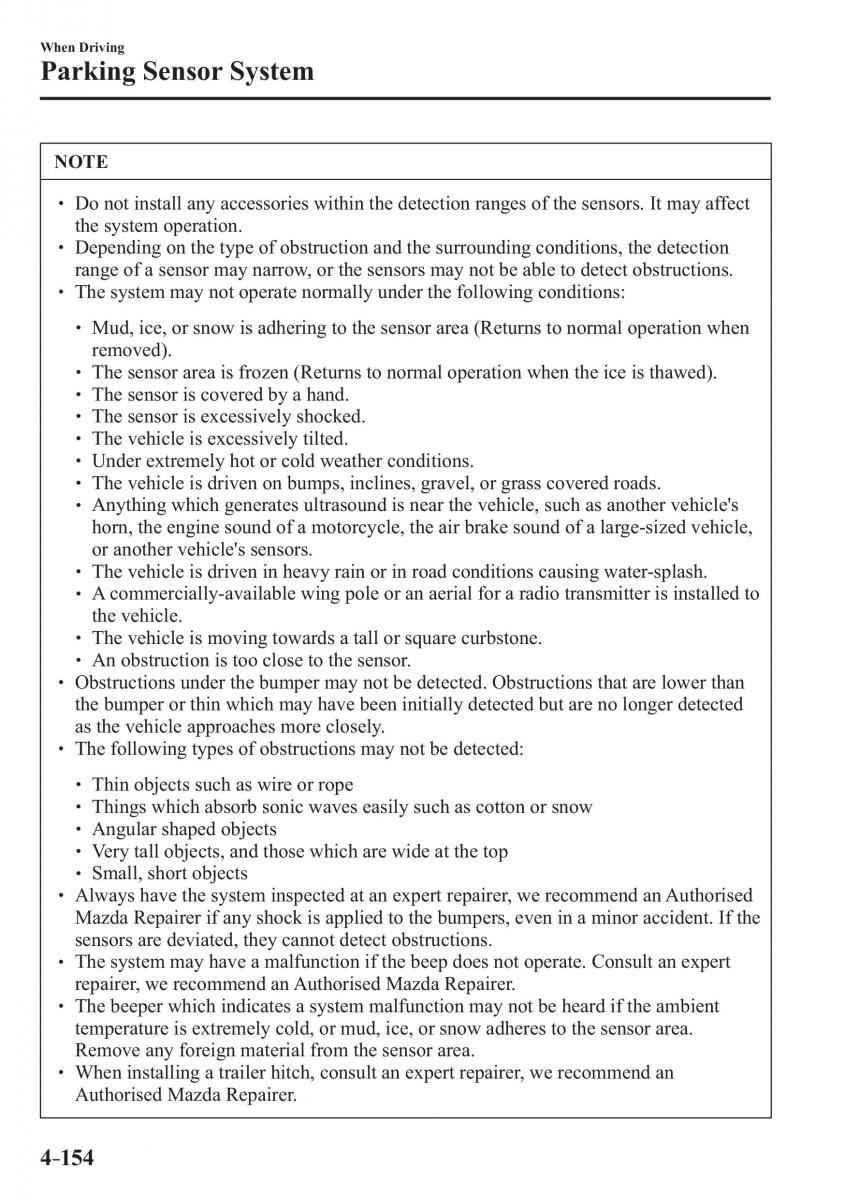

When Driving Parking Sensor System NOTE Do not install any accessories within the detection ranges of the sensors. It may affect the system operation. Depending on the type of obstruction and the surrounding conditions, the detection range of a sensor may narrow, or the sensors may not be able to detect obstructions. The system may not operate normally under the following conditions: Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when removed). The sensor area is frozen (Returns to normal operation when the ice is thawed). The sensor is covered by a hand. The sensor is excessively shocked. The vehicle is excessively tilted. Under extremely hot or cold weather conditions. The vehicle is driven on bumps, inclines, gravel, or grass covered roads. Anything which generates ultrasound is near the vehicle, such as another vehicle's horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or another vehicle's sensors. The vehicle is driven in heavy rain or in road conditions causing water-splash. A commercially-available wing pole or an aerial for a radio transmitter is installed to the vehicle. The vehicle is moving towards a tall or square curbstone. An obstruction is too close to the sensor. Obstructions under the bumper may not be detected. Obstructions that are lower than the bumper or thin which may have been initially detected but are no longer detected as the vehicle approaches more closely. The following types of obstructions may not be detected: Thin objects such as wire or rope Things which absorb sonic waves easily such as cotton or snow Angular shaped objects Very tall objects, and those which are wide at the top Small, short objects Always have the system inspected at an expert repairer, we recommend an Authorised Mazda Repairer if any shock is applied to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect obstructions. The system may have a malfunction if the beep does not operate. Consult an expert repairer, we recommend an Authorised Mazda Repairer. The beeper which indicates a system malfunction may not be heard if the ambient temperature is extremely cold, or mud, ice, or snow adheres to the sensor area. Remove any foreign material from the sensor area. When installing a trailer hitch, consult an expert repairer, we recommend an Authorised Mazda Repairer. 4–154 .B[EB@&$&&-@&EJUJPOJOEC

Download PDF

Click here to download a pdf file with an instruction manual for Mazda 2
year of production from: 2014

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Mazda 2 Demio owners manual
pages 294 - 300

Mazda 2 Demio owners manual
page 297 / 638
