text version of content this owner's manual page from owners manual to the vehicle Mazda 3, year of production 2003 - 2009:

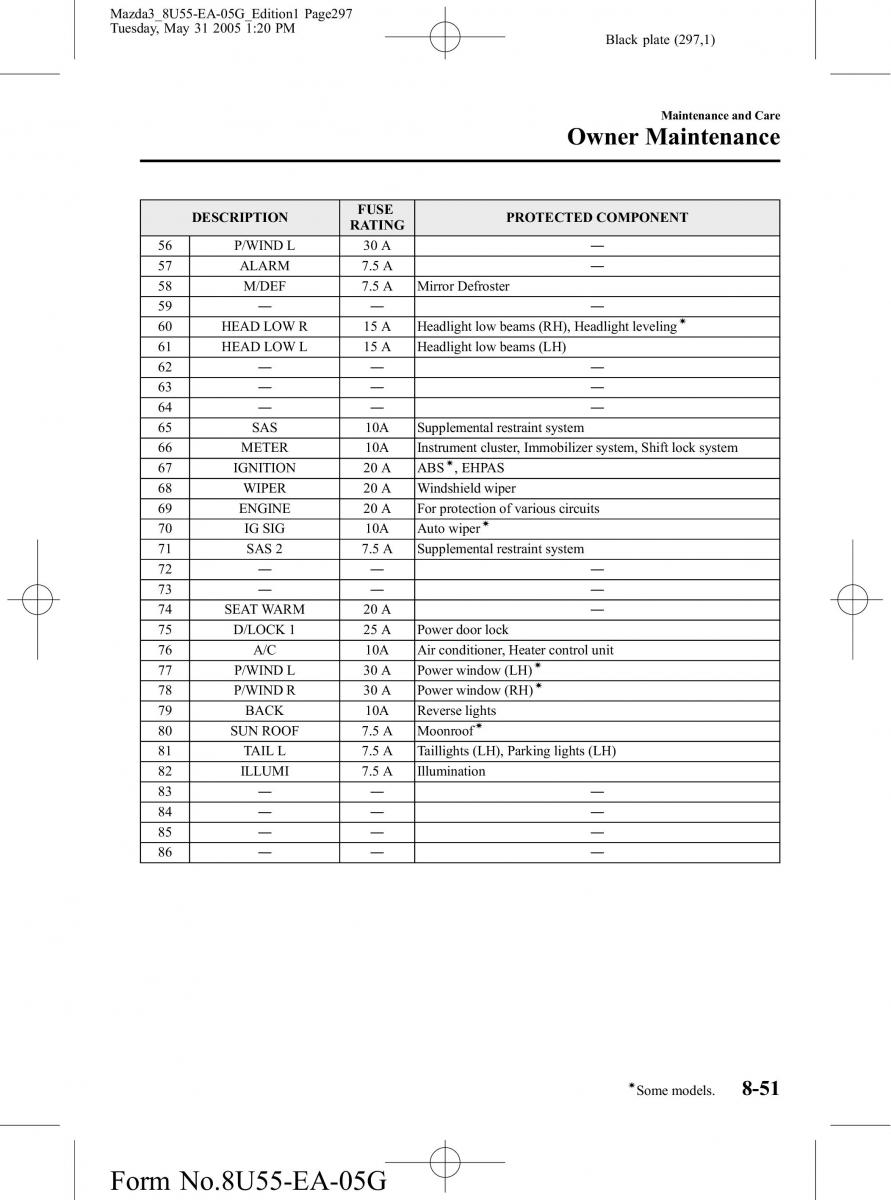

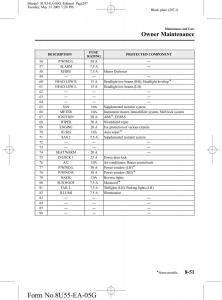

Mazda3_8U55-EA-05G_Edition1 Page297 Tuesday, May 31 2005 1:20 PM Black plate (297,1) Maintenance and Care OwnerMaintenance DESCRIPTION FUSE PROTECTEDCOMPONENT RATING 56 P/WINDL 30A ― 57 ALARM 7.5 A ― 58 M/DEF 7.5 A Mirror Defroster 59 ―― ― 60 HEADLOWR 15A Headlight low beams (RH), Headlight levelingí 61 HEADLOWL 15A Headlight low beams (LH) 62 ―― ― 63 ―― ― 64 ―― ― 65 SAS 10A Supplemental restraint system 66 METER 10A Instrument cluster, Immobilizer system, Shift lock system í 67 IGNITION 20A ABS ,EHPAS 68 WIPER 20A Windshield wiper 69 ENGINE 20A For protection of various circuits 70 IGSIG 10A Autowiperí 71 SAS2 7.5 A Supplemental restraint system 72 ―― ― 73 ―― ― 74 SEATWARM 20A ― 75 D/LOCK1 25A Powerdoorlock 76 A/C 10A Air conditioner, Heater control unit 77 P/WINDL 30A Powerwindow(LH)í 78 P/WINDR 30A Powerwindow(RH)í 79 BACK 10A Reverse lights 80 SUNROOF 7.5 A Moonroofí 81 TAILL 7.5 A Taillights (LH), Parking lights (LH) 82 ILLUMI 7.5 A Illumination 83 ―― ― 84 ―― ― 85 ―― ― 86 ―― ― í Somemodels. 8-51 Form No.8U55-EA-05G
