text version of content this owner's manual page from owners manual to the vehicle Mazda 3, year of production 2003 - 2009:

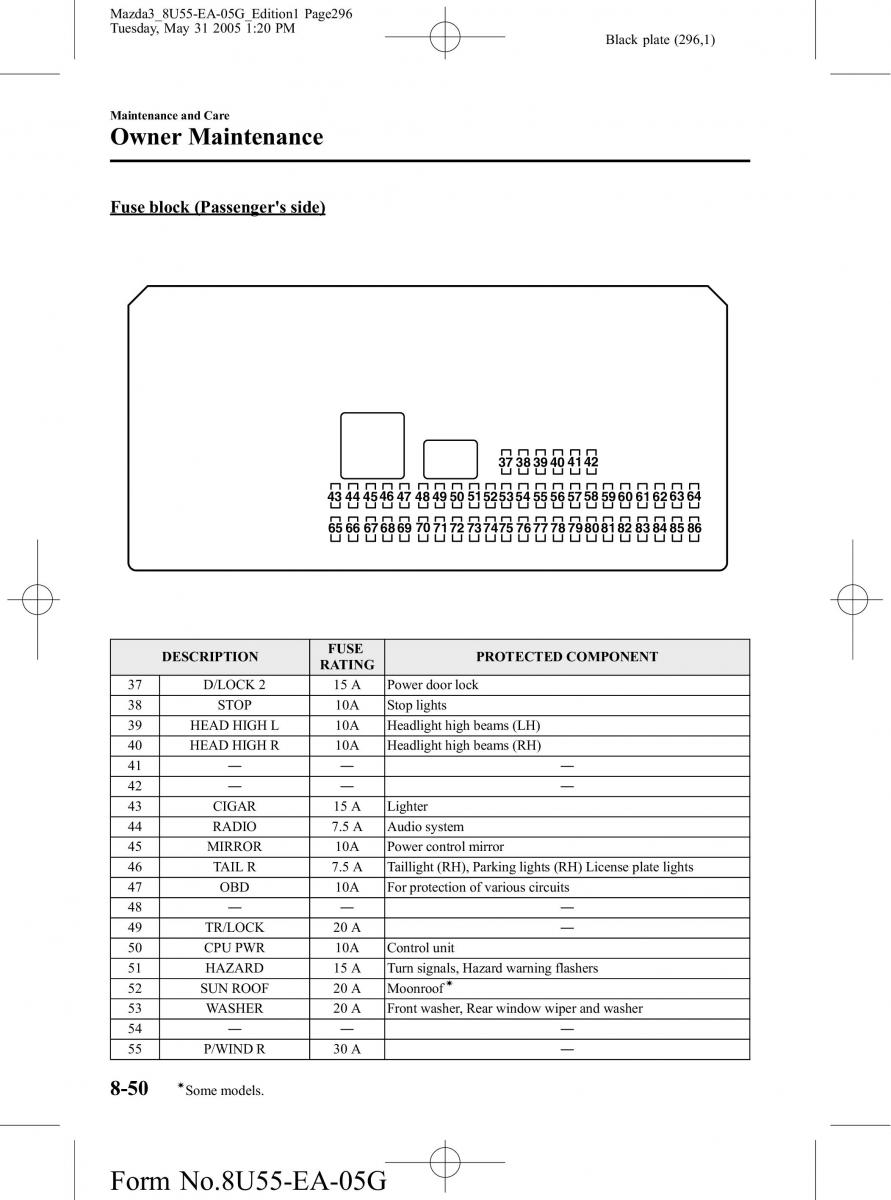

Mazda3_8U55-EA-05G_Edition1 Page296 Tuesday, May 31 2005 1:20 PM Black plate (296,1) MaintenanceandCare OwnerMaintenance Fuse block (Passenger's side) 373839404142 43444546474849505152535455565758596061626364 65666768697071727374757677787980818283848586 DESCRIPTION FUSE PROTECTEDCOMPONENT RATING 37 D/LOCK2 15A Powerdoorlock 38 STOP 10A Stop lights 39 HEADHIGHL 10A Headlight high beams (LH) 40 HEADHIGHR 10A Headlight high beams (RH) 41 ―― ― 42 ―― ― 43 CIGAR 15A Lighter 44 RADIO 7.5 A Audiosystem 45 MIRROR 10A Powercontrol mirror 46 TAILR 7.5 A Taillight (RH), Parking lights (RH) License plate lights 47 OBD 10A For protection of various circuits 48 ―― ― 49 TR/LOCK 20A ― 50 CPUPWR 10A Control unit 51 HAZARD 15A Turn signals, Hazard warning flashers 52 SUNROOF 20A Moonroofí 53 WASHER 20A Front washer, Rear window wiper and washer 54 ―― ― 55 P/WINDR 30A ― í 8-50 Somemodels. Form No.8U55-EA-05G
