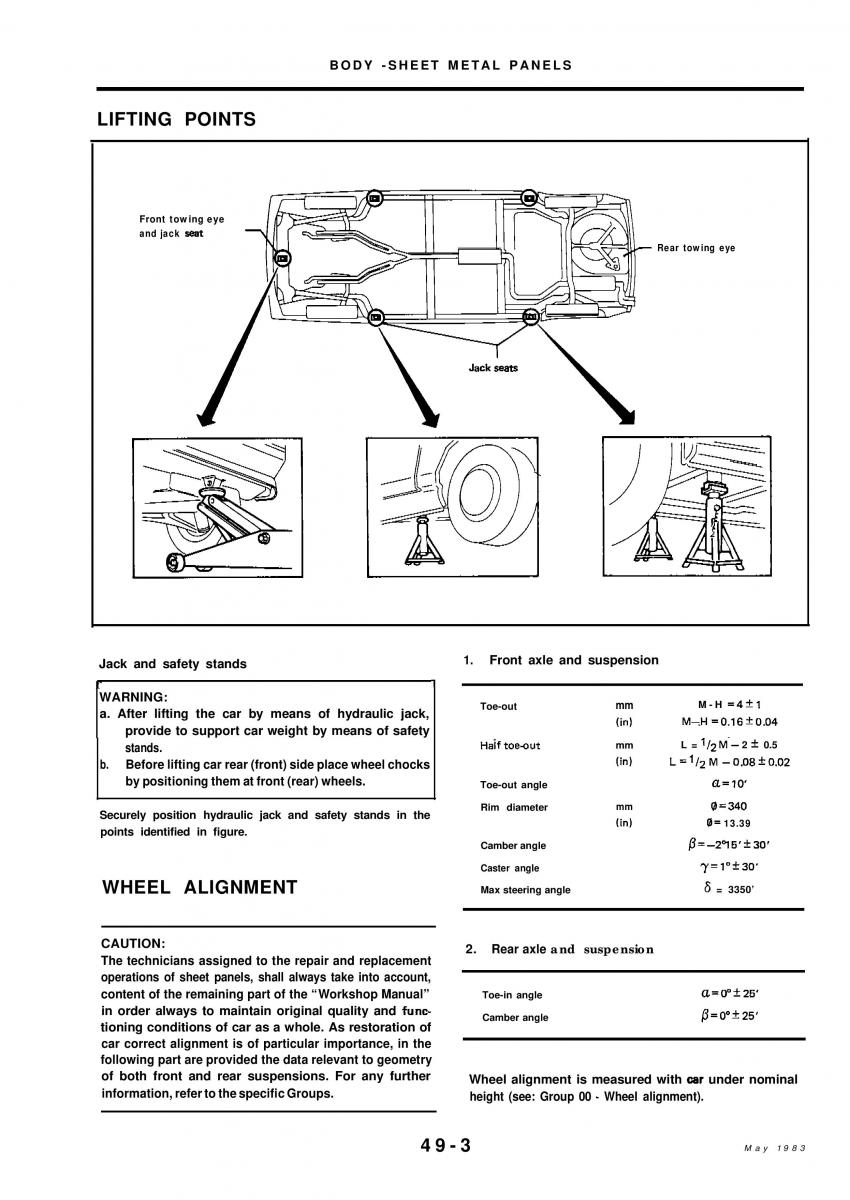

BODY -SHEET METAL PANELS LIFTING POINTS Front towing eye and jack seat Rear towing eye Jack and safety stands 1. Front axle and suspension r WARNING: Toe-out mm M-H =4+1 a. After lifting the car by means of hydraulic jack, provide to support car weight by means of safety (in) M-.H =0.16*0.04 stands. Haif toe-zlut mm L = ‘12 lv-- 2 f 0.5 b. Before lifting car rear (front) side place wheel chocks (in) L=1/2M -0.08f0.02 by positioning them at front (rear) wheels. Toe-out angle a=lof Rim diameter mm 0=340 Securely position hydraulic jack and safety stands in the points identified in figure. (in) 0= 13.39 Camber angle fl=-295’f30’ Caster angle y= l”f30’ WHEEL ALIGNMENT Max steering angle 6 = 3350’ CAUTION: 2. Rear axle and suspension The technicians assigned to the repair and replacement operations of sheet panels, shall always take into account, content of the remaining part of the “Workshop Manual”Toe-in angle U=O”+25’ in order always to maintain original quality andfunc- p=O”+25’ Camber angle tioning conditions of car as a whole. As restoration of car correct alignment is of particular importance, in the following part are provided the data relevant to geometry of both front and rear suspensions. For any further Wheel alignment is measured withcBr under nominal information, refer to the specific Groups. height (see: Group 00- Wheel alignment). 49-3 May 1983
