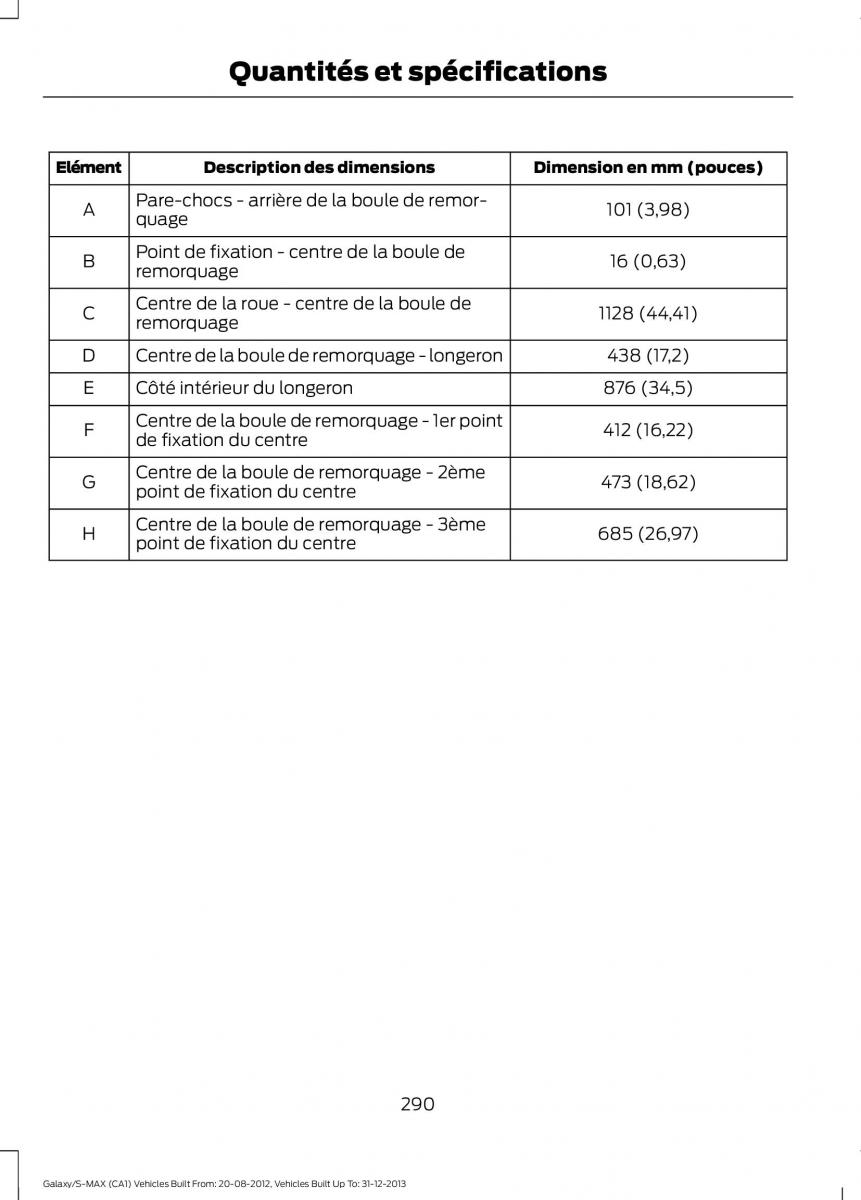

Quantités et spécifications
Elément Description des dimensions Dimension en mm (pouces)
A Pare-chocs - arrière de la boule de remor- 101 (3,98)
quage
B Point de fixation - centre de la boule de 16 (0,63)
remorquage
C Centre de la roue - centre de la boule de 1128 (44,41)
remorquage
D Centre de l a boul e de r emorquage - l ongeron 438 (17,2)
E Côté intérieur du longeron 876 (34,5)
F Centre de la boule de remorquage - 1er point 412 (16,22)
de fixation du centre
G Centre de la boule de remorquage - 2ème 473 (18,62)
point de fixation du centre
H Centre de la boule de remorquage - 3ème 685 (26,97)
point de fixation du centre
290
Galaxy/S-MAX (CA1) Vehicles Built From: 20-08-2012, Vehicles Built Up To: 31-12-2013
