text version of content this owner's manual page from owners manual to the vehicle Ford S-Max, year of production 2006 - 2015:

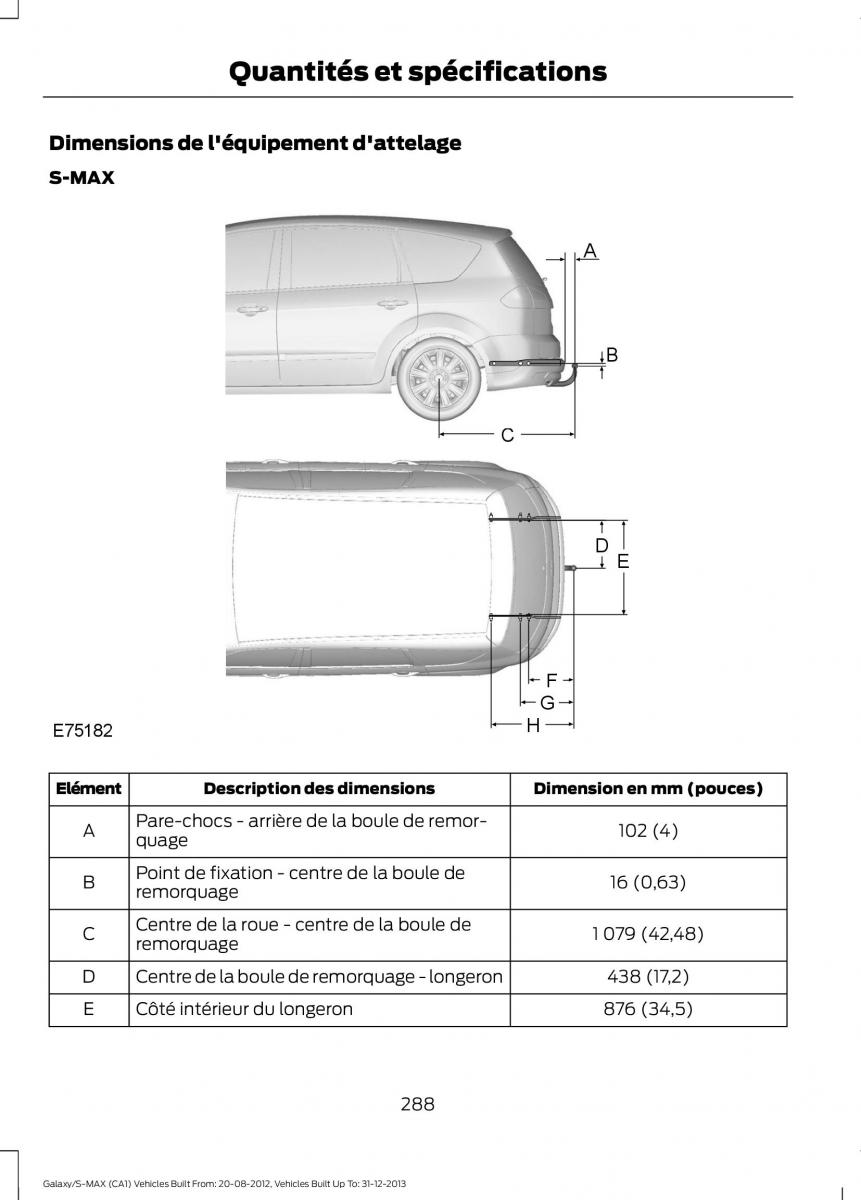

Quantités et spécifications Dimensions de l'équipement d'attelage S-MAX Elément Description des dimensions Dimension en mm (pouces) A Pare-chocs - arrière de la boule de remor- 102 (4) quage B Point de fixation - centre de la boule de 16 (0,63) remorquage C Centre de la roue - centre de la boule de 1 079 (42,48) remorquage D Centre de l a boul e de r emorquage - l ongeron 438 (17,2) E Côté intérieur du longeron 876 (34,5) 288 Galaxy/S-MAX (CA1) Vehicles Built From: 20-08-2012, Vehicles Built Up To: 31-12-2013
