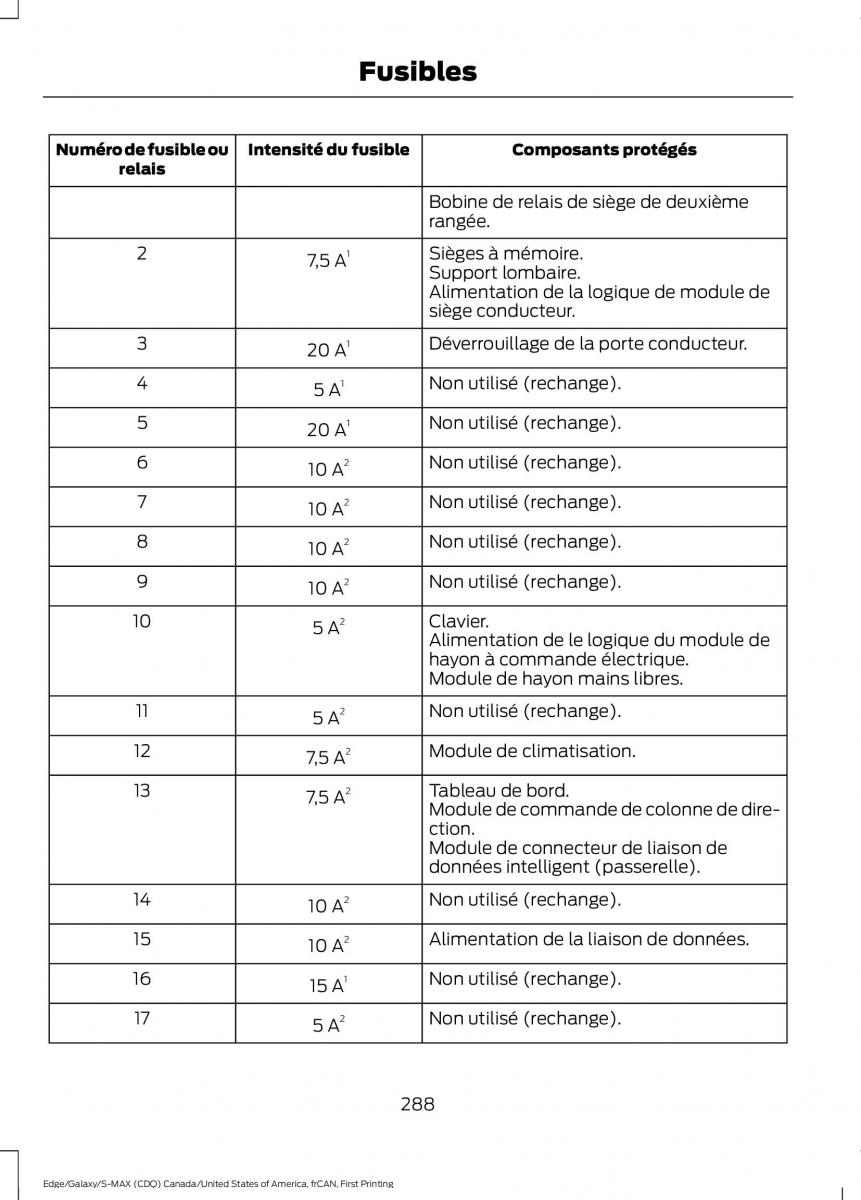

Fusibles
Numéro de fusible ou Intensité du fusible Composants protégés
relais
Bobine de relais de siège de deuxième
rangée.
2 1 Sièges à mémoire.
7,5 A Support lombaire.
Alimentation de la logique de module de
siège conducteur.
3 1 Déverrouillage de la porte conducteur.
20 A
4 5 A1 Non utilisé (rechange).
5 1 Non utilisé (rechange).
20 A
6 10 A2 Non utilisé (rechange).
7 10 A2 Non utilisé (rechange).
8 10 A2 Non utilisé (rechange).
9 10 A2 Non utilisé (rechange).
10 2 Clavier.
5 A Alimentation de le logique du module de
hayon à commande électrique.
Module de hayon mains libres.
11 2 Non utilisé (rechange).
5 A
12 7,5 A2 Module de climatisation.
13 7,5 A2 Tableau de bord.
Module de commande de colonne de dire-
ction.
Module de connecteur de liaison de
données intelligent (passerelle).
14 10 A2 Non utilisé (rechange).
15 10 A2 Alimentation de la liaison de données.
16 15 A1 Non utilisé (rechange).
17 2 Non utilisé (rechange).
5 A
288
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, frCAN, First Printing
