owners manual Seat Leon

all ratings: 0 average rating: 5

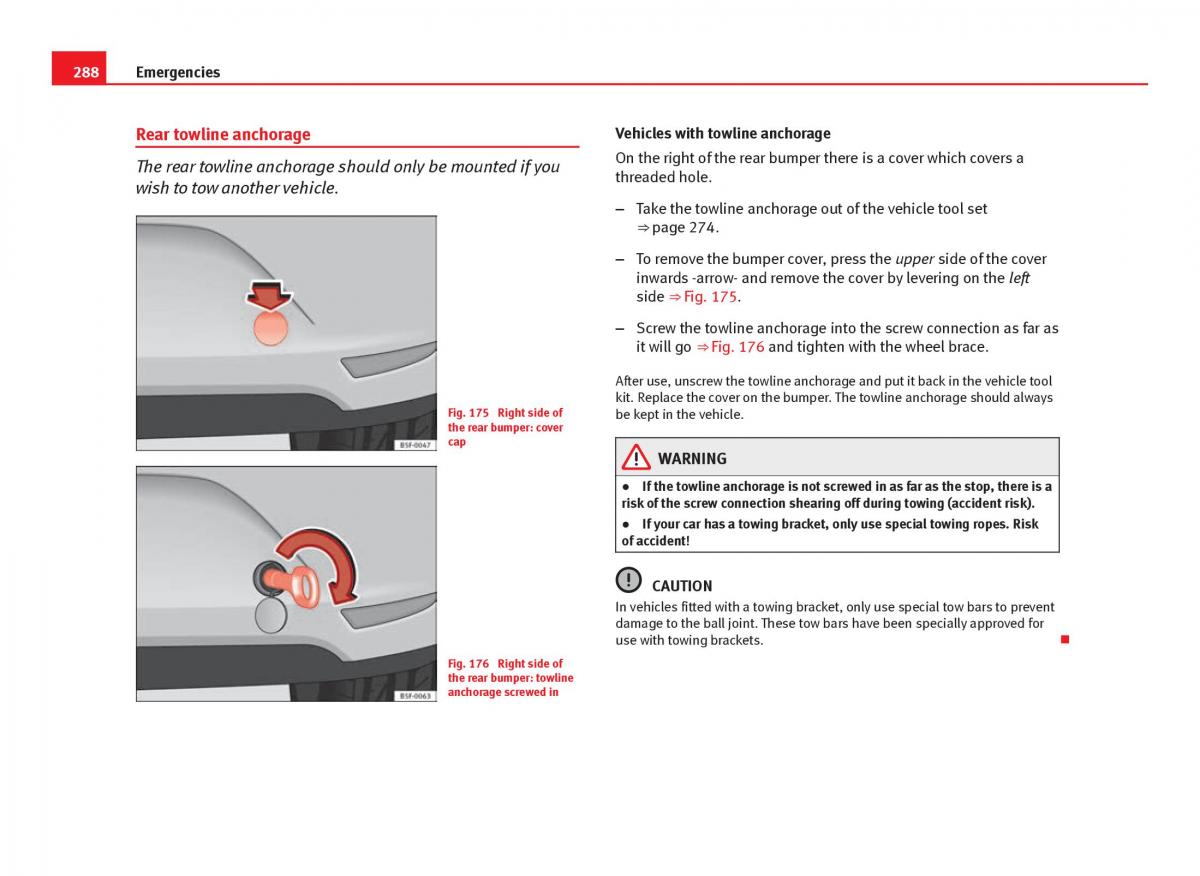

288 Emergencies Rear towline anchorage Vehicles with towline anchorage On the right of the rear bumper there is a cover which covers a The rear towline anchorage should only be mounted if you threaded hole. wish to tow another vehicle. – Take the towline anchorage out of the vehicle tool set ⇒ page 274. – To remove the bumper cover, press the upper side of the cover inwards -arrow- and remove the cover by levering on the left side ⇒ Fig. 175. – Screw the towline anchorage into the screw connection as far as it will go ⇒ Fig. 176 and tighten with the wheel brace. After use, unscrew the towline anchorage and put it back in the vehicle tool kit. Replace the cover on the bumper. The towline anchorage should always Fig. 175 Right side of be kept in the vehicle. the rear bumper: cover cap WARNING ● If the towline anchorage is not screwed in as far as the stop, there is a risk of the screw connection shearing off during towing (accident risk). ● If your car has a towing bracket, only use special towing ropes. Risk of accident! CAUTION In vehicles fitted with a towing bracket, only use special tow bars to prevent damage to the ball joint. These tow bars have been specially approved for  use with towing brackets. Fig. 176 Right side of the rear bumper: towline anchorage screwed in
