text version of content this owner's manual page from owners manual to the vehicle Subaru Outback, year of production 2000 - 2004:

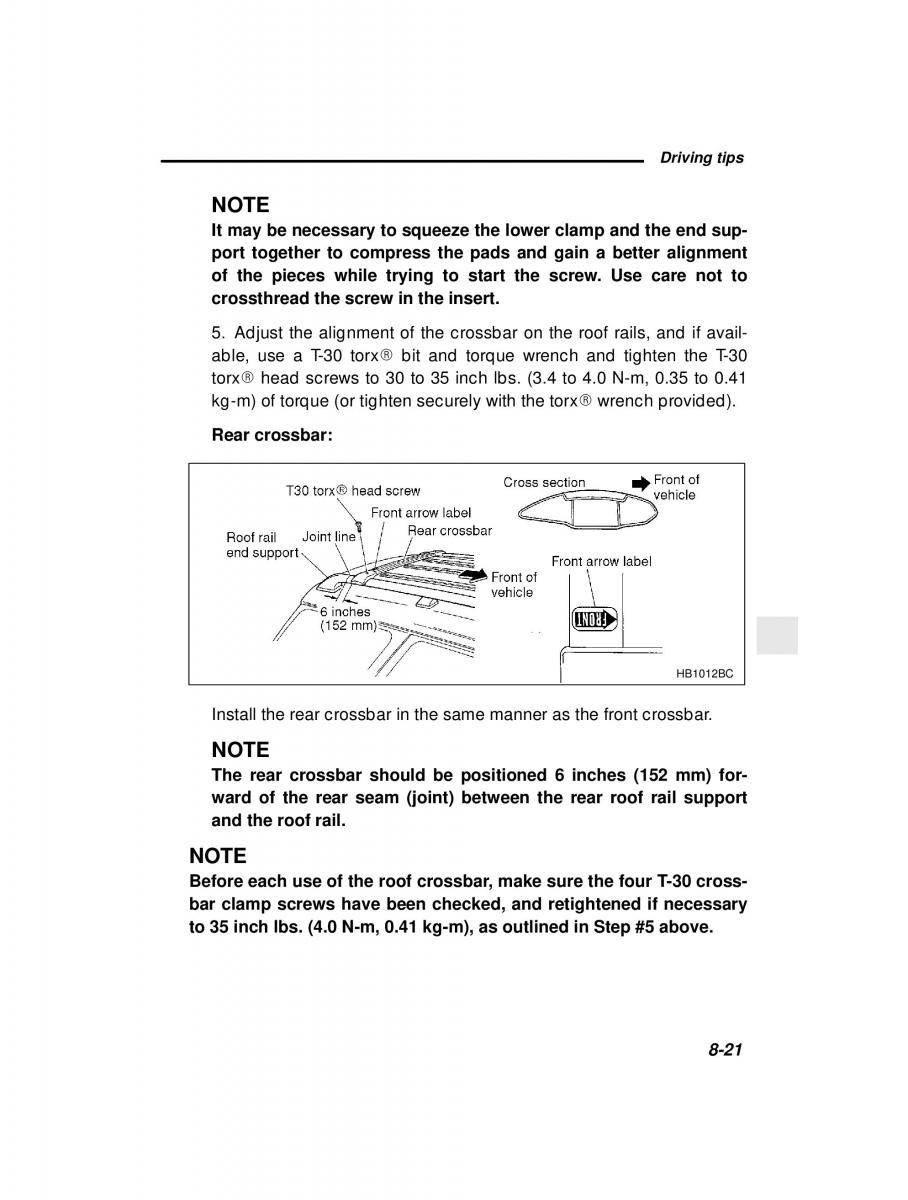

Driving tips NOTE It may be necessary to squeeze the lower clamp and the end sup- port together to compress the pads and gain a better alignment of the pieces while trying to start the screw. Use care not to crossthread the screw in the insert. 5. Adjust the alignment of the crossbar on the roof rails, and if avail- able, use a T-30 torx bit and torque wrench and tighten the T-30 torx head screws to 30 to 35 inch lbs. (3.4 to 4.0 N-m, 0.35 to 0.41 kg-m) of torque (or tighten securely with the torx wrench provided). Rear crossbar: HB1012BC Install the rear crossbar in the same manner as the front crossbar. NOTE The rear crossbar should be positioned 6 inches (152 mm) for- ward of the rear seam (joint) between the rear roof rail support and the roof rail. NOTE Before each use of the roof crossbar, make sure the four T-30 cross- bar clamp screws have been checked, and retightened if necessary to 35 inch lbs. (4.0 N-m, 0.41 kg-m), as outlined in Step #5 above. – CONTINUED – 8-21
