text version of content this owner's manual page from owners manual to the vehicle Subaru Outback, year of production 2000 - 2004:

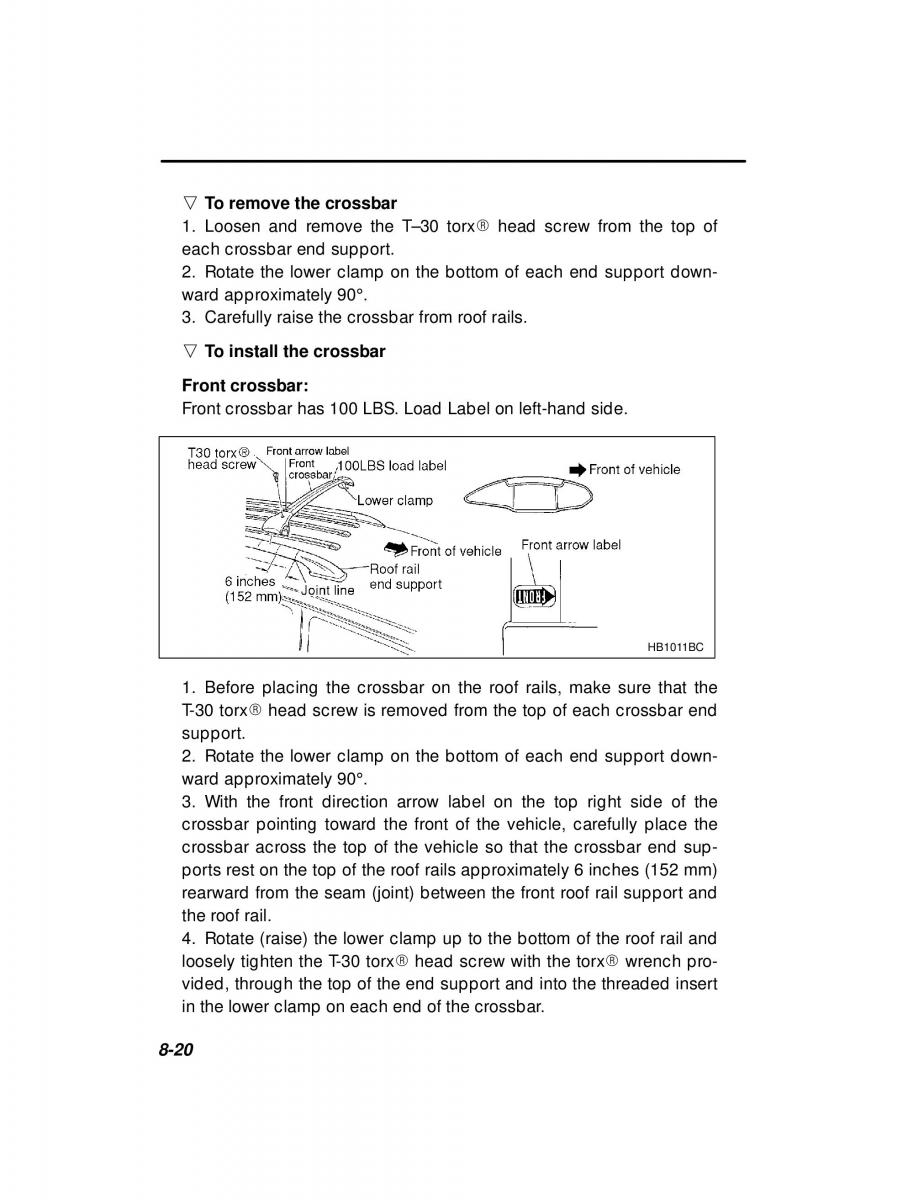

nTo remove the crossbar 1. Loosen and remove the T–30 torx head screw from the top of each crossbar end support. 2. Rotate the lower clamp on the bottom of each end support down- ward approximately 90°. 3. Carefully raise the crossbar from roof rails. nTo install the crossbar Front crossbar: Front crossbar has 100 LBS. Load Label on left-hand side. HB1011BC 1. Before placing the crossbar on the roof rails, make sure that the T-30 torx head screw is removed from the top of each crossbar end support. 2. Rotate the lower clamp on the bottom of each end support down- ward approximately 90°. 3. With the front direction arrow label on the top right side of the crossbar pointing toward the front of the vehicle, carefully place the crossbar across the top of the vehicle so that the crossbar end sup- ports rest on the top of the roof rails approximately 6 inches (152 mm) rearward from the seam (joint) between the front roof rail support and the roof rail. 4. Rotate (raise) the lower clamp up to the bottom of the roof rail and loosely tighten the T-30 torx head screw with the torx wrench pro- vided, through the top of the end support and into the threaded insert in the lower clamp on each end of the crossbar. 8-20
