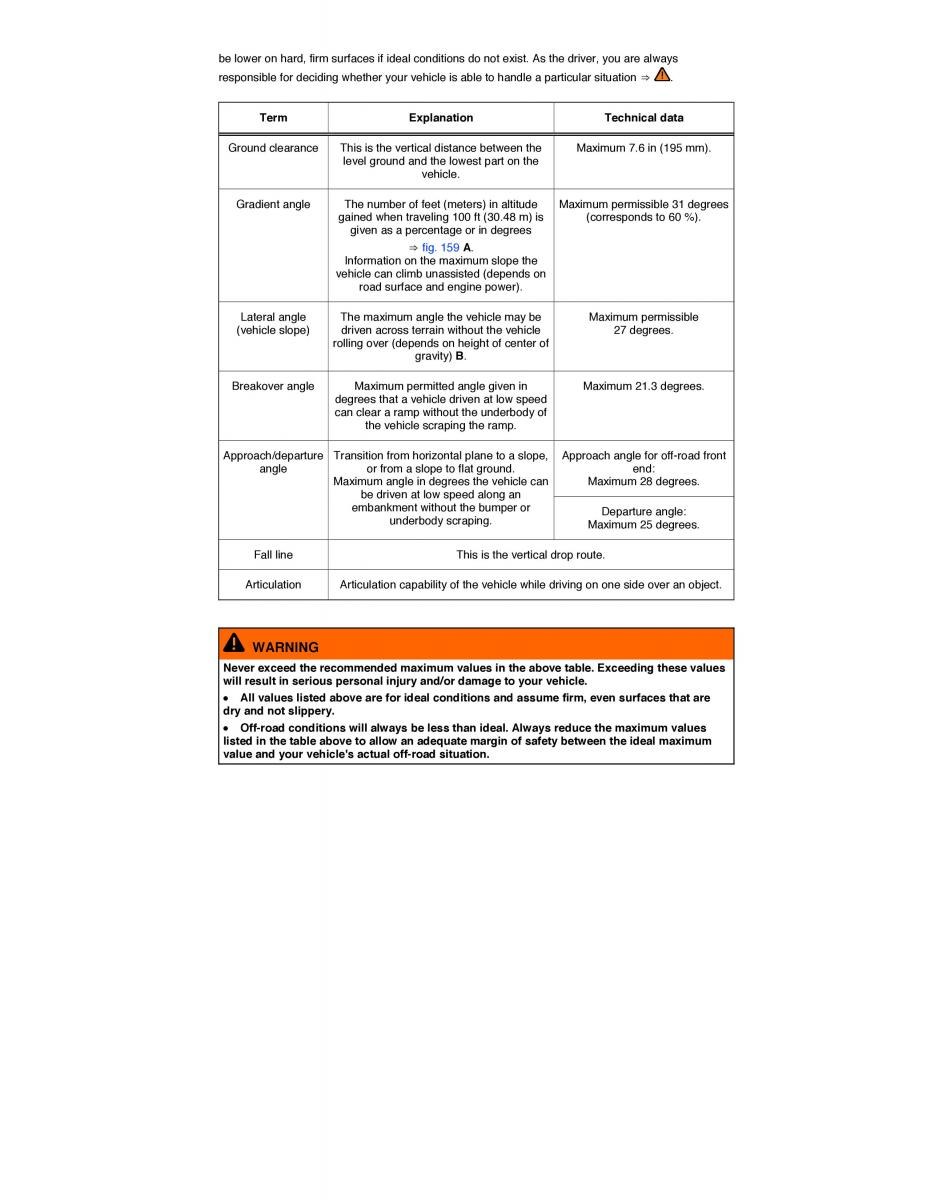

be lower on hard, firm surfaces if ideal conditions do not exist. As the driver, you are always responsible for deciding whether your vehicle is able to handle a particular situation ⇒ . Term Explanation Technical data Ground clearance This is the vertical distance between the Maximum 7.6 in (195 mm). level ground and the lowest part on the vehicle. Gradient angle The number of feet (meters) in altitude Maximum permissible 31 degrees gained when traveling 100 ft (30.48 m) is (corresponds to 60 %). given as a percentage or in degrees ⇒ fig. 159 A. Information on the maximum slope the vehicle can climb unassisted (depends on road surface and engine power). Lateral angle The maximum angle the vehicle may be Maximum permissible (vehicle slope) driven across terrain without the vehicle 27 degrees. rolling over (depends on height of center of gravity) B. Breakover angle Maximum permitted angle given in Maximum 21.3 degrees. degrees that a vehicle driven at low speed can clear a ramp without the underbody of the vehicle scraping the ramp. Approach/departure Transition from horizontal plane to a slope, Approach angle for off-road front angle or from a slope to flat ground. end: Maximum angle in degrees the vehicle can Maximum 28 degrees. be driven at low speed along an embankment without the bumper or Departure angle: underbody scraping. Maximum 25 degrees. Fall line This is the vertical drop route. Articulation Articulation capability of the vehicle while driving on one side over an object. WARNING Never exceed the recommended maximum values in the above table. Exceeding these values will result in serious personal injury and/or damage to your vehicle. x All values listed above are for ideal condions ti and assume firm, even surfaces that are dry and not slippery. x Off-road conditions will always be less tan hideal. Always reduce the maximum values listed in the table above to allow an adequate margin of safety between the ideal maximum value and your vehicle's actual off-road situation.
